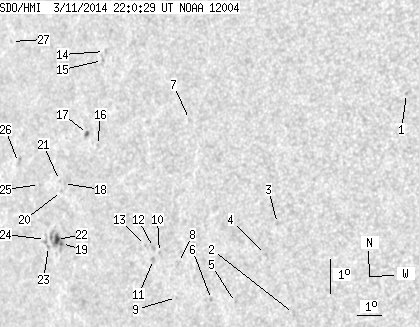

SDO HMI 2014-03-11 22:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.72 | 50.87 | 4.47 | 38.36 | -9.10 | 299.50 | -49.23 | 95.86 | 0.7529 | 138.8 | -0.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-11 22:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.59 | -6.41 | 312.30 | -36.44 | 90.98 | 0.5926 | 754.0 | 635.6 | |
| 0.00 | 2.25 | 0.00 | 1.49 | -12.58 | 307.03 | -41.71 | 100.85 | 0.6635 | 600.0 | 502.3 | |
| 0.00 | 1.39 | 0.00 | 0.92 | -9.87 | 306.86 | -41.87 | 96.74 | 0.6645 | 415.0 | 334.0 | |
| 0.00 | 1.13 | 0.00 | 0.75 | -10.74 | 306.22 | -42.51 | 98.04 | 0.6728 | 634.0 | 528.7 | |
| 0.00 | 0.87 | 0.00 | 0.59 | -12.06 | 304.72 | -44.02 | 99.91 | 0.6922 | 644.0 | 514.1 | |
| 0.00 | 1.47 | 0.00 | 1.03 | -11.88 | 303.72 | -45.01 | 99.61 | 0.7043 | 616.0 | 536.1 | |
| 0.00 | 0.69 | 0.00 | 0.48 | -6.47 | 303.67 | -45.07 | 91.92 | 0.7062 | 70.0 | 174.2 | |
| 0.00 | 2.60 | 0.00 | 1.85 | -10.66 | 302.54 | -46.20 | 97.86 | 0.7184 | 608.0 | 486.2 | |
| 0.00 | 0.78 | 0.00 | 0.56 | -11.69 | 302.23 | -46.50 | 99.28 | 0.7221 | 453.0 | 376.8 | |
| 0.00 | 0.95 | 0.00 | 0.69 | -10.29 | 301.77 | -46.97 | 97.34 | 0.7275 | 497.0 | 425.5 | |
| 0.00 | 2.17 | 0.00 | 1.57 | -10.47 | 301.46 | -47.27 | 97.60 | 0.7311 | 624.0 | 475.7 | |
| 0.00 | 2.43 | 0.00 | 1.75 | -10.12 | 301.54 | -47.20 | 97.11 | 0.7303 | 590.0 | 456.0 | |
| 0.00 | 0.69 | 0.00 | 0.50 | -10.02 | 301.19 | -47.54 | 96.99 | 0.7343 | 357.0 | 293.4 | |
| 0.00 | 0.52 | 0.00 | 0.39 | -4.11 | 300.17 | -48.56 | 89.09 | 0.7502 | 550.0 | 538.5 | |
| 0.00 | 1.21 | 0.00 | 0.91 | -4.37 | 300.06 | -48.68 | 89.45 | 0.7512 | 426.0 | 375.2 | |
| 0.00 | 1.21 | 0.00 | 0.91 | -6.87 | 299.54 | -49.19 | 92.82 | 0.7547 | 453.0 | 378.5 | |
| 1.13 | 2.51 | 0.86 | 1.91 | -6.47 | 299.13 | -49.60 | 92.33 | 0.7597 | 541.0 | 519.6 | |
| 0.00 | 0.69 | 0.00 | 0.54 | -7.84 | 297.79 | -50.95 | 94.22 | 0.7737 | -610.0 | -490.1 | |
| 0.78 | 15.61 | 0.61 | 12.30 | -9.60 | 297.35 | -51.38 | 96.52 | 0.7777 | -530.8 | -516.7 | |
| 0.00 | 1.21 | 0.00 | 0.95 | -8.06 | 297.65 | -51.08 | 94.52 | 0.7750 | -395.0 | -403.1 | |
| 0.00 | 0.26 | 0.00 | 0.20 | -7.73 | 297.62 | -51.12 | 94.09 | 0.7756 | -514.0 | -495.0 | |
| 3.81 | -19.00 | 3.00 | -19.00 | -9.46 | 297.14 | -51.60 | 96.34 | 0.7800 | -778.2 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.90 | -9.62 | 296.71 | -52.03 | 96.57 | 0.7846 | -77.0 | -141.1 | |
| 0.00 | 3.38 | 0.00 | 2.70 | -9.40 | 296.61 | -52.13 | 96.29 | 0.7858 | -324.0 | -238.7 | |
| 0.00 | 0.61 | 0.00 | 0.48 | -7.75 | 296.64 | -52.10 | 94.19 | 0.7862 | -167.0 | -215.9 | |
| 0.00 | 3.73 | 0.00 | 3.04 | -7.00 | 295.72 | -53.01 | 93.31 | 0.7964 | -530.0 | -450.0 | |
| 0.00 | 0.43 | 0.00 | 0.36 | -3.38 | 295.82 | -52.92 | 88.77 | 0.7988 | 471.0 | 489.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
