SDO HMI 2014-03-11 23:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 260.36 | 1126.38 | 144.58 | 625.68 | -18.90 | 323.56 | -24.62 | 118.72 | 0.4492 | 25.4 | -20.8 | |
|
previous
or next observation for the same group /

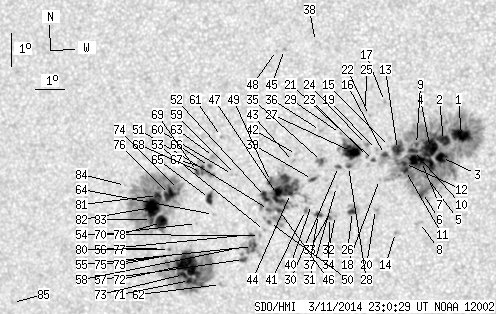

back to the solar disc SDO HMI 2014-03-11 23:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.16 | 443.68 | 10.17 | 237.26 | -17.49 | 329.31 | -18.87 | 120.89 | 0.3611 | 1302.5 | 385.3 | |
| 9.28 | -1.00 | 4.94 | -1.00 | -17.62 | 328.70 | -19.48 | 120.48 | 0.3705 | 1238.3 | 999999 | |
| 8.93 | -1.00 | 4.77 | -1.00 | -18.13 | 328.58 | -19.61 | 121.57 | 0.3760 | 1209.9 | 999999 | |
| 18.56 | -1.00 | 9.92 | -1.00 | -17.84 | 328.24 | -19.94 | 120.51 | 0.3785 | 1205.1 | 999999 | |
| 0.69 | -1.00 | 0.37 | -1.00 | -18.68 | 328.01 | -20.18 | 122.21 | 0.3879 | 711.0 | 999999 | |
| 3.99 | -1.00 | 2.15 | -1.00 | -19.16 | 327.81 | -20.37 | 123.07 | 0.3942 | -420.7 | 999999 | |
| 19.16 | -1.00 | 10.28 | -1.00 | -18.22 | 327.90 | -20.29 | 121.02 | 0.3860 | 1077.5 | 999999 | |
| 0.00 | 2.95 | 0.00 | 1.60 | -20.07 | 327.59 | -20.60 | 124.81 | 0.4042 | 783.0 | 585.4 | |
| 1.30 | -1.00 | 0.70 | -1.00 | -17.70 | 327.79 | -20.39 | 119.68 | 0.3838 | 945.0 | 999999 | |
| 3.64 | -1.00 | 1.95 | -1.00 | -17.88 | 327.67 | -20.51 | 119.97 | 0.3867 | 997.1 | 999999 | |
| 2.43 | -1.00 | 1.31 | -1.00 | -18.47 | 327.33 | -20.86 | 120.98 | 0.3956 | 614.2 | 999999 | |
| 2.08 | -1.00 | 1.12 | -1.00 | -18.26 | 327.32 | -20.86 | 120.48 | 0.3941 | 492.2 | 999999 | |
| 9.02 | -1.00 | 4.85 | -1.00 | -17.82 | 327.14 | -21.04 | 119.30 | 0.3937 | 882.1 | 999999 | |
| 0.00 | 1.65 | 0.00 | 0.90 | -20.34 | 326.73 | -21.45 | 124.41 | 0.4175 | 680.0 | 443.9 | |
| 0.00 | 1.65 | 0.00 | 0.89 | -17.72 | 326.89 | -21.30 | 118.80 | 0.3966 | 503.0 | 490.1 | |
| 1.91 | -1.00 | 1.03 | -1.00 | -17.95 | 326.69 | -21.50 | 119.15 | 0.4009 | 720.0 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -16.36 | 326.89 | -21.30 | 115.58 | 0.3881 | 818.0 | 672.2 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -18.70 | 326.42 | -21.76 | 120.56 | 0.4096 | -800.0 | -593.1 | |
| 0.00 | 1.47 | 0.00 | 0.80 | -17.79 | 326.44 | -21.74 | 118.53 | 0.4033 | 998.0 | 747.0 | |
| 0.00 | 1.30 | 0.00 | 0.71 | -19.61 | 326.16 | -22.03 | 122.26 | 0.4196 | -238.0 | -155.4 | |
| 0.69 | 1.73 | 0.38 | 0.94 | -18.12 | 326.30 | -21.89 | 119.14 | 0.4074 | 643.4 | 493.7 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -16.75 | 326.34 | -21.85 | 116.04 | 0.3983 | 741.0 | 665.8 | |
| 0.00 | 1.47 | 0.00 | 0.80 | -17.99 | 326.11 | -22.07 | 118.67 | 0.4091 | 592.0 | 524.2 | |
| 0.00 | 2.25 | 0.00 | 1.22 | -17.62 | 326.13 | -22.06 | 117.86 | 0.4066 | 697.0 | 579.0 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -16.60 | 326.22 | -21.96 | 115.57 | 0.3991 | 641.0 | 464.0 | |
| 2.77 | 9.71 | 1.52 | 5.32 | -19.63 | 325.37 | -22.82 | 121.52 | 0.4303 | -1037.3 | -577.3 | |
| 18.99 | 40.32 | 10.33 | 21.94 | -17.81 | 325.59 | -22.59 | 117.80 | 0.4152 | 976.3 | 122.8 | |
| 1.21 | -27.00 | 0.66 | -27.00 | -18.26 | 325.43 | -22.76 | 118.64 | 0.4203 | -853.6 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -17.25 | 325.30 | -22.89 | 116.28 | 0.4161 | -761.0 | -533.2 | |
| 0.95 | 2.43 | 0.52 | 1.33 | -18.24 | 325.09 | -23.09 | 118.30 | 0.4249 | 646.5 | 399.8 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -18.84 | 324.94 | -23.25 | 119.46 | 0.4309 | 416.0 | 228.9 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -19.72 | 324.77 | -23.42 | 121.14 | 0.4390 | -677.0 | -665.2 | |
| 0.00 | 1.56 | 0.00 | 0.86 | -19.59 | 324.61 | -23.57 | 120.74 | 0.4401 | -858.0 | -573.7 | |
| 0.61 | 1.99 | 0.33 | 1.10 | -19.77 | 324.55 | -23.63 | 121.05 | 0.4422 | -900.6 | -774.7 | |
| 1.56 | 7.11 | 0.86 | 3.90 | -18.06 | 324.54 | -23.65 | 117.44 | 0.4315 | 800.3 | 558.9 | |
| 0.00 | 1.13 | 0.00 | 0.62 | -17.13 | 324.63 | -23.55 | 115.47 | 0.4248 | 765.0 | 580.4 | |
| 2.17 | 3.82 | 1.20 | 2.11 | -19.66 | 324.19 | -24.00 | 120.50 | 0.4463 | -920.0 | -719.2 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -14.45 | 324.80 | -23.39 | 109.44 | 0.4094 | 695.0 | 527.6 | |
| 1.13 | 4.25 | 0.62 | 2.34 | -18.59 | 324.15 | -24.04 | 118.24 | 0.4401 | -929.9 | -667.0 | |
| 0.00 | 0.52 | 0.00 | 0.29 | -19.35 | 324.00 | -24.19 | 119.68 | 0.4469 | -187.0 | -168.3 | |
| 0.35 | 2.77 | 0.19 | 1.54 | -19.52 | 323.76 | -24.42 | 119.83 | 0.4511 | -892.2 | -750.2 | |
| 0.00 | 1.13 | 0.00 | 0.62 | -17.81 | 323.72 | -24.47 | 116.24 | 0.4415 | 332.0 | 389.8 | |
| 0.00 | 1.65 | 0.00 | 0.91 | -18.01 | 323.58 | -24.60 | 116.57 | 0.4445 | 687.0 | 548.9 | |
| 1.65 | 121.82 | 0.91 | 67.86 | -18.98 | 323.33 | -24.86 | 118.37 | 0.4537 | -1011.3 | -275.8 | |
| 0.00 | 1.65 | 0.00 | 0.90 | -14.63 | 323.73 | -24.45 | 109.24 | 0.4260 | 796.0 | 565.8 | |
| 2.17 | -44.00 | 1.21 | -44.00 | -19.47 | 322.86 | -25.32 | 118.99 | 0.4630 | -439.0 | 999999 | |
| 9.97 | -44.00 | 5.56 | -44.00 | -18.98 | 322.87 | -25.31 | 118.02 | 0.4599 | -926.8 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -14.65 | 323.46 | -24.73 | 109.12 | 0.4301 | 667.0 | 458.1 | |
| 2.34 | -44.00 | 1.30 | -44.00 | -18.58 | 322.70 | -25.49 | 117.06 | 0.4600 | 203.6 | 999999 | |
| 0.95 | -44.00 | 0.53 | -44.00 | -19.82 | 322.45 | -25.73 | 119.35 | 0.4706 | 963.3 | 999999 | |
| 1.21 | -44.00 | 0.68 | -44.00 | -19.42 | 322.49 | -25.70 | 118.60 | 0.4677 | 895.4 | 999999 | |
| 5.46 | -44.00 | 3.05 | -44.00 | -19.02 | 322.45 | -25.74 | 117.77 | 0.4659 | 1009.5 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -20.05 | 322.23 | -25.95 | 119.64 | 0.4749 | 784.0 | 643.7 | |
| 0.00 | 1.39 | 0.00 | 0.78 | -20.19 | 322.03 | -26.15 | 119.75 | 0.4785 | 917.0 | 705.4 | |
| 4.34 | 20.72 | 2.45 | 11.72 | -20.52 | 321.72 | -26.46 | 120.13 | 0.4845 | 977.0 | 717.3 | |
| 0.69 | -55.00 | 0.39 | -55.00 | -20.15 | 321.76 | -26.43 | 119.45 | 0.4818 | 918.0 | 999999 | |
| 1.99 | 5.46 | 1.13 | 3.10 | -20.89 | 321.33 | -26.86 | 120.53 | 0.4920 | 696.9 | 534.7 | |
| 0.00 | 1.73 | 0.00 | 0.99 | -20.55 | 321.15 | -27.04 | 119.74 | 0.4923 | 478.0 | 390.2 | |
| 0.00 | 0.35 | 0.00 | 0.19 | -18.30 | 321.52 | -26.67 | 115.66 | 0.4747 | -765.0 | -735.2 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -18.29 | 321.41 | -26.77 | 115.58 | 0.4761 | -309.0 | -366.7 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -17.13 | 321.22 | -26.97 | 113.11 | 0.4731 | 709.0 | 622.9 | |
| 0.00 | 1.73 | 0.00 | 1.00 | -21.61 | 320.36 | -27.83 | 121.11 | 0.5090 | -938.0 | -677.3 | |
| 0.00 | 3.82 | 0.00 | 2.15 | -17.71 | 320.84 | -27.34 | 114.06 | 0.4812 | -915.0 | -687.6 | |
| 0.00 | 1.13 | 0.00 | 0.64 | -19.47 | 320.53 | -27.65 | 117.26 | 0.4943 | -686.0 | -482.2 | |
| 4.77 | 6.94 | 2.71 | 3.94 | -18.97 | 320.48 | -27.71 | 116.29 | 0.4924 | -981.7 | -699.1 | |
| 1.13 | 19.25 | 0.64 | 10.91 | -18.01 | 320.65 | -27.53 | 114.52 | 0.4852 | -1082.5 | -801.0 | |
| 1.47 | -66.00 | 0.84 | -66.00 | -18.02 | 320.40 | -27.78 | 114.40 | 0.4888 | -1022.3 | 999999 | |
| 0.52 | -66.00 | 0.30 | -66.00 | -18.17 | 320.34 | -27.85 | 114.65 | 0.4903 | -1009.0 | 999999 | |
| 1.65 | -66.00 | 0.94 | -66.00 | -18.13 | 320.20 | -27.98 | 114.50 | 0.4920 | -769.6 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.40 | -19.71 | 319.88 | -28.31 | 117.28 | 0.5043 | -794.0 | -684.9 | |
| 3.03 | 159.54 | 1.76 | 92.39 | -21.42 | 319.27 | -28.92 | 119.99 | 0.5218 | -949.1 | -419.5 | |
| 34.42 | -71.00 | 19.91 | -71.00 | -20.93 | 319.34 | -28.85 | 119.17 | 0.5182 | -1134.0 | 999999 | |
| 3.90 | -71.00 | 2.26 | -71.00 | -21.23 | 319.09 | -29.10 | 119.53 | 0.5230 | -726.2 | 999999 | |
| 0.43 | 226.13 | 0.25 | 130.88 | -18.64 | 319.43 | -28.75 | 115.00 | 0.5049 | -1110.6 | -357.2 | |
| 0.00 | 1.30 | 0.00 | 0.76 | -20.62 | 318.75 | -29.44 | 118.22 | 0.5241 | -828.0 | -676.5 | |
| 9.28 | -74.00 | 5.34 | -74.00 | -18.77 | 319.09 | -29.10 | 115.04 | 0.5103 | -1196.0 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.75 | -20.44 | 318.75 | -29.44 | 117.89 | 0.5231 | -728.0 | -679.4 | |
| 13.09 | -74.00 | 7.58 | -74.00 | -19.60 | 318.63 | -29.55 | 116.30 | 0.5204 | -888.5 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.71 | -20.63 | 318.41 | -29.77 | 118.02 | 0.5285 | -547.0 | -441.0 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -20.39 | 318.47 | -29.72 | 117.62 | 0.5266 | -555.0 | -436.1 | |
| 3.64 | -74.00 | 2.10 | -74.00 | -18.77 | 318.65 | -29.53 | 114.80 | 0.5162 | -1040.2 | 999999 | |
| 20.29 | -74.00 | 11.76 | -74.00 | -19.13 | 318.40 | -29.79 | 115.30 | 0.5212 | -1132.6 | 999999 | |
| 1.39 | -74.00 | 0.81 | -74.00 | -19.49 | 318.29 | -29.90 | 115.89 | 0.5244 | -646.8 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.30 | -18.40 | 317.56 | -30.62 | 113.52 | 0.5293 | -466.0 | -310.0 | |
| 0.00 | 0.87 | 0.00 | 0.54 | -21.66 | 312.49 | -35.70 | 116.57 | 0.6086 | -608.0 | -495.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
