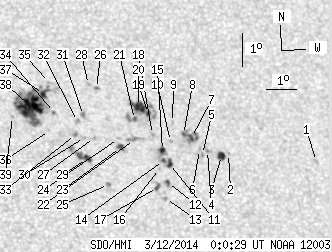

SDO HMI 2014-03-12 00:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.35 | 226.50 | 36.96 | 126.34 | 5.83 | 11.64 | 24.00 | 298.16 | 0.4606 | 113.2 | 73.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-12 00:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.08 | 0.00 | 1.24 | 5.16 | 18.83 | 31.19 | 290.85 | 0.5541 | 494.0 | 297.6 | |
| 0.00 | 0.52 | 0.00 | 0.30 | 5.21 | 15.80 | 28.16 | 293.12 | 0.5131 | -314.0 | -347.3 | |
| 4.08 | 5.81 | 2.34 | 3.34 | 5.14 | 15.55 | 27.92 | 293.17 | 0.5093 | -812.7 | -602.9 | |
| 0.00 | 3.56 | 0.00 | 2.04 | 5.26 | 15.09 | 27.45 | 293.77 | 0.5037 | -874.0 | -551.2 | |
| 0.00 | 1.21 | 0.00 | 0.69 | 5.13 | 14.91 | 27.28 | 293.67 | 0.5004 | -695.0 | -660.6 | |
| 0.00 | 1.13 | 0.00 | 0.64 | 5.28 | 14.82 | 27.18 | 294.02 | 0.5001 | -600.0 | -538.7 | |
| 2.17 | 16.13 | 1.24 | 9.20 | 5.63 | 14.57 | 26.93 | 294.87 | 0.4989 | -881.8 | -649.9 | |
| 0.95 | -7.00 | 0.54 | -7.00 | 5.70 | 14.30 | 26.67 | 295.24 | 0.4957 | -782.4 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.79 | 6.05 | 13.95 | 26.32 | 296.18 | 0.4933 | -376.0 | -355.7 | |
| 0.00 | 1.13 | 0.00 | 0.64 | 5.47 | 13.86 | 26.22 | 295.19 | 0.4880 | -623.0 | -564.8 | |
| 2.86 | 16.39 | 1.62 | 9.25 | 4.79 | 13.79 | 26.16 | 293.99 | 0.4828 | -864.5 | -558.5 | |
| 1.04 | 3.90 | 0.59 | 2.20 | 4.21 | 13.70 | 26.07 | 292.95 | 0.4779 | -835.7 | -603.9 | |
| 0.00 | 1.56 | 0.00 | 0.88 | 3.72 | 13.62 | 25.98 | 292.07 | 0.4737 | -823.0 | -751.3 | |
| 1.04 | -11.00 | 0.59 | -11.00 | 4.87 | 13.60 | 25.96 | 294.31 | 0.4806 | -910.2 | 999999 | |
| 2.69 | -11.00 | 1.52 | -11.00 | 5.18 | 13.58 | 25.94 | 294.90 | 0.4823 | -771.3 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 4.62 | 13.45 | 25.82 | 293.95 | 0.4770 | -868.0 | -672.7 | |
| 1.39 | 3.90 | 0.78 | 2.19 | 4.04 | 13.36 | 25.73 | 292.91 | 0.4720 | -893.2 | -715.4 | |
| 0.00 | 1.39 | 0.00 | 0.78 | 5.65 | 13.27 | 25.63 | 296.06 | 0.4812 | -843.0 | -763.2 | |
| 1.65 | 25.32 | 0.93 | 14.31 | 6.28 | 13.17 | 25.53 | 297.34 | 0.4842 | -904.8 | -597.1 | |
| 9.28 | -19.00 | 5.24 | -19.00 | 6.48 | 12.84 | 25.21 | 298.01 | 0.4813 | -853.3 | 999999 | |
| 0.78 | 6.76 | 0.44 | 3.80 | 6.07 | 12.69 | 25.06 | 297.41 | 0.4763 | -974.6 | -779.9 | |
| 0.00 | 6.94 | 0.00 | 3.89 | 5.46 | 12.66 | 25.02 | 296.28 | 0.4716 | 581.0 | 357.5 | |
| 2.25 | 3.64 | 1.26 | 2.03 | 5.19 | 12.19 | 24.55 | 296.22 | 0.4632 | 814.5 | 652.7 | |
| 0.00 | 1.47 | 0.00 | 0.82 | 5.46 | 12.13 | 24.50 | 296.80 | 0.4644 | 473.0 | 382.8 | |
| 0.00 | 1.99 | 0.00 | 1.10 | 4.04 | 11.75 | 24.11 | 294.36 | 0.4492 | 721.0 | 606.3 | |
| 0.35 | 1.91 | 0.19 | 1.07 | 6.96 | 11.49 | 23.85 | 300.29 | 0.4668 | -761.0 | -603.4 | |
| 0.00 | 1.30 | 0.00 | 0.72 | 5.45 | 11.35 | 23.71 | 297.57 | 0.4535 | 519.0 | 271.9 | |
| 0.00 | 1.47 | 0.00 | 0.82 | 7.07 | 11.23 | 23.59 | 300.78 | 0.4642 | -493.0 | -501.4 | |
| 3.04 | 13.79 | 1.68 | 7.61 | 4.80 | 11.09 | 23.45 | 296.54 | 0.4452 | 805.7 | 762.7 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 5.44 | 11.02 | 23.38 | 297.88 | 0.4488 | 638.0 | 626.7 | |
| 0.00 | 3.64 | 0.00 | 2.02 | 6.11 | 11.02 | 23.38 | 299.19 | 0.4539 | 732.0 | 447.6 | |
| 0.00 | 2.43 | 0.00 | 1.35 | 5.92 | 10.81 | 23.18 | 299.04 | 0.4496 | 721.0 | 565.1 | |
| 0.00 | 2.34 | 0.00 | 1.29 | 5.51 | 10.73 | 23.09 | 298.34 | 0.4454 | 955.0 | 799.4 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 6.15 | 10.07 | 22.44 | 300.33 | 0.4415 | 573.0 | 485.8 | |
| 0.00 | 1.65 | 0.00 | 0.91 | 7.07 | 9.96 | 22.32 | 302.23 | 0.4474 | 446.0 | 315.9 | |
| 0.00 | 0.61 | 0.00 | 0.33 | 5.60 | 9.89 | 22.25 | 299.43 | 0.4346 | 660.0 | 523.0 | |
| 3.73 | 87.07 | 2.06 | 47.83 | 6.72 | 9.74 | 22.11 | 301.81 | 0.4417 | 642.1 | 590.9 | |
| 29.05 | -37.00 | 15.94 | -37.00 | 6.30 | 9.30 | 21.67 | 301.53 | 0.4324 | 1053.9 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 5.97 | 8.71 | 21.08 | 301.59 | 0.4217 | 848.0 | 652.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
