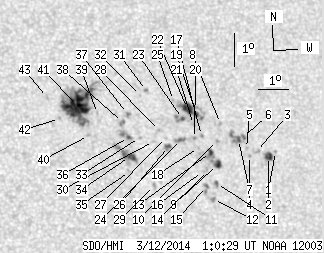

SDO HMI 2014-03-12 01:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.81 | 233.63 | 39.00 | 130.67 | 5.77 | 11.43 | 24.35 | 297.68 | 0.4649 | 72.5 | 82.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-12 01:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.50 | 5.28 | 15.83 | 28.74 | 292.79 | 0.5215 | -458.0 | -360.5 | |
| 4.25 | 5.81 | 2.46 | 3.36 | 5.11 | 15.58 | 28.50 | 292.68 | 0.5171 | -818.8 | -591.7 | |
| 0.00 | 2.34 | 0.00 | 1.35 | 5.24 | 15.18 | 28.10 | 293.22 | 0.5124 | -744.0 | -641.9 | |
| 0.00 | 1.21 | 0.00 | 0.70 | 5.10 | 14.94 | 27.85 | 293.16 | 0.5082 | -779.0 | -656.4 | |
| 0.00 | 1.39 | 0.00 | 0.80 | 5.31 | 14.85 | 27.76 | 293.61 | 0.5082 | -704.0 | -560.4 | |
| 0.78 | 12.40 | 0.45 | 7.11 | 5.67 | 14.76 | 27.68 | 294.33 | 0.5093 | -586.0 | -682.2 | |
| 1.39 | -6.00 | 0.80 | -6.00 | 5.57 | 14.59 | 27.50 | 294.29 | 0.5063 | -852.4 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.74 | 6.03 | 14.01 | 26.92 | 295.60 | 0.5013 | -494.0 | -385.9 | |
| 3.64 | 14.31 | 2.07 | 8.12 | 4.77 | 13.84 | 26.76 | 293.43 | 0.4910 | -874.4 | -665.9 | |
| 0.00 | 1.39 | 0.00 | 0.79 | 5.50 | 13.88 | 26.79 | 294.75 | 0.4961 | -662.0 | -489.1 | |
| 0.78 | 2.86 | 0.44 | 1.62 | 4.19 | 13.79 | 26.70 | 292.38 | 0.4866 | -813.6 | -662.5 | |
| 0.00 | 2.26 | 0.00 | 1.27 | 3.69 | 13.67 | 26.58 | 291.54 | 0.4820 | -798.0 | -685.8 | |
| 2.17 | -9.00 | 1.23 | -9.00 | 5.12 | 13.63 | 26.54 | 294.27 | 0.4902 | -811.1 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.34 | 4.57 | 13.53 | 26.45 | 293.31 | 0.4854 | -647.0 | -656.3 | |
| 0.52 | 3.82 | 0.29 | 2.15 | 4.08 | 13.45 | 26.36 | 292.45 | 0.4812 | -839.3 | -756.0 | |
| 0.00 | 0.52 | 0.00 | 0.29 | 4.52 | 13.33 | 26.25 | 293.40 | 0.4823 | -564.0 | -513.0 | |
| 0.00 | 1.39 | 0.00 | 0.79 | 5.62 | 13.35 | 26.26 | 295.44 | 0.4897 | -826.0 | -682.8 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 5.25 | 13.23 | 26.14 | 294.85 | 0.4856 | -500.0 | -403.7 | |
| 1.82 | 22.90 | 1.04 | 13.00 | 6.26 | 13.22 | 26.13 | 296.73 | 0.4922 | -877.4 | -570.4 | |
| 0.00 | 1.21 | 0.00 | 0.69 | 5.52 | 13.11 | 26.02 | 295.46 | 0.4857 | -857.0 | -682.1 | |
| 0.00 | 1.91 | 0.00 | 1.08 | 5.94 | 13.10 | 26.01 | 296.26 | 0.4884 | -847.0 | -760.1 | |
| 7.89 | -19.00 | 4.48 | -19.00 | 6.42 | 12.92 | 25.84 | 297.30 | 0.4894 | -844.7 | 999999 | |
| 1.04 | 5.46 | 0.59 | 3.09 | 6.11 | 12.74 | 25.66 | 296.89 | 0.4847 | -906.8 | -802.8 | |
| 1.30 | 4.94 | 0.73 | 2.79 | 5.46 | 12.67 | 25.59 | 295.75 | 0.4793 | 598.5 | 480.5 | |
| 0.00 | 1.21 | 0.00 | 0.69 | 6.64 | 12.47 | 25.39 | 298.14 | 0.4849 | -686.0 | -505.1 | |
| 1.47 | 4.77 | 0.83 | 2.68 | 5.22 | 12.23 | 25.15 | 295.71 | 0.4716 | 783.9 | 638.6 | |
| 0.00 | 0.87 | 0.00 | 0.49 | 5.49 | 12.15 | 25.06 | 296.31 | 0.4723 | 484.0 | 276.8 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 5.70 | 11.96 | 24.87 | 296.88 | 0.4711 | -652.0 | -510.3 | |
| 0.00 | 2.69 | 0.00 | 1.50 | 4.01 | 11.72 | 24.64 | 293.81 | 0.4565 | 757.0 | 598.6 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 5.35 | 11.74 | 24.66 | 296.42 | 0.4658 | -340.0 | -260.7 | |
| 0.00 | 1.56 | 0.00 | 0.88 | 6.90 | 11.59 | 24.51 | 299.49 | 0.4751 | -751.0 | -660.8 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 6.74 | 11.39 | 24.30 | 299.41 | 0.4710 | -699.0 | -562.1 | |
| 0.00 | 1.21 | 0.00 | 0.68 | 5.45 | 11.29 | 24.20 | 297.06 | 0.4602 | 445.0 | 284.9 | |
| 6.07 | 19.08 | 3.37 | 10.57 | 4.85 | 10.94 | 23.85 | 296.24 | 0.4511 | 860.4 | 666.5 | |
| 0.00 | 1.82 | 0.00 | 1.01 | 4.40 | 10.92 | 23.83 | 295.34 | 0.4476 | 734.0 | 530.6 | |
| 0.95 | 6.59 | 0.53 | 3.66 | 5.43 | 10.93 | 23.84 | 297.39 | 0.4551 | 764.5 | 701.7 | |
| 0.35 | 2.26 | 0.19 | 1.26 | 6.16 | 10.93 | 23.84 | 298.80 | 0.4605 | 747.8 | 581.3 | |
| 0.00 | 3.47 | 0.00 | 1.93 | 5.88 | 10.75 | 23.66 | 298.45 | 0.4560 | 720.0 | 613.7 | |
| 0.00 | 1.21 | 0.00 | 0.67 | 6.11 | 9.95 | 22.86 | 299.77 | 0.4469 | 584.0 | 434.5 | |
| 0.00 | 1.56 | 0.00 | 0.86 | 5.43 | 9.62 | 22.54 | 298.77 | 0.4372 | 701.0 | 546.3 | |
| 35.39 | 89.77 | 19.50 | 49.50 | 6.33 | 9.31 | 22.22 | 300.92 | 0.4400 | 1012.1 | 567.6 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 5.90 | 8.71 | 21.62 | 300.79 | 0.4285 | 746.0 | 673.3 | |
| 0.00 | 1.73 | 0.00 | 0.95 | 6.53 | 8.35 | 21.26 | 302.48 | 0.4289 | 733.0 | 548.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
