SDO HMI 2014-03-12 02:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 263.55 | 1116.19 | 144.66 | 612.26 | -18.87 | 323.63 | -22.90 | 120.26 | 0.4257 | -60.7 | -12.0 | |
|
previous
or next observation for the same group /

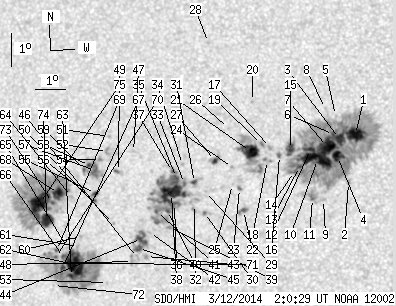

back to the solar disc SDO HMI 2014-03-12 02:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.52 | 415.44 | 9.21 | 219.66 | -17.47 | 329.40 | -17.14 | 123.07 | 0.3370 | 1340.1 | 435.0 | |
| 0.00 | 1.91 | 0.00 | 1.01 | -18.91 | 329.02 | -17.52 | 126.14 | 0.3542 | -226.0 | -110.4 | |
| 7.89 | -1.00 | 4.16 | -1.00 | -17.57 | 328.86 | -17.68 | 122.61 | 0.3451 | 1270.5 | 999999 | |
| 8.94 | -1.00 | 4.72 | -1.00 | -18.11 | 328.74 | -17.80 | 123.80 | 0.3512 | 1173.6 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.27 | -16.87 | 328.80 | -17.74 | 120.71 | 0.3406 | 539.0 | 399.5 | |
| 1.04 | -1.00 | 0.55 | -1.00 | -17.44 | 328.68 | -17.86 | 122.04 | 0.3467 | 958.3 | 999999 | |
| 20.04 | -1.00 | 10.60 | -1.00 | -17.80 | 328.44 | -18.09 | 122.63 | 0.3527 | 1209.4 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -16.65 | 328.50 | -18.04 | 119.74 | 0.3433 | 728.0 | 546.6 | |
| 0.00 | 1.82 | 0.00 | 0.97 | -19.40 | 328.13 | -18.41 | 126.06 | 0.3700 | -270.0 | -253.6 | |
| 26.29 | -1.00 | 13.95 | -1.00 | -18.18 | 328.07 | -18.46 | 123.09 | 0.3607 | 1103.4 | 999999 | |
| 0.61 | 13.71 | 0.32 | 7.31 | -19.35 | 327.77 | -18.77 | 125.48 | 0.3744 | -961.3 | -237.7 | |
| 4.34 | -1.00 | 2.30 | -1.00 | -17.86 | 327.88 | -18.66 | 122.08 | 0.3610 | 1000.2 | 999999 | |
| 1.91 | -1.00 | 1.02 | -1.00 | -18.36 | 327.45 | -19.08 | 122.76 | 0.3706 | 459.7 | 999999 | |
| 1.13 | -1.00 | 0.60 | -1.00 | -18.51 | 327.27 | -19.27 | 122.88 | 0.3742 | 558.7 | 999999 | |
| 6.77 | -1.00 | 3.60 | -1.00 | -17.84 | 327.22 | -19.32 | 121.21 | 0.3699 | 927.7 | 999999 | |
| 0.78 | 2.26 | 0.42 | 1.21 | -18.00 | 326.83 | -19.71 | 121.17 | 0.3764 | 831.1 | 641.3 | |
| 0.00 | 2.60 | 0.00 | 1.39 | -17.75 | 326.56 | -19.97 | 120.26 | 0.3783 | 773.0 | 633.1 | |
| 0.00 | 3.90 | 0.00 | 2.09 | -18.14 | 326.42 | -20.12 | 121.02 | 0.3831 | 622.0 | 608.9 | |
| 0.43 | 1.65 | 0.23 | 0.88 | -17.65 | 326.27 | -20.26 | 119.70 | 0.3816 | 814.0 | 624.5 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -16.34 | 326.13 | -20.41 | 116.36 | 0.3752 | 814.0 | 696.6 | |
| 16.66 | 51.70 | 8.95 | 27.78 | -17.84 | 325.88 | -20.65 | 119.75 | 0.3884 | 999.8 | 162.2 | |
| 1.21 | 4.77 | 0.66 | 2.59 | -19.62 | 325.41 | -21.12 | 123.25 | 0.4076 | -1070.0 | -852.7 | |
| 0.69 | 2.00 | 0.38 | 1.08 | -18.95 | 325.37 | -21.17 | 121.72 | 0.4032 | -867.4 | -706.3 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -18.30 | 325.22 | -21.32 | 120.11 | 0.4007 | 555.0 | 403.8 | |
| 0.00 | 0.52 | 0.00 | 0.28 | -18.81 | 325.15 | -21.38 | 121.20 | 0.4052 | -799.0 | -569.0 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -17.11 | 325.24 | -21.30 | 117.39 | 0.3927 | -806.0 | -594.8 | |
| 2.43 | 7.03 | 1.32 | 3.81 | -18.06 | 324.68 | -21.86 | 119.04 | 0.4066 | 753.3 | 459.9 | |
| 0.00 | 1.13 | 0.00 | 0.60 | -14.50 | 324.87 | -21.67 | 110.71 | 0.3839 | 818.0 | 617.5 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -18.98 | 324.21 | -22.32 | 120.63 | 0.4192 | -753.0 | -508.4 | |
| 0.52 | 2.86 | 0.28 | 1.57 | -19.62 | 324.09 | -22.45 | 121.86 | 0.4253 | -989.5 | -777.3 | |
| 1.47 | 128.04 | 0.80 | 70.43 | -18.69 | 323.88 | -22.66 | 119.68 | 0.4218 | -1031.8 | -132.5 | |
| 0.00 | 6.94 | 0.00 | 3.80 | -19.36 | 323.78 | -22.76 | 121.02 | 0.4276 | -259.0 | -698.2 | |
| 0.87 | -31.00 | 0.47 | -31.00 | -18.71 | 323.54 | -23.00 | 119.39 | 0.4266 | -1067.1 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.76 | -18.13 | 323.55 | -22.99 | 118.15 | 0.4227 | 723.0 | 487.6 | |
| 1.82 | -31.00 | 1.00 | -31.00 | -18.51 | 323.29 | -23.25 | 118.75 | 0.4287 | 536.1 | 999999 | |
| 0.52 | -31.00 | 0.29 | -31.00 | -19.30 | 323.10 | -23.43 | 120.25 | 0.4363 | -935.2 | 999999 | |
| 0.87 | -31.00 | 0.48 | -31.00 | -18.32 | 323.18 | -23.36 | 118.25 | 0.4290 | 789.5 | 999999 | |
| 25.42 | -31.00 | 13.97 | -31.00 | -18.99 | 323.05 | -23.49 | 119.55 | 0.4351 | -1080.8 | 999999 | |
| 0.00 | 2.43 | 0.00 | 1.34 | -20.02 | 322.82 | -23.72 | 121.47 | 0.4450 | 191.0 | 201.4 | |
| 1.56 | -31.00 | 0.86 | -31.00 | -19.50 | 322.83 | -23.71 | 120.42 | 0.4413 | -594.5 | 999999 | |
| 0.87 | -31.00 | 0.48 | -31.00 | -19.51 | 322.45 | -24.09 | 120.10 | 0.4465 | 807.4 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.77 | -20.14 | 322.10 | -24.43 | 121.06 | 0.4553 | 785.0 | 583.6 | |
| 0.00 | 1.91 | 0.00 | 1.07 | -20.86 | 321.87 | -24.66 | 122.29 | 0.4632 | 764.0 | 666.0 | |
| 7.55 | 20.65 | 4.21 | 11.52 | -20.30 | 321.79 | -24.74 | 121.13 | 0.4605 | 1017.5 | 696.2 | |
| 3.21 | -44.00 | 1.79 | -44.00 | -20.60 | 321.64 | -24.90 | 121.58 | 0.4645 | 844.3 | 999999 | |
| 0.00 | 2.08 | 0.00 | 1.17 | -20.88 | 321.55 | -24.98 | 122.04 | 0.4675 | 508.0 | 359.6 | |
| 0.00 | 1.47 | 0.00 | 0.81 | -17.65 | 321.94 | -24.60 | 115.81 | 0.4424 | 385.0 | 200.5 | |
| 0.00 | 5.03 | 0.00 | 2.82 | -20.99 | 321.36 | -25.18 | 122.08 | 0.4708 | -76.0 | 118.7 | |
| 0.00 | 3.64 | 0.00 | 2.02 | -18.23 | 321.34 | -25.20 | 116.56 | 0.4541 | -791.0 | -671.2 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -19.80 | 320.90 | -25.64 | 119.39 | 0.4691 | -819.0 | -660.1 | |
| 0.00 | 1.13 | 0.00 | 0.63 | -17.16 | 321.19 | -25.35 | 114.22 | 0.4504 | 532.0 | 433.0 | |
| 0.00 | 3.12 | 0.00 | 1.73 | -17.61 | 321.05 | -25.49 | 115.06 | 0.4547 | -839.0 | -756.1 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -21.58 | 320.36 | -26.18 | 122.36 | 0.4877 | -578.0 | -461.8 | |
| 0.00 | 2.08 | 0.00 | 1.16 | -17.84 | 320.77 | -25.76 | 115.34 | 0.4598 | -1069.0 | -895.7 | |
| 1.91 | 6.33 | 1.07 | 3.55 | -18.85 | 320.43 | -26.11 | 117.16 | 0.4700 | -987.7 | -776.7 | |
| 0.87 | -55.00 | 0.49 | -55.00 | -19.06 | 320.36 | -26.18 | 117.52 | 0.4721 | -858.7 | 999999 | |
| 4.77 | 24.81 | 2.67 | 13.87 | -18.16 | 320.51 | -26.03 | 115.81 | 0.4651 | -1127.5 | -792.8 | |
| 1.47 | -57.00 | 0.82 | -57.00 | -18.00 | 320.36 | -26.17 | 115.39 | 0.4663 | -998.5 | 999999 | |
| 0.78 | -57.00 | 0.44 | -57.00 | -18.11 | 320.17 | -26.37 | 115.48 | 0.4695 | -752.2 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.64 | -20.13 | 319.67 | -26.86 | 119.08 | 0.4875 | -834.0 | -741.5 | |
| 0.00 | 1.21 | 0.00 | 0.69 | -20.43 | 319.55 | -26.99 | 119.56 | 0.4910 | -908.0 | -804.9 | |
| 29.41 | 166.04 | 16.77 | 94.82 | -20.97 | 319.30 | -27.24 | 120.38 | 0.4975 | -1171.7 | -427.1 | |
| 2.78 | -62.00 | 1.59 | -62.00 | -21.33 | 319.12 | -27.42 | 120.91 | 0.5020 | -864.1 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.78 | -18.90 | 319.58 | -26.96 | 116.64 | 0.4818 | -380.0 | -392.8 | |
| 0.00 | 2.17 | 0.00 | 1.24 | -20.44 | 319.15 | -27.39 | 119.28 | 0.4962 | -578.0 | -474.0 | |
| 0.87 | -62.00 | 0.50 | -62.00 | -20.70 | 318.95 | -27.58 | 119.63 | 0.5003 | -699.3 | 999999 | |
| 2.34 | -62.00 | 1.34 | -62.00 | -21.04 | 318.85 | -27.69 | 120.17 | 0.5037 | -629.9 | 999999 | |
| 9.98 | 210.37 | 5.65 | 119.96 | -18.78 | 319.14 | -27.40 | 116.12 | 0.4872 | -1218.0 | -356.4 | |
| 0.78 | -62.00 | 0.45 | -62.00 | -20.51 | 318.74 | -27.80 | 119.12 | 0.5020 | -951.8 | 999999 | |
| 0.78 | -62.00 | 0.45 | -62.00 | -20.72 | 318.66 | -27.87 | 119.45 | 0.5042 | -841.4 | 999999 | |
| 0.43 | -62.00 | 0.25 | -62.00 | -20.90 | 318.59 | -27.95 | 119.73 | 0.5062 | -532.6 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.35 | -21.57 | 318.41 | -28.12 | 120.81 | 0.5125 | -359.0 | -285.7 | |
| 1.30 | -68.00 | 0.74 | -68.00 | -19.04 | 318.88 | -27.66 | 116.45 | 0.4921 | -993.8 | 999999 | |
| 12.14 | -68.00 | 6.93 | -68.00 | -19.57 | 318.56 | -27.97 | 117.25 | 0.4992 | -927.8 | 999999 | |
| 29.58 | -68.00 | 16.88 | -68.00 | -19.05 | 318.41 | -28.12 | 116.16 | 0.4984 | -1066.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
