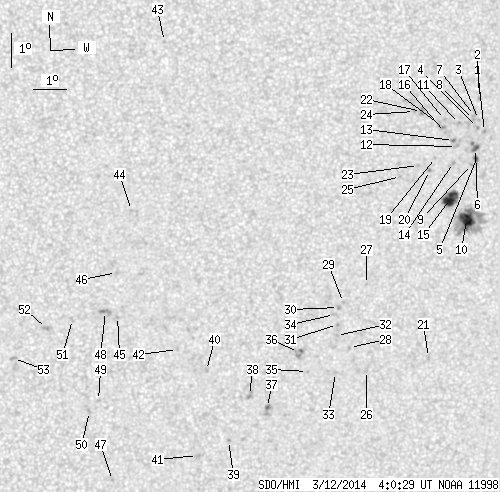

SDO HMI 2014-03-12 04:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.20 | 171.00 | 15.44 | 87.01 | -10.76 | 357.31 | 11.87 | 248.29 | 0.2249 | 433.7 | 233.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-12 04:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.62 | -7.29 | 0.58 | 15.14 | 268.78 | 0.2604 | 686.0 | 534.4 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -6.31 | 0.40 | 14.96 | 272.60 | 0.2580 | 764.0 | 533.9 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -6.94 | 0.39 | 14.95 | 270.17 | 0.2572 | 702.0 | 567.2 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -7.18 | 0.36 | 14.92 | 269.23 | 0.2567 | 834.0 | 746.1 | |
| 1.39 | 2.52 | 0.71 | 1.29 | -8.10 | 0.36 | 14.92 | 265.62 | 0.2569 | 821.0 | 625.7 | |
| 1.82 | 4.69 | 0.93 | 2.40 | -7.81 | 0.32 | 14.88 | 266.78 | 0.2560 | 877.6 | 853.6 | |
| 0.00 | 1.48 | 0.00 | 0.76 | -6.82 | 0.26 | 14.82 | 270.64 | 0.2551 | 721.0 | 591.7 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -6.94 | 0.23 | 14.79 | 270.17 | 0.2546 | 883.0 | 765.5 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -8.29 | 0.22 | 14.77 | 264.87 | 0.2545 | 744.0 | 586.1 | |
| 13.10 | 55.36 | 6.71 | 28.37 | -9.93 | 0.13 | 14.69 | 258.41 | 0.2561 | 1225.1 | 439.3 | |
| 0.00 | 1.48 | 0.00 | 0.75 | -7.08 | 359.80 | 14.36 | 269.69 | 0.2473 | 818.0 | 656.3 | |
| 0.00 | 2.26 | 0.00 | 1.15 | -7.76 | 359.73 | 14.29 | 266.89 | 0.2460 | 880.0 | 744.8 | |
| 0.00 | 1.82 | 0.00 | 0.93 | -7.59 | 359.63 | 14.19 | 267.61 | 0.2443 | 1111.0 | 889.9 | |
| 0.00 | 1.39 | 0.00 | 0.71 | -8.24 | 359.65 | 14.21 | 264.92 | 0.2451 | 798.0 | 626.4 | |
| 13.28 | 17.70 | 6.78 | 9.04 | -9.32 | 359.60 | 14.16 | 260.52 | 0.2459 | 1084.8 | 699.5 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -7.36 | 359.38 | 13.94 | 268.56 | 0.2400 | 894.0 | 781.3 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -6.97 | 359.33 | 13.89 | 270.18 | 0.2394 | 756.0 | 612.5 | |
| 0.00 | 4.51 | 0.00 | 2.30 | -7.15 | 359.22 | 13.77 | 269.43 | 0.2373 | 624.0 | 711.0 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -8.11 | 359.09 | 13.65 | 265.36 | 0.2355 | 762.0 | 597.2 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -8.50 | 358.92 | 13.48 | 263.63 | 0.2330 | 889.0 | 820.0 | |
| 0.00 | 1.82 | 0.00 | 0.93 | -14.09 | 359.15 | 13.71 | 241.86 | 0.2619 | 766.0 | 635.3 | |
| 0.00 | 3.30 | 0.00 | 1.68 | -6.75 | 358.62 | 13.18 | 271.25 | 0.2275 | 947.0 | 853.6 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -8.36 | 358.57 | 13.13 | 264.13 | 0.2270 | 797.0 | 601.6 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -6.76 | 358.40 | 12.96 | 271.27 | 0.2238 | 796.0 | 651.6 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -8.71 | 358.03 | 12.59 | 262.38 | 0.2183 | 707.0 | 494.3 | |
| 0.00 | 1.74 | 0.00 | 0.88 | -14.53 | 357.22 | 11.78 | 236.74 | 0.2374 | 592.0 | 562.9 | |
| 0.00 | 0.69 | 0.00 | 0.35 | -11.95 | 357.10 | 11.66 | 246.75 | 0.2162 | 743.0 | 633.6 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -13.85 | 356.65 | 11.21 | 238.07 | 0.2235 | 970.0 | 809.2 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -12.51 | 356.41 | 10.97 | 243.09 | 0.2092 | 895.0 | 676.9 | |
| 0.00 | 1.56 | 0.00 | 0.79 | -12.66 | 356.26 | 10.82 | 242.12 | 0.2081 | 1008.0 | 844.8 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -13.17 | 356.25 | 10.81 | 239.93 | 0.2120 | 938.0 | 804.4 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -13.50 | 356.23 | 10.79 | 238.53 | 0.2144 | 986.0 | 838.8 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -14.61 | 356.25 | 10.81 | 234.25 | 0.2247 | 818.0 | 650.9 | |
| 0.00 | 2.34 | 0.00 | 1.19 | -12.87 | 356.14 | 10.70 | 240.96 | 0.2080 | 846.0 | 633.7 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -14.60 | 355.38 | 9.94 | 232.07 | 0.2127 | 785.0 | 569.9 | |
| 0.00 | 5.64 | 0.00 | 2.85 | -14.03 | 355.07 | 9.63 | 233.47 | 0.2029 | 499.0 | 719.2 | |
| 0.61 | 6.25 | 0.31 | 3.17 | -15.70 | 354.17 | 8.73 | 224.49 | 0.2095 | -1101.1 | -785.6 | |
| 0.00 | 4.08 | 0.00 | 2.06 | -15.35 | 353.60 | 8.16 | 223.82 | 0.1985 | -904.0 | -724.2 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -16.72 | 352.99 | 7.55 | 217.18 | 0.2092 | -811.0 | -707.2 | |
| 0.00 | 1.65 | 0.00 | 0.83 | -14.62 | 352.24 | 6.79 | 221.47 | 0.1737 | -804.0 | -665.1 | |
| 0.00 | 2.43 | 0.00 | 1.23 | -17.18 | 352.04 | 6.60 | 212.28 | 0.2064 | -675.0 | -616.2 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -14.00 | 351.32 | 5.88 | 219.97 | 0.1555 | -875.0 | -748.3 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -4.82 | 350.79 | 5.35 | 294.07 | 0.1022 | -794.0 | -612.8 | |
| 0.00 | 1.21 | 0.00 | 0.60 | -9.86 | 349.84 | 4.40 | 238.50 | 0.0891 | -883.0 | -663.1 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -13.03 | 349.46 | 4.02 | 213.94 | 0.1228 | -840.0 | -704.7 | |
| 0.00 | 1.48 | 0.00 | 0.73 | -11.71 | 349.41 | 3.97 | 220.78 | 0.1042 | -868.0 | -665.9 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -17.97 | 349.39 | 3.95 | 199.35 | 0.1987 | -753.0 | -623.8 | |
| 0.00 | 5.73 | 0.00 | 2.86 | -12.88 | 349.09 | 3.65 | 212.12 | 0.1172 | -993.0 | -842.7 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -15.55 | 348.91 | 3.47 | 201.90 | 0.1571 | -810.0 | -618.6 | |
| 0.00 | 1.48 | 0.00 | 0.74 | -15.88 | 348.64 | 3.20 | 199.58 | 0.1608 | -833.0 | -677.4 | |
| 0.00 | 2.17 | 0.00 | 1.08 | -13.13 | 348.08 | 2.64 | 203.55 | 0.1128 | -672.0 | -626.5 | |
| 0.00 | 3.64 | 0.00 | 1.82 | -13.40 | 347.29 | 1.85 | 196.24 | 0.1126 | -990.0 | -717.9 | |
| 0.00 | 2.43 | 0.00 | 1.21 | -14.30 | 346.28 | 0.84 | 186.56 | 0.1246 | -1042.0 | -760.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
