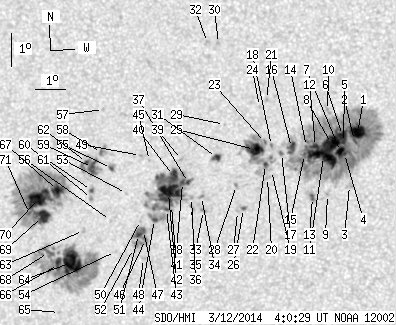

SDO HMI 2014-03-12 04:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 271.55 | 1140.85 | 148.10 | 620.97 | -18.84 | 323.69 | -21.75 | 121.40 | 0.4098 | -39.7 | 19.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-12 04:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.79 | 431.88 | 8.26 | 226.95 | -17.48 | 329.44 | -16.00 | 124.78 | 0.3216 | 1415.3 | 440.8 | |
| 1.04 | -1.00 | 0.55 | -1.00 | -17.72 | 329.32 | -16.12 | 125.23 | 0.3253 | 895.3 | 999999 | |
| 0.00 | 3.90 | 0.00 | 2.06 | -19.07 | 329.02 | -16.42 | 128.19 | 0.3414 | -258.0 | -119.9 | |
| 0.61 | -1.00 | 0.32 | -1.00 | -18.10 | 328.96 | -16.49 | 125.66 | 0.3335 | 1168.3 | 999999 | |
| 2.00 | -1.00 | 1.05 | -1.00 | -17.76 | 328.96 | -16.49 | 124.80 | 0.3306 | 1219.1 | 999999 | |
| 8.24 | -1.00 | 4.32 | -1.00 | -17.55 | 328.94 | -16.50 | 124.23 | 0.3289 | 1306.4 | 999999 | |
| 4.51 | -1.00 | 2.37 | -1.00 | -18.03 | 328.83 | -16.61 | 125.31 | 0.3345 | 1323.8 | 999999 | |
| 19.78 | -1.00 | 10.40 | -1.00 | -17.78 | 328.56 | -16.88 | 124.26 | 0.3360 | 1294.8 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.73 | -19.32 | 328.27 | -17.17 | 127.64 | 0.3534 | -11.0 | 6.5 | |
| 0.00 | 3.82 | 0.00 | 2.00 | -16.78 | 328.53 | -16.91 | 121.57 | 0.3284 | 792.0 | 601.7 | |
| 27.33 | -1.00 | 14.41 | -1.00 | -18.16 | 328.26 | -17.18 | 124.80 | 0.3433 | 1146.2 | 999999 | |
| 3.99 | -1.00 | 2.10 | -1.00 | -17.85 | 328.03 | -17.41 | 123.69 | 0.3438 | 1072.0 | 999999 | |
| 1.56 | 5.21 | 0.83 | 2.76 | -19.39 | 327.77 | -17.68 | 127.07 | 0.3605 | -899.8 | -389.9 | |
| 0.52 | -1.00 | 0.27 | -1.00 | -17.84 | 327.74 | -17.70 | 123.26 | 0.3477 | 797.0 | 999999 | |
| 1.48 | -1.00 | 0.78 | -1.00 | -18.08 | 327.65 | -17.80 | 123.74 | 0.3509 | 795.2 | 999999 | |
| 5.55 | -1.00 | 2.94 | -1.00 | -17.85 | 327.24 | -18.20 | 122.64 | 0.3546 | 934.8 | 999999 | |
| 0.69 | 2.00 | 0.37 | 1.06 | -18.02 | 326.89 | -18.55 | 122.61 | 0.3607 | 949.9 | 746.3 | |
| 0.00 | 1.30 | 0.00 | 0.69 | -17.76 | 326.59 | -18.85 | 121.61 | 0.3629 | 1035.0 | 928.1 | |
| 0.00 | 0.35 | 0.00 | 0.18 | -18.52 | 326.50 | -18.94 | 123.33 | 0.3699 | 382.0 | 347.5 | |
| 0.00 | 2.43 | 0.00 | 1.30 | -18.73 | 326.35 | -19.09 | 123.62 | 0.3736 | -39.0 | 113.5 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -16.37 | 326.57 | -18.87 | 118.07 | 0.3531 | 774.0 | 644.7 | |
| 1.56 | 63.78 | 0.83 | 34.00 | -18.33 | 326.33 | -19.11 | 122.66 | 0.3708 | 798.2 | 276.4 | |
| 0.43 | -22.00 | 0.23 | -22.00 | -17.67 | 326.40 | -19.04 | 121.14 | 0.3647 | 918.8 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.60 | -16.57 | 326.32 | -19.12 | 118.31 | 0.3581 | 770.0 | 621.9 | |
| 15.53 | -22.00 | 8.28 | -22.00 | -17.86 | 326.02 | -19.42 | 121.16 | 0.3715 | 1038.1 | 999999 | |
| 0.95 | 2.95 | 0.51 | 1.59 | -19.64 | 325.43 | -20.01 | 124.57 | 0.3931 | -993.5 | -734.3 | |
| 0.00 | 1.56 | 0.00 | 0.84 | -19.72 | 325.22 | -20.22 | 124.50 | 0.3966 | -877.0 | -659.6 | |
| 0.00 | 1.56 | 0.00 | 0.84 | -18.93 | 325.29 | -20.15 | 122.81 | 0.3895 | -861.0 | -694.7 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -17.07 | 325.11 | -20.33 | 118.24 | 0.3786 | -722.0 | -476.8 | |
| 0.00 | 1.30 | 0.00 | 0.69 | -14.62 | 325.17 | -20.27 | 112.13 | 0.3634 | 904.0 | 655.8 | |
| 3.73 | 5.73 | 2.01 | 3.08 | -18.05 | 324.73 | -20.71 | 120.18 | 0.3907 | 865.4 | 549.8 | |
| 0.00 | 2.17 | 0.00 | 1.16 | -14.58 | 324.82 | -20.62 | 111.72 | 0.3685 | 713.0 | 670.4 | |
| 0.00 | 2.43 | 0.00 | 1.32 | -19.64 | 324.08 | -21.36 | 123.03 | 0.4110 | -996.0 | -763.1 | |
| 0.00 | 1.91 | 0.00 | 1.03 | -19.21 | 324.07 | -21.37 | 122.09 | 0.4080 | -977.0 | -813.6 | |
| 0.00 | 2.08 | 0.00 | 1.13 | -19.53 | 323.68 | -21.76 | 122.38 | 0.4155 | -905.0 | -717.6 | |
| 0.00 | 1.74 | 0.00 | 0.94 | -19.23 | 323.73 | -21.71 | 121.77 | 0.4127 | -876.0 | -694.9 | |
| 1.65 | 123.40 | 0.89 | 67.38 | -18.77 | 323.69 | -21.75 | 120.72 | 0.4099 | -1130.1 | -215.9 | |
| 2.26 | -37.00 | 1.23 | -37.00 | -18.76 | 323.49 | -21.95 | 120.50 | 0.4126 | -1117.7 | 999999 | |
| 0.00 | 1.65 | 0.00 | 0.89 | -18.06 | 323.55 | -21.89 | 119.01 | 0.4071 | 789.0 | 573.2 | |
| 7.55 | -37.00 | 4.11 | -37.00 | -18.53 | 323.21 | -22.23 | 119.74 | 0.4149 | 217.6 | 999999 | |
| 0.61 | -37.00 | 0.33 | -37.00 | -19.44 | 323.01 | -22.43 | 121.50 | 0.4238 | -743.1 | 999999 | |
| 27.33 | -37.00 | 14.92 | -37.00 | -19.07 | 322.97 | -22.48 | 120.67 | 0.4219 | -1105.6 | 999999 | |
| 1.21 | -37.00 | 0.66 | -37.00 | -19.55 | 322.83 | -22.61 | 121.56 | 0.4271 | -616.7 | 999999 | |
| 1.91 | -37.00 | 1.05 | -37.00 | -19.83 | 322.37 | -23.07 | 121.71 | 0.4351 | 987.0 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -18.04 | 322.47 | -22.98 | 117.97 | 0.4220 | 744.0 | 586.9 | |
| 0.95 | 21.26 | 0.53 | 11.76 | -20.43 | 321.97 | -23.48 | 122.54 | 0.4447 | 1144.1 | 769.0 | |
| 1.21 | -46.00 | 0.67 | -46.00 | -20.15 | 321.94 | -23.50 | 121.95 | 0.4431 | 1072.3 | 999999 | |
| 0.00 | 2.17 | 0.00 | 1.20 | -21.00 | 321.80 | -23.64 | 123.53 | 0.4510 | 627.0 | 465.4 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -17.87 | 322.18 | -23.26 | 117.36 | 0.4250 | 630.0 | 506.6 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -19.84 | 321.89 | -23.55 | 121.27 | 0.4416 | 515.0 | 488.2 | |
| 2.95 | -46.00 | 1.63 | -46.00 | -20.26 | 321.75 | -23.69 | 122.00 | 0.4464 | 935.0 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.34 | -20.68 | 321.51 | -23.94 | 122.61 | 0.4525 | 431.0 | 513.4 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -19.00 | 321.54 | -23.91 | 119.21 | 0.4408 | 530.0 | 373.5 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -20.74 | 320.87 | -24.58 | 122.14 | 0.4613 | 512.0 | 360.7 | |
| 1.48 | 4.08 | 0.81 | 2.25 | -18.22 | 321.14 | -24.30 | 117.24 | 0.4416 | -823.2 | -401.3 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -19.79 | 320.85 | -24.59 | 120.25 | 0.4551 | -742.0 | -570.8 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -16.42 | 321.12 | -24.32 | 113.35 | 0.4321 | 604.0 | 536.1 | |
| 0.87 | 6.25 | 0.48 | 3.45 | -17.71 | 320.87 | -24.57 | 115.97 | 0.4425 | -1032.9 | -680.2 | |
| 7.46 | 26.47 | 4.14 | 14.67 | -18.15 | 320.49 | -24.95 | 116.60 | 0.4502 | -1125.5 | -783.3 | |
| 0.95 | 2.43 | 0.53 | 1.35 | -18.85 | 320.35 | -25.09 | 117.92 | 0.4561 | -1059.2 | -740.8 | |
| 0.00 | 2.00 | 0.00 | 1.11 | -19.09 | 320.31 | -25.13 | 118.38 | 0.4581 | -987.0 | -845.1 | |
| 1.21 | -59.00 | 0.67 | -59.00 | -17.99 | 320.31 | -25.13 | 116.12 | 0.4518 | -970.1 | 999999 | |
| 0.00 | 2.34 | 0.00 | 1.31 | -20.04 | 319.86 | -25.58 | 119.93 | 0.4699 | -762.0 | -685.5 | |
| 30.89 | 181.71 | 17.46 | 102.88 | -21.00 | 319.26 | -26.18 | 121.27 | 0.4838 | -1185.9 | -388.8 | |
| 0.00 | 1.13 | 0.00 | 0.65 | -22.50 | 318.53 | -26.91 | 123.44 | 0.5031 | 699.0 | 546.8 | |
| 5.99 | -64.00 | 3.40 | -64.00 | -21.03 | 318.79 | -26.65 | 120.96 | 0.4902 | -683.4 | 999999 | |
| 11.19 | 215.38 | 6.28 | 121.66 | -18.78 | 319.17 | -26.27 | 116.91 | 0.4719 | -1230.4 | -350.1 | |
| 3.73 | -64.00 | 2.12 | -64.00 | -20.65 | 318.51 | -26.93 | 120.02 | 0.4915 | -828.8 | 999999 | |
| 14.75 | -67.00 | 8.35 | -67.00 | -19.54 | 318.51 | -26.94 | 117.91 | 0.4851 | -930.6 | 999999 | |
| 29.07 | -67.00 | 16.42 | -67.00 | -18.99 | 318.46 | -26.98 | 116.81 | 0.4826 | -1107.8 | 999999 | |
| 1.04 | -67.00 | 0.59 | -67.00 | -19.42 | 318.06 | -27.38 | 117.38 | 0.4904 | -498.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
