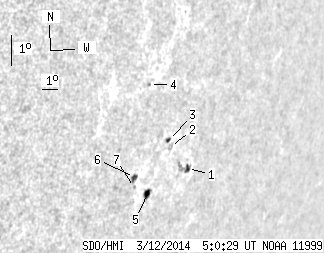

SDO HMI 2014-03-12 05:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.03 | 25.87 | 9.67 | 27.81 | -18.13 | 48.41 | 63.52 | 253.28 | 0.8899 | 5.8 | 211.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-12 05:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.17 | 8.42 | 2.47 | 9.49 | -17.97 | 50.01 | 65.11 | 253.49 | 0.9018 | 440.2 | 444.3 | |
| 0.00 | 3.47 | 0.00 | 3.74 | -17.46 | 48.43 | 63.54 | 254.04 | 0.8901 | 448.0 | 314.7 | |
| 1.13 | 2.26 | 1.21 | 2.41 | -17.30 | 48.19 | 63.30 | 254.21 | 0.8883 | 542.7 | 476.5 | |
| 0.00 | 0.87 | 0.00 | 0.87 | -15.81 | 46.06 | 61.17 | 255.89 | 0.8712 | 507.0 | 418.6 | |
| 3.82 | 5.64 | 4.04 | 5.97 | -18.99 | 47.81 | 62.92 | 252.30 | 0.8857 | -270.5 | -82.8 | |
| 1.91 | 4.08 | 1.95 | 4.17 | -18.62 | 46.68 | 61.79 | 252.68 | 0.8767 | -569.1 | -371.2 | |
| 0.00 | 1.13 | 0.00 | 1.16 | -18.91 | 46.87 | 61.97 | 252.36 | 0.8783 | -423.0 | -355.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
