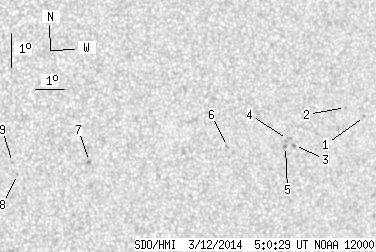

SDO HMI 2014-03-12 05:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.15 | 0.00 | 6.98 | -10.21 | 15.17 | 30.27 | 261.82 | 0.5023 | 178.6 | 255.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-12 05:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.68 | -9.12 | 19.66 | 34.76 | 264.40 | 0.5679 | 592.0 | 504.4 | |
| 0.00 | 0.78 | 0.00 | 0.47 | -8.90 | 18.94 | 34.04 | 264.78 | 0.5576 | 517.0 | 473.4 | |
| 0.00 | 1.13 | 0.00 | 0.66 | -10.15 | 17.23 | 32.34 | 262.40 | 0.5333 | 773.0 | 617.4 | |
| 0.00 | 3.56 | 0.00 | 2.07 | -9.99 | 16.96 | 32.07 | 262.68 | 0.5293 | 578.0 | 526.5 | |
| 0.00 | 1.13 | 0.00 | 0.66 | -10.20 | 16.91 | 32.02 | 262.28 | 0.5287 | 840.0 | 726.6 | |
| 0.00 | 1.21 | 0.00 | 0.69 | -10.33 | 14.88 | 29.98 | 261.81 | 0.4987 | 755.0 | 572.4 | |
| 0.00 | 1.56 | 0.00 | 0.86 | -11.04 | 10.21 | 25.32 | 259.42 | 0.4288 | -777.0 | -653.0 | |
| 0.00 | 0.87 | 0.00 | 0.47 | -11.54 | 7.86 | 22.97 | 257.45 | 0.3934 | -856.0 | -685.0 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -11.19 | 7.67 | 22.77 | 258.26 | 0.3895 | -815.0 | -656.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
