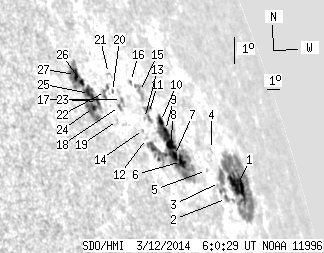

SDO HMI 2014-03-12 06:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.84 | 327.13 | 91.47 | 513.60 | 14.17 | 53.17 | 68.83 | 287.67 | 0.9481 | 3.2 | -43.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-12 06:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.18 | 121.51 | 40.96 | 235.58 | 13.63 | 57.07 | 72.72 | 286.23 | 0.9676 | -342.1 | -71.8 | |
| 0.95 | 2.60 | 1.67 | 4.56 | 13.04 | 55.52 | 71.17 | 285.94 | 0.9602 | -610.1 | -559.5 | |
| 0.00 | 0.61 | 0.00 | 1.05 | 13.50 | 55.17 | 70.83 | 286.48 | 0.9591 | -473.0 | -487.6 | |
| 0.00 | 0.43 | 0.00 | 0.76 | 14.53 | 55.17 | 70.83 | 287.53 | 0.9601 | -365.0 | -383.6 | |
| 0.00 | 0.78 | 0.00 | 1.28 | 13.75 | 54.15 | 69.80 | 286.95 | 0.9544 | -466.0 | -446.6 | |
| 5.64 | 109.79 | 8.33 | 158.49 | 13.77 | 52.02 | 67.67 | 287.46 | 0.9433 | 366.2 | -129.5 | |
| 3.82 | -6.00 | 5.51 | -6.00 | 13.90 | 51.53 | 67.19 | 287.71 | 0.9408 | 750.7 | 999999 | |
| 6.34 | -6.00 | 9.14 | -6.00 | 14.24 | 51.41 | 67.07 | 288.08 | 0.9405 | 208.1 | 999999 | |
| 1.65 | -6.00 | 2.38 | -6.00 | 14.66 | 51.28 | 66.93 | 288.55 | 0.9404 | -788.9 | 999999 | |
| 3.12 | -6.00 | 4.47 | -6.00 | 14.92 | 51.04 | 66.70 | 288.88 | 0.9394 | -352.1 | 999999 | |
| 0.00 | 8.59 | 0.00 | 11.86 | 15.07 | 50.21 | 65.86 | 289.24 | 0.9349 | -601.0 | -560.8 | |
| 0.00 | 0.52 | 0.00 | 0.69 | 14.21 | 49.55 | 65.20 | 288.50 | 0.9296 | -296.0 | -253.8 | |
| 0.00 | 0.87 | 0.00 | 1.17 | 14.86 | 49.78 | 65.43 | 289.13 | 0.9320 | -598.0 | -505.3 | |
| 0.00 | 0.78 | 0.00 | 1.04 | 14.48 | 49.48 | 65.14 | 288.81 | 0.9297 | 84.0 | 58.6 | |
| 0.00 | 8.07 | 0.00 | 11.10 | 15.74 | 49.94 | 65.59 | 290.00 | 0.9343 | -425.0 | -297.9 | |
| 0.00 | 0.61 | 0.00 | 0.82 | 16.00 | 49.42 | 65.08 | 290.40 | 0.9317 | 132.0 | 73.0 | |
| 0.00 | 1.48 | 0.00 | 1.89 | 15.30 | 48.35 | 64.01 | 289.96 | 0.9241 | -256.0 | -257.3 | |
| 0.43 | 1.48 | 0.55 | 1.87 | 15.04 | 48.07 | 63.72 | 289.77 | 0.9218 | 231.6 | 155.8 | |
| 0.00 | 0.87 | 0.00 | 1.08 | 14.55 | 47.66 | 63.32 | 289.36 | 0.9184 | 414.0 | 404.4 | |
| 0.00 | 1.39 | 0.00 | 1.75 | 15.49 | 47.83 | 63.48 | 290.30 | 0.9211 | -31.0 | -34.7 | |
| 0.00 | 1.04 | 0.00 | 1.32 | 16.07 | 47.88 | 63.53 | 290.90 | 0.9224 | 355.0 | 278.6 | |
| 0.00 | 5.82 | 0.00 | 7.18 | 15.43 | 47.31 | 62.96 | 290.38 | 0.9177 | 520.0 | 413.0 | |
| 1.74 | 59.89 | 2.08 | 70.11 | 15.03 | 46.55 | 62.20 | 290.17 | 0.9119 | 289.8 | 434.5 | |
| 2.08 | -23.00 | 2.45 | -23.00 | 14.79 | 46.17 | 61.82 | 290.03 | 0.9089 | 704.5 | 999999 | |
| 5.29 | -23.00 | 6.25 | -23.00 | 15.23 | 46.13 | 61.78 | 290.51 | 0.9095 | 651.8 | 999999 | |
| 2.26 | -23.00 | 2.64 | -23.00 | 15.54 | 45.76 | 61.41 | 290.94 | 0.9076 | 602.7 | 999999 | |
| 4.34 | -23.00 | 5.04 | -23.00 | 15.76 | 45.49 | 61.14 | 291.26 | 0.9062 | 717.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
