SDO HMI 2014-03-12 06:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.58 | 0.00 | 8.37 | -10.42 | 14.68 | 30.33 | 261.38 | 0.5034 | 28.3 | 127.3 | |
|
previous
or next observation for the same group /

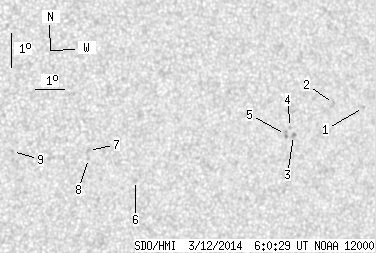

back to the solar disc SDO HMI 2014-03-12 06:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.63 | -9.17 | 19.67 | 35.33 | 264.32 | 0.5759 | 585.0 | 528.9 | |
| 0.00 | 1.74 | 0.00 | 1.04 | -9.12 | 18.57 | 34.22 | 264.37 | 0.5601 | 586.0 | 580.2 | |
| 0.00 | 1.82 | 0.00 | 1.07 | -10.17 | 17.23 | 32.88 | 262.40 | 0.5413 | 770.0 | 603.2 | |
| 0.00 | 1.22 | 0.00 | 0.71 | -9.94 | 17.10 | 32.75 | 262.81 | 0.5392 | 591.0 | 447.7 | |
| 0.00 | 2.60 | 0.00 | 1.53 | -10.16 | 16.94 | 32.59 | 262.39 | 0.5370 | 781.0 | 698.3 | |
| 0.00 | 1.82 | 0.00 | 1.02 | -11.85 | 11.86 | 27.51 | 258.18 | 0.4638 | -749.0 | -499.9 | |
| 0.00 | 2.17 | 0.00 | 1.19 | -11.04 | 10.18 | 25.83 | 259.53 | 0.4367 | -774.0 | -537.4 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -11.28 | 10.20 | 25.85 | 259.00 | 0.4375 | -697.0 | -554.8 | |
| 0.00 | 1.13 | 0.00 | 0.61 | -11.20 | 7.65 | 23.30 | 258.43 | 0.3978 | -838.0 | -710.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
