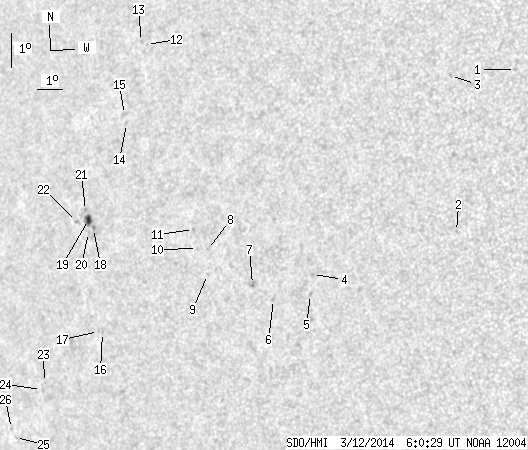

SDO HMI 2014-03-12 06:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.34 | 36.36 | 3.12 | 24.93 | -10.05 | 300.40 | -43.95 | 96.98 | 0.6891 | 27.8 | 84.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-12 06:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.22 | 0.00 | 0.69 | -6.25 | 314.32 | -30.02 | 89.98 | 0.4994 | 749.0 | 545.1 | |
| 0.00 | 1.04 | 0.00 | 0.61 | -10.93 | 311.80 | -32.55 | 99.04 | 0.5370 | 623.0 | 443.8 | |
| 0.00 | 1.13 | 0.00 | 0.66 | -6.28 | 312.04 | -32.31 | 90.32 | 0.5334 | 747.0 | 510.3 | |
| 0.00 | 1.13 | 0.00 | 0.71 | -11.82 | 306.29 | -38.05 | 100.00 | 0.6149 | 681.0 | 546.4 | |
| 0.00 | 1.30 | 0.00 | 0.82 | -12.41 | 306.12 | -38.23 | 100.94 | 0.6178 | 660.0 | 523.4 | |
| 0.00 | 1.30 | 0.00 | 0.83 | -12.44 | 304.65 | -39.69 | 100.84 | 0.6373 | 433.0 | 428.1 | |
| 0.00 | 3.56 | 0.00 | 2.30 | -11.93 | 303.91 | -40.44 | 99.97 | 0.6467 | 740.0 | 602.8 | |
| 0.00 | 0.87 | 0.00 | 0.58 | -10.75 | 302.30 | -42.05 | 98.07 | 0.6670 | 576.0 | 500.9 | |
| 0.00 | 0.78 | 0.00 | 0.52 | -11.49 | 302.16 | -42.19 | 99.18 | 0.6689 | 312.0 | 254.2 | |
| 0.00 | 1.04 | 0.00 | 0.69 | -10.68 | 301.90 | -42.45 | 97.96 | 0.6721 | 526.0 | 488.1 | |
| 0.00 | 0.95 | 0.00 | 0.64 | -10.11 | 301.83 | -42.52 | 97.10 | 0.6728 | 567.0 | 527.3 | |
| 0.00 | 0.43 | 0.00 | 0.30 | -4.45 | 300.57 | -43.78 | 88.89 | 0.6922 | 658.0 | 599.0 | |
| 0.00 | 1.04 | 0.00 | 0.71 | -4.35 | 300.37 | -43.98 | 88.76 | 0.6949 | 615.0 | 524.6 | |
| 0.00 | 1.39 | 0.00 | 0.96 | -6.73 | 299.51 | -44.84 | 92.27 | 0.7031 | 609.0 | 512.1 | |
| 0.00 | 2.52 | 0.00 | 1.75 | -6.45 | 299.46 | -44.89 | 91.88 | 0.7040 | 525.0 | 379.6 | |
| 0.00 | 0.69 | 0.00 | 0.50 | -12.82 | 297.36 | -46.98 | 100.84 | 0.7282 | -746.0 | -580.6 | |
| 0.00 | 0.78 | 0.00 | 0.56 | -12.77 | 297.19 | -47.15 | 100.77 | 0.7302 | -489.0 | -423.7 | |
| 0.00 | 1.65 | 0.00 | 1.18 | -9.71 | 297.63 | -46.72 | 96.55 | 0.7246 | -685.0 | -611.2 | |
| 4.34 | 6.77 | 3.12 | 4.87 | -9.42 | 297.46 | -46.89 | 96.15 | 0.7267 | -842.1 | -586.7 | |
| 0.00 | 1.22 | 0.00 | 0.87 | -9.80 | 297.39 | -46.96 | 96.69 | 0.7274 | -521.0 | -383.4 | |
| 0.00 | 1.13 | 0.00 | 0.81 | -9.14 | 297.38 | -46.97 | 95.77 | 0.7277 | -627.0 | -565.1 | |
| 0.00 | 1.56 | 0.00 | 1.13 | -9.43 | 296.92 | -47.42 | 96.18 | 0.7330 | -441.0 | -350.1 | |
| 0.00 | 0.26 | 0.00 | 0.20 | -14.05 | 294.33 | -50.02 | 102.33 | 0.7632 | -608.0 | -573.7 | |
| 0.00 | 0.95 | 0.00 | 0.73 | -14.24 | 294.13 | -50.22 | 102.57 | 0.7655 | -455.0 | -491.3 | |
| 0.00 | 0.61 | 0.00 | 0.48 | -15.54 | 292.41 | -51.93 | 104.14 | 0.7845 | -586.0 | -554.0 | |
| 0.00 | 1.04 | 0.00 | 0.83 | -15.25 | 292.31 | -52.04 | 103.77 | 0.7854 | -453.0 | -360.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
