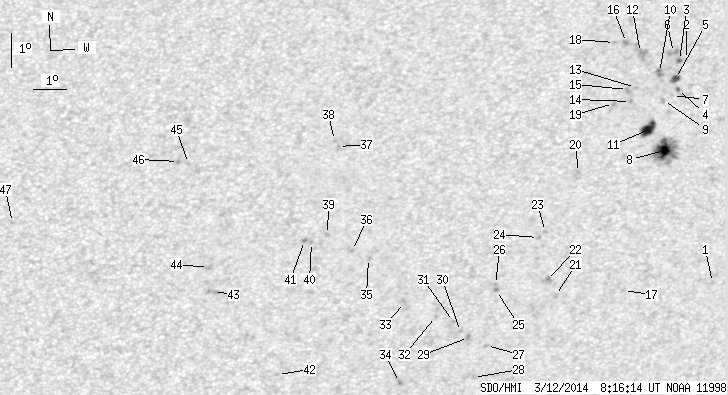

SDO HMI 2014-03-12 08:16:14 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.56 | 168.28 | 12.70 | 86.45 | -10.60 | 357.14 | 14.03 | 250.98 | 0.2573 | 300.5 | 279.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-12 08:16:14 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 0.68 | -13.84 | 1.94 | 18.83 | 248.74 | 0.3378 | 537.0 | 436.2 | |
| 0.00 | 0.52 | 0.00 | 0.27 | -7.22 | 0.72 | 17.61 | 268.86 | 0.3015 | 592.0 | 489.8 | |
| 0.69 | 2.08 | 0.36 | 1.08 | -7.26 | 0.50 | 17.39 | 268.74 | 0.2978 | 909.8 | 750.2 | |
| 0.52 | 1.48 | 0.27 | 0.77 | -8.12 | 0.47 | 17.36 | 265.82 | 0.2975 | 752.8 | 625.6 | |
| 3.39 | 5.56 | 1.75 | 2.88 | -7.80 | 0.39 | 17.28 | 266.92 | 0.2961 | 954.1 | 728.7 | |
| 0.00 | 5.03 | 0.00 | 2.61 | -7.02 | 0.30 | 17.19 | 269.54 | 0.2946 | 785.0 | 761.0 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -8.31 | 0.32 | 17.21 | 265.18 | 0.2951 | 519.0 | 446.9 | |
| 8.42 | 46.96 | 4.36 | 24.34 | -9.95 | 0.15 | 17.04 | 259.54 | 0.2948 | 1310.6 | 565.0 | |
| 0.00 | 2.26 | 0.00 | 1.17 | -8.46 | 0.04 | 16.93 | 264.59 | 0.2907 | 763.0 | 588.2 | |
| 0.00 | 5.21 | 0.00 | 2.69 | -7.64 | 359.88 | 16.77 | 267.45 | 0.2876 | 1058.0 | 852.8 | |
| 11.54 | 15.02 | 5.96 | 7.76 | -9.34 | 359.61 | 16.50 | 261.41 | 0.2847 | 1143.0 | 741.8 | |
| 0.00 | 11.46 | 0.00 | 5.91 | -7.06 | 359.27 | 16.16 | 269.52 | 0.2774 | 900.0 | 696.2 | |
| 0.00 | 1.65 | 0.00 | 0.85 | -8.11 | 359.15 | 16.04 | 265.71 | 0.2755 | 742.0 | 570.9 | |
| 0.00 | 1.56 | 0.00 | 0.80 | -8.53 | 359.01 | 15.90 | 264.14 | 0.2736 | 829.0 | 736.9 | |
| 0.00 | 2.17 | 0.00 | 1.12 | -8.18 | 358.90 | 15.79 | 265.43 | 0.2714 | 902.0 | 713.0 | |
| 0.00 | 3.47 | 0.00 | 1.79 | -6.78 | 358.82 | 15.71 | 270.61 | 0.2701 | 1078.0 | 825.4 | |
| 0.00 | 1.82 | 0.00 | 0.95 | -14.18 | 359.11 | 16.00 | 244.74 | 0.2967 | 781.0 | 587.0 | |
| 0.00 | 1.56 | 0.00 | 0.80 | -6.79 | 358.45 | 15.34 | 270.63 | 0.2638 | 867.0 | 688.8 | |
| 0.00 | 2.08 | 0.00 | 1.07 | -8.61 | 358.48 | 15.37 | 263.73 | 0.2648 | 838.0 | 739.8 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -10.70 | 357.48 | 14.37 | 255.15 | 0.2534 | 786.0 | 702.6 | |
| 0.00 | 1.91 | 0.00 | 0.98 | -14.39 | 356.96 | 13.85 | 240.98 | 0.2663 | 815.0 | 639.7 | |
| 0.00 | 5.90 | 0.00 | 3.03 | -13.95 | 356.65 | 13.53 | 242.00 | 0.2584 | 949.0 | 763.8 | |
| 0.00 | 1.65 | 0.00 | 0.84 | -12.49 | 356.53 | 13.42 | 247.19 | 0.2470 | 896.0 | 702.3 | |
| 0.00 | 1.56 | 0.00 | 0.80 | -12.67 | 356.32 | 13.21 | 246.18 | 0.2449 | 903.0 | 701.4 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -14.29 | 355.09 | 11.98 | 237.94 | 0.2384 | 1061.0 | 912.7 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -14.11 | 355.05 | 11.94 | 238.52 | 0.2363 | 727.0 | 616.2 | |
| 0.00 | 1.91 | 0.00 | 0.98 | -15.95 | 354.87 | 11.76 | 231.73 | 0.2506 | -558.0 | -457.2 | |
| 0.00 | 2.08 | 0.00 | 1.07 | -16.93 | 354.51 | 11.40 | 227.85 | 0.2562 | -723.0 | -521.9 | |
| 0.00 | 2.60 | 0.00 | 1.33 | -15.72 | 354.29 | 11.17 | 231.13 | 0.2407 | -1031.0 | -856.4 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -15.55 | 354.02 | 10.91 | 231.09 | 0.2355 | -827.0 | -624.0 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -15.25 | 353.79 | 10.68 | 231.53 | 0.2294 | -812.0 | -657.4 | |
| 0.00 | 1.39 | 0.00 | 0.71 | -15.11 | 353.22 | 10.11 | 230.54 | 0.2204 | -496.0 | -458.0 | |
| 0.00 | 2.69 | 0.00 | 1.36 | -14.71 | 352.23 | 9.12 | 229.24 | 0.2033 | -738.0 | -725.1 | |
| 0.00 | 2.43 | 0.00 | 1.24 | -17.13 | 352.18 | 9.07 | 220.93 | 0.2310 | -894.0 | -727.1 | |
| 0.00 | 2.60 | 0.00 | 1.31 | -13.41 | 351.06 | 7.95 | 230.94 | 0.1741 | -657.0 | -625.4 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -13.18 | 350.56 | 7.45 | 230.24 | 0.1650 | -888.0 | -754.0 | |
| 0.00 | 1.22 | 0.00 | 0.61 | -10.08 | 350.06 | 6.95 | 246.82 | 0.1301 | -789.0 | -691.5 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -9.90 | 349.93 | 6.82 | 247.75 | 0.1270 | -673.0 | -551.4 | |
| 0.00 | 2.00 | 0.00 | 1.00 | -12.71 | 349.78 | 6.67 | 229.51 | 0.1497 | -781.0 | -583.8 | |
| 0.00 | 1.56 | 0.00 | 0.78 | -12.96 | 349.29 | 6.18 | 226.14 | 0.1463 | -828.0 | -687.7 | |
| 0.00 | 2.17 | 0.00 | 1.09 | -12.90 | 349.08 | 5.97 | 225.43 | 0.1429 | -1173.0 | -864.2 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -16.94 | 348.34 | 5.23 | 207.23 | 0.1915 | -626.0 | -505.3 | |
| 0.00 | 4.77 | 0.00 | 2.39 | -14.45 | 346.31 | 3.20 | 203.16 | 0.1380 | -858.0 | -754.6 | |
| 0.00 | 4.25 | 0.00 | 2.12 | -13.73 | 346.15 | 3.03 | 204.32 | 0.1255 | -820.0 | -610.9 | |
| 0.00 | 1.39 | 0.00 | 0.69 | -10.63 | 345.51 | 2.40 | 214.53 | 0.0728 | -770.0 | -532.8 | |
| 0.00 | 1.82 | 0.00 | 0.91 | -10.57 | 345.20 | 2.09 | 211.45 | 0.0691 | -926.0 | -744.3 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -12.38 | 340.15 | -2.96 | 150.82 | 0.1039 | -813.0 | -629.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
