SDO HMI 2014-03-12 08:16:14 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.80 | 0.00 | 7.00 | -10.33 | 16.61 | 33.50 | 261.93 | 0.5498 | 358.0 | 367.5 | |
|
previous
or next observation for the same group /

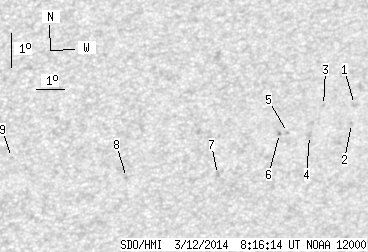

back to the solar disc SDO HMI 2014-03-12 08:16:14 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.08 | 0.00 | 1.28 | -9.12 | 19.77 | 36.66 | 264.39 | 0.5945 | 638.0 | 518.0 | |
| 0.00 | 1.30 | 0.00 | 0.80 | -9.69 | 19.72 | 36.61 | 263.43 | 0.5940 | 557.0 | 450.4 | |
| 0.00 | 0.95 | 0.00 | 0.58 | -9.23 | 18.62 | 35.51 | 264.19 | 0.5785 | 672.0 | 609.4 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -10.16 | 18.21 | 35.10 | 262.56 | 0.5730 | 627.0 | 516.7 | |
| 0.00 | 1.13 | 0.00 | 0.67 | -10.13 | 17.40 | 34.28 | 262.56 | 0.5614 | 691.0 | 591.3 | |
| 0.00 | 1.30 | 0.00 | 0.78 | -10.18 | 17.11 | 34.00 | 262.46 | 0.5573 | 734.0 | 679.1 | |
| 0.00 | 2.00 | 0.00 | 1.16 | -11.54 | 15.03 | 31.92 | 259.70 | 0.5286 | 625.0 | 548.6 | |
| 0.00 | 1.30 | 0.00 | 0.74 | -11.83 | 11.85 | 28.74 | 258.51 | 0.4822 | -597.0 | -459.3 | |
| 0.00 | 0.87 | 0.00 | 0.47 | -11.44 | 7.89 | 24.78 | 258.29 | 0.4213 | -725.0 | -630.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
