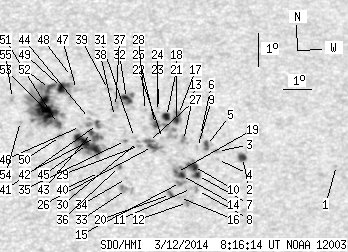

SDO HMI 2014-03-12 08:16:14 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 114.59 | 376.70 | 66.26 | 217.86 | 5.73 | 11.37 | 28.26 | 294.04 | 0.5176 | 154.6 | 45.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-12 08:16:14 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.44 | 5.14 | 19.31 | 36.20 | 287.88 | 0.6204 | 591.0 | 532.9 | |
| 4.08 | 5.73 | 2.47 | 3.46 | 5.14 | 15.89 | 32.78 | 289.78 | 0.5753 | -852.5 | -637.9 | |
| 0.00 | 2.43 | 0.00 | 1.46 | 5.26 | 15.01 | 31.90 | 290.53 | 0.5641 | -707.0 | -552.5 | |
| 0.00 | 1.04 | 0.00 | 0.62 | 5.02 | 15.00 | 31.89 | 290.14 | 0.5627 | -461.0 | -435.6 | |
| 3.04 | 5.12 | 1.81 | 3.06 | 5.42 | 14.64 | 31.52 | 291.04 | 0.5599 | -747.0 | -553.0 | |
| 0.00 | 1.74 | 0.00 | 1.04 | 5.71 | 14.44 | 31.33 | 291.66 | 0.5589 | -543.0 | -475.1 | |
| 2.78 | 29.95 | 1.64 | 17.67 | 4.48 | 14.27 | 31.16 | 289.70 | 0.5500 | -903.0 | -671.3 | |
| 0.00 | 0.78 | 0.00 | 0.46 | 4.03 | 14.25 | 31.14 | 288.92 | 0.5474 | -646.0 | -614.1 | |
| 0.00 | 1.65 | 0.00 | 0.98 | 5.34 | 14.31 | 31.20 | 291.12 | 0.5551 | -599.0 | -484.2 | |
| 6.08 | -7.00 | 3.60 | -7.00 | 4.75 | 14.14 | 31.03 | 290.23 | 0.5497 | -948.2 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.46 | 4.08 | 14.04 | 30.93 | 289.13 | 0.5448 | -767.0 | -691.3 | |
| 0.00 | 4.43 | 0.00 | 2.60 | 3.64 | 13.88 | 30.77 | 288.48 | 0.5405 | -936.0 | -694.8 | |
| 0.00 | 5.12 | 0.00 | 3.03 | 5.52 | 13.84 | 30.73 | 291.75 | 0.5497 | -923.0 | -693.0 | |
| 3.30 | -7.00 | 1.94 | -7.00 | 4.45 | 13.71 | 30.60 | 289.99 | 0.5422 | -1065.9 | 999999 | |
| 0.00 | 4.77 | 0.00 | 2.81 | 4.23 | 13.66 | 30.55 | 289.65 | 0.5404 | -1030.0 | -870.9 | |
| 0.00 | 1.04 | 0.00 | 0.61 | 3.77 | 13.61 | 30.50 | 288.88 | 0.5373 | -792.0 | -692.9 | |
| 1.65 | 41.14 | 0.98 | 24.28 | 6.31 | 13.71 | 30.60 | 293.15 | 0.5525 | -547.1 | -689.2 | |
| 3.30 | -17.00 | 1.95 | -17.00 | 6.12 | 13.63 | 30.52 | 292.90 | 0.5503 | -857.9 | 999999 | |
| 1.13 | -7.00 | 0.66 | -7.00 | 4.53 | 13.54 | 30.43 | 290.25 | 0.5402 | -838.6 | 999999 | |
| 1.65 | 3.04 | 0.96 | 1.78 | 3.85 | 13.30 | 30.19 | 289.20 | 0.5334 | -855.1 | -691.2 | |
| 4.69 | -17.00 | 2.77 | -17.00 | 6.22 | 13.29 | 30.18 | 293.31 | 0.5463 | -890.6 | 999999 | |
| 0.00 | 1.56 | 0.00 | 0.92 | 5.54 | 13.11 | 30.00 | 292.28 | 0.5399 | -443.0 | -389.2 | |
| 0.00 | 0.78 | 0.00 | 0.46 | 6.45 | 13.03 | 29.91 | 293.89 | 0.5441 | -501.0 | -420.6 | |
| 0.00 | 0.69 | 0.00 | 0.41 | 6.35 | 12.99 | 29.87 | 293.76 | 0.5430 | -586.0 | -511.6 | |
| 2.86 | -17.00 | 1.68 | -17.00 | 5.95 | 12.89 | 29.78 | 293.15 | 0.5394 | -1133.2 | 999999 | |
| 3.39 | 15.45 | 1.98 | 9.04 | 5.27 | 12.75 | 29.64 | 292.08 | 0.5335 | 634.1 | 187.6 | |
| 2.43 | -26.00 | 1.42 | -26.00 | 5.41 | 12.62 | 29.51 | 292.43 | 0.5325 | 589.8 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.61 | 6.36 | 12.57 | 29.46 | 294.08 | 0.5375 | -550.0 | -466.2 | |
| 0.00 | 2.08 | 0.00 | 1.21 | 5.27 | 12.30 | 29.19 | 292.41 | 0.5274 | 816.0 | 598.4 | |
| 0.00 | 1.30 | 0.00 | 0.76 | 5.39 | 12.27 | 29.16 | 292.64 | 0.5277 | 418.0 | 213.9 | |
| 0.00 | 1.74 | 0.00 | 1.01 | 5.51 | 12.14 | 29.03 | 292.94 | 0.5266 | -544.0 | -344.1 | |
| 5.03 | 14.24 | 2.94 | 8.31 | 6.69 | 11.94 | 28.83 | 295.14 | 0.5311 | -934.2 | -606.6 | |
| 0.00 | 7.90 | 0.00 | 4.55 | 3.90 | 11.79 | 28.68 | 290.33 | 0.5127 | 837.0 | 660.9 | |
| 0.00 | 0.78 | 0.00 | 0.45 | 4.24 | 11.81 | 28.69 | 290.93 | 0.5147 | 497.0 | 381.0 | |
| 0.35 | 1.82 | 0.20 | 1.06 | 5.40 | 11.83 | 28.72 | 292.98 | 0.5217 | -833.0 | -619.8 | |
| 0.69 | 1.91 | 0.40 | 1.10 | 4.59 | 11.58 | 28.47 | 291.73 | 0.5136 | 659.0 | 529.2 | |
| 0.00 | 5.29 | 0.00 | 3.07 | 6.42 | 11.55 | 28.43 | 294.99 | 0.5241 | -644.0 | -652.4 | |
| 0.00 | 1.74 | 0.00 | 1.01 | 6.11 | 11.49 | 28.38 | 294.50 | 0.5215 | -220.0 | -217.9 | |
| 0.00 | 2.95 | 0.00 | 1.71 | 6.93 | 11.34 | 28.23 | 296.04 | 0.5247 | -319.0 | -326.8 | |
| 0.00 | 0.78 | 0.00 | 0.45 | 4.37 | 10.89 | 27.78 | 291.84 | 0.5027 | 609.0 | 508.2 | |
| 2.17 | 9.29 | 1.25 | 5.34 | 5.83 | 10.90 | 27.79 | 294.49 | 0.5117 | 513.9 | 455.5 | |
| 3.21 | 53.73 | 1.84 | 30.76 | 5.43 | 10.81 | 27.70 | 293.84 | 0.5079 | 694.1 | 455.4 | |
| 2.08 | -42.00 | 1.20 | -42.00 | 5.57 | 10.68 | 27.57 | 294.20 | 0.5071 | 859.8 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.60 | 6.00 | 10.64 | 27.53 | 295.00 | 0.5092 | 490.0 | 396.5 | |
| 19.96 | -42.00 | 11.42 | -42.00 | 5.20 | 10.53 | 27.42 | 293.65 | 0.5026 | 980.3 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.70 | 5.73 | 10.32 | 27.21 | 294.80 | 0.5032 | 551.0 | 546.4 | |
| 0.00 | 2.60 | 0.00 | 1.50 | 6.86 | 10.25 | 27.14 | 296.87 | 0.5097 | -259.0 | -199.8 | |
| 0.00 | 1.13 | 0.00 | 0.65 | 7.25 | 10.11 | 27.00 | 297.68 | 0.5105 | 572.0 | 381.2 | |
| 5.56 | 130.03 | 3.18 | 73.93 | 6.90 | 9.75 | 26.64 | 297.38 | 0.5032 | 753.9 | 514.7 | |
| 0.00 | 2.69 | 0.00 | 1.53 | 5.39 | 9.63 | 26.52 | 294.76 | 0.4915 | 855.0 | 760.4 | |
| 3.82 | -49.00 | 2.17 | -49.00 | 5.78 | 9.55 | 26.44 | 295.55 | 0.4930 | 909.7 | 999999 | |
| 4.95 | -49.00 | 2.82 | -49.00 | 6.84 | 9.34 | 26.23 | 297.66 | 0.4974 | 752.1 | 999999 | |
| 26.39 | -49.00 | 14.98 | -49.00 | 6.19 | 9.17 | 26.06 | 296.64 | 0.4906 | 1170.0 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.49 | 5.78 | 8.32 | 25.20 | 296.67 | 0.4761 | 722.0 | 627.5 | |
| 0.00 | 2.60 | 0.00 | 1.47 | 6.47 | 8.09 | 24.98 | 298.18 | 0.4779 | 792.0 | 654.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
