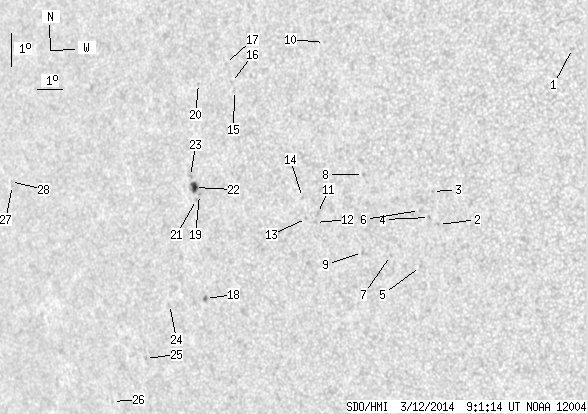

SDO HMI 2014-03-12 09:01:14 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.86 | 35.58 | 3.38 | 23.79 | -10.03 | 300.36 | -42.34 | 97.02 | 0.6685 | 112.6 | 121.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-12 09:01:14 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.91 | 0.00 | 1.09 | -6.43 | 312.35 | -30.35 | 90.39 | 0.5041 | 686.0 | 583.1 | |
| 0.00 | 1.04 | 0.00 | 0.63 | -11.33 | 307.01 | -35.69 | 99.42 | 0.5820 | 717.0 | 621.1 | |
| 0.00 | 0.78 | 0.00 | 0.48 | -10.33 | 306.93 | -35.77 | 97.70 | 0.5826 | 626.0 | 472.6 | |
| 0.00 | 1.30 | 0.00 | 0.79 | -11.09 | 306.71 | -35.99 | 98.99 | 0.5861 | 592.0 | 495.9 | |
| 0.00 | 0.87 | 0.00 | 0.53 | -12.52 | 306.15 | -36.55 | 101.36 | 0.5953 | 652.0 | 569.8 | |
| 0.00 | 0.87 | 0.00 | 0.53 | -10.86 | 306.37 | -36.33 | 98.56 | 0.5907 | 790.0 | 611.6 | |
| 0.00 | 1.22 | 0.00 | 0.76 | -12.11 | 305.07 | -37.64 | 100.53 | 0.6095 | 598.0 | 451.7 | |
| 0.00 | 1.39 | 0.00 | 0.87 | -9.63 | 304.40 | -38.30 | 96.43 | 0.6172 | 660.0 | 473.2 | |
| 0.00 | 1.48 | 0.00 | 0.93 | -11.94 | 304.01 | -38.69 | 100.15 | 0.6236 | 713.0 | 567.4 | |
| 0.00 | 0.87 | 0.00 | 0.55 | -5.59 | 303.33 | -39.37 | 90.02 | 0.6336 | 545.0 | 418.8 | |
| 0.00 | 2.26 | 0.00 | 1.46 | -10.64 | 302.45 | -40.26 | 97.99 | 0.6436 | 704.0 | 498.9 | |
| 0.00 | 1.13 | 0.00 | 0.73 | -10.90 | 302.32 | -40.38 | 98.39 | 0.6453 | 560.0 | 497.7 | |
| 0.00 | 0.95 | 0.00 | 0.62 | -10.76 | 301.99 | -40.71 | 98.15 | 0.6497 | 465.0 | 436.0 | |
| 0.00 | 0.95 | 0.00 | 0.62 | -10.12 | 301.93 | -40.77 | 97.16 | 0.6503 | 573.0 | 425.9 | |
| 0.00 | 0.95 | 0.00 | 0.64 | -6.72 | 299.62 | -43.08 | 92.12 | 0.6811 | 484.0 | 479.5 | |
| 0.00 | 0.78 | 0.00 | 0.53 | -6.47 | 299.53 | -43.17 | 91.76 | 0.6825 | 632.0 | 513.7 | |
| 0.00 | 0.61 | 0.00 | 0.41 | -5.89 | 299.34 | -43.36 | 90.93 | 0.6854 | 557.0 | 454.1 | |
| 0.52 | 1.91 | 0.36 | 1.34 | -12.77 | 297.37 | -45.33 | 100.88 | 0.7087 | -714.5 | -594.4 | |
| 0.00 | 0.95 | 0.00 | 0.66 | -9.67 | 297.73 | -44.97 | 96.49 | 0.7035 | -799.0 | -670.8 | |
| 0.00 | 0.78 | 0.00 | 0.54 | -6.38 | 298.16 | -44.54 | 91.76 | 0.6998 | 509.0 | 410.9 | |
| 0.00 | 0.95 | 0.00 | 0.67 | -9.81 | 297.58 | -45.12 | 96.68 | 0.7053 | -675.0 | -599.5 | |
| 4.34 | 6.60 | 3.02 | 4.60 | -9.45 | 297.56 | -45.14 | 96.17 | 0.7057 | -790.1 | -547.6 | |
| 0.00 | 1.30 | 0.00 | 0.91 | -9.11 | 297.44 | -45.26 | 95.69 | 0.7071 | -691.0 | -578.9 | |
| 0.00 | 0.35 | 0.00 | 0.25 | -12.81 | 295.76 | -46.94 | 100.84 | 0.7277 | -421.0 | -286.0 | |
| 0.00 | 1.13 | 0.00 | 0.84 | -14.31 | 294.26 | -48.44 | 102.79 | 0.7458 | -632.0 | -530.4 | |
| 0.00 | 0.78 | 0.00 | 0.60 | -15.44 | 292.34 | -50.36 | 104.14 | 0.7678 | -405.0 | -382.1 | |
| 0.00 | 0.95 | 0.00 | 0.78 | -8.60 | 289.24 | -53.46 | 95.35 | 0.8001 | -234.0 | -261.7 | |
| 0.00 | 0.52 | 0.00 | 0.43 | -8.47 | 289.17 | -53.53 | 95.20 | 0.8010 | -428.0 | -398.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
