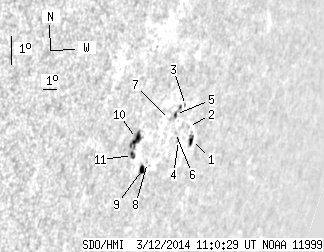

SDO HMI 2014-03-12 11:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.89 | 33.06 | 13.94 | 39.10 | -18.34 | 47.84 | 66.23 | 253.08 | 0.9095 | -63.9 | 40.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-12 11:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.26 | 4.51 | 2.94 | 5.88 | -18.06 | 50.44 | 68.83 | 253.39 | 0.9268 | 263.3 | 281.0 | |
| 0.00 | 0.87 | 0.00 | 1.11 | -17.69 | 49.88 | 68.26 | 253.79 | 0.9233 | 427.0 | 414.4 | |
| 0.00 | 0.35 | 0.00 | 0.43 | -17.12 | 49.18 | 67.57 | 254.42 | 0.9188 | 172.0 | 97.5 | |
| 0.00 | 0.87 | 0.00 | 1.09 | -18.18 | 49.42 | 67.81 | 253.27 | 0.9203 | 497.0 | 456.4 | |
| 0.78 | 4.86 | 0.95 | 5.93 | -17.46 | 48.62 | 67.01 | 254.05 | 0.9150 | 399.4 | 370.8 | |
| 0.00 | 0.69 | 0.00 | 0.86 | -17.97 | 49.01 | 67.40 | 253.49 | 0.9176 | 206.0 | 204.4 | |
| 0.00 | 1.56 | 0.00 | 1.87 | -17.65 | 48.28 | 66.67 | 253.84 | 0.9127 | 256.0 | 195.8 | |
| 0.00 | 0.26 | 0.00 | 0.31 | -19.07 | 47.62 | 66.00 | 252.28 | 0.9083 | -230.0 | -201.3 | |
| 2.60 | 4.86 | 3.03 | 5.65 | -19.31 | 47.42 | 65.80 | 252.01 | 0.9069 | -277.7 | -159.8 | |
| 4.69 | 14.23 | 5.26 | 15.97 | -18.46 | 46.33 | 64.71 | 252.93 | 0.8990 | -357.3 | -304.4 | |
| 1.56 | -10.00 | 1.76 | -10.00 | -18.98 | 46.41 | 64.79 | 252.35 | 0.8997 | -588.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
