SDO HMI 2014-03-12 11:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.78 | 10.05 | 0.47 | 6.10 | -10.27 | 16.95 | 35.34 | 262.27 | 0.5763 | 487.6 | 432.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-12 11:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

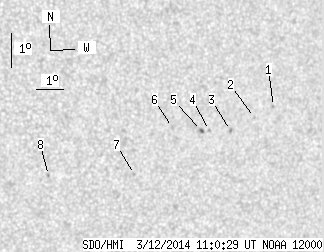

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.71 | -9.19 | 19.85 | 38.24 | 264.27 | 0.6163 | 582.0 | 495.4 | |
| 0.00 | 0.69 | 0.00 | 0.43 | -9.57 | 19.17 | 37.56 | 263.64 | 0.6070 | 641.0 | 552.2 | |
| 0.00 | 1.39 | 0.00 | 0.85 | -10.03 | 18.32 | 36.70 | 262.86 | 0.5954 | 778.0 | 691.3 | |
| 0.00 | 1.30 | 0.00 | 0.79 | -10.08 | 17.53 | 35.92 | 262.72 | 0.5845 | 708.0 | 499.1 | |
| 0.78 | 1.82 | 0.47 | 1.11 | -10.10 | 17.24 | 35.62 | 262.67 | 0.5804 | 765.0 | 665.2 | |
| 0.00 | 1.56 | 0.00 | 0.94 | -10.09 | 16.16 | 34.55 | 262.63 | 0.5651 | 214.0 | 306.9 | |
| 0.00 | 1.21 | 0.00 | 0.72 | -11.58 | 14.96 | 33.34 | 259.83 | 0.5492 | 769.0 | 610.1 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -11.81 | 11.90 | 30.29 | 258.88 | 0.5052 | -687.0 | -531.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
