SDO HMI 2014-03-12 12:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 106.36 | 416.68 | 62.65 | 246.02 | 5.65 | 11.43 | 30.36 | 292.31 | 0.5457 | 208.6 | -8.8 | |
|
previous
or next observation for the same group /

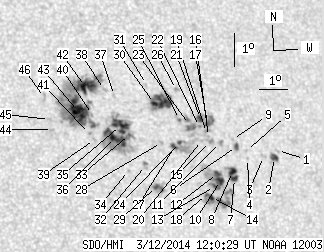

back to the solar disc SDO HMI 2014-03-12 12:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.48 | 0.00 | 0.92 | 5.38 | 16.15 | 35.08 | 288.83 | 0.6068 | -451.0 | -315.9 | |
| 3.12 | 6.33 | 1.94 | 3.93 | 5.16 | 16.02 | 34.96 | 288.55 | 0.6042 | -810.6 | -550.8 | |
| 0.00 | 2.43 | 0.00 | 1.50 | 5.16 | 15.62 | 34.55 | 288.78 | 0.5989 | -547.0 | -493.2 | |
| 0.00 | 0.87 | 0.00 | 0.53 | 5.06 | 15.03 | 33.97 | 288.94 | 0.5906 | -497.0 | -382.6 | |
| 0.00 | 0.95 | 0.00 | 0.59 | 5.30 | 15.01 | 33.95 | 289.34 | 0.5915 | -660.0 | -508.8 | |
| 1.56 | 3.12 | 0.95 | 1.91 | 5.40 | 14.66 | 33.59 | 289.70 | 0.5873 | -823.7 | -635.8 | |
| 3.12 | 12.24 | 1.90 | 7.43 | 4.41 | 14.53 | 33.46 | 288.19 | 0.5809 | -853.1 | -665.1 | |
| 4.25 | -7.00 | 2.58 | -7.00 | 4.62 | 14.47 | 33.40 | 288.56 | 0.5810 | -902.8 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.58 | 5.60 | 14.53 | 33.46 | 290.11 | 0.5866 | -594.0 | -469.5 | |
| 3.99 | 58.66 | 2.41 | 35.31 | 4.32 | 14.02 | 32.96 | 288.32 | 0.5736 | -1065.3 | -660.0 | |
| 0.00 | 2.69 | 0.00 | 1.63 | 5.48 | 14.09 | 33.02 | 290.17 | 0.5802 | -790.0 | -709.0 | |
| 3.04 | -10.00 | 1.83 | -10.00 | 4.52 | 13.93 | 32.86 | 288.71 | 0.5733 | -959.1 | 999999 | |
| 1.21 | -10.00 | 0.73 | -10.00 | 4.12 | 13.80 | 32.73 | 288.12 | 0.5697 | -1025.6 | 999999 | |
| 1.91 | -10.00 | 1.15 | -10.00 | 3.78 | 13.68 | 32.61 | 287.61 | 0.5664 | -1000.8 | 999999 | |
| 0.00 | 2.78 | 0.00 | 1.68 | 5.49 | 13.73 | 32.67 | 290.40 | 0.5755 | -999.0 | -869.6 | |
| 0.00 | 0.87 | 0.00 | 0.52 | 5.63 | 13.67 | 32.61 | 290.68 | 0.5754 | -885.0 | -755.1 | |
| 2.08 | 13.71 | 1.26 | 8.30 | 6.03 | 13.66 | 32.60 | 291.33 | 0.5774 | -924.6 | -614.0 | |
| 0.43 | -10.00 | 0.26 | -10.00 | 3.86 | 13.50 | 32.44 | 287.85 | 0.5644 | -954.2 | 999999 | |
| 0.00 | 3.04 | 0.00 | 1.84 | 5.75 | 13.61 | 32.54 | 290.91 | 0.5752 | -855.0 | -692.5 | |
| 0.00 | 1.13 | 0.00 | 0.68 | 5.49 | 13.41 | 32.35 | 290.62 | 0.5712 | -498.0 | -486.8 | |
| 2.78 | -17.00 | 1.68 | -17.00 | 6.17 | 13.42 | 32.36 | 291.71 | 0.5749 | -917.0 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.63 | 5.92 | 13.37 | 32.30 | 291.34 | 0.5729 | -908.0 | -868.1 | |
| 0.00 | 8.76 | 0.00 | 5.27 | 5.96 | 13.02 | 31.95 | 291.63 | 0.5684 | -690.0 | -928.4 | |
| 1.04 | 21.78 | 0.62 | 13.02 | 5.38 | 12.63 | 31.56 | 290.93 | 0.5601 | 643.2 | 109.1 | |
| 0.43 | 3.56 | 0.26 | 2.13 | 6.09 | 12.67 | 31.61 | 292.07 | 0.5646 | -1001.8 | -762.8 | |
| 0.00 | 2.08 | 0.00 | 1.25 | 7.00 | 12.63 | 31.57 | 293.59 | 0.5692 | -616.0 | -528.2 | |
| 2.00 | -24.00 | 1.19 | -24.00 | 5.25 | 12.45 | 31.38 | 290.83 | 0.5570 | 921.1 | 999999 | |
| 0.00 | 1.74 | 0.00 | 1.03 | 5.34 | 12.00 | 30.93 | 291.28 | 0.5514 | -800.0 | -632.0 | |
| 1.82 | 8.94 | 1.07 | 5.26 | 3.99 | 11.75 | 30.69 | 289.12 | 0.5410 | 979.0 | 689.0 | |
| 2.60 | 30.54 | 1.55 | 18.22 | 6.52 | 11.83 | 30.76 | 293.38 | 0.5558 | -1106.5 | -759.1 | |
| 0.00 | 0.52 | 0.00 | 0.31 | 7.09 | 11.59 | 30.52 | 294.48 | 0.5560 | -572.0 | -560.5 | |
| 0.00 | 3.64 | 0.00 | 2.14 | 4.60 | 11.40 | 30.33 | 290.42 | 0.5393 | 723.0 | 594.5 | |
| 0.78 | 80.87 | 0.46 | 47.23 | 5.51 | 10.89 | 29.83 | 292.35 | 0.5374 | 573.7 | 460.1 | |
| 0.00 | 1.04 | 0.00 | 0.61 | 4.41 | 10.80 | 29.74 | 290.49 | 0.5301 | 743.0 | 644.0 | |
| 12.15 | -33.00 | 7.11 | -33.00 | 5.77 | 10.60 | 29.53 | 293.00 | 0.5349 | 832.0 | 999999 | |
| 14.93 | -33.00 | 8.70 | -33.00 | 5.39 | 10.40 | 29.34 | 292.49 | 0.5301 | 1044.7 | 999999 | |
| 0.00 | 1.65 | 0.00 | 0.97 | 6.68 | 10.45 | 29.38 | 294.67 | 0.5384 | -14.0 | 43.1 | |
| 0.00 | 1.82 | 0.00 | 1.07 | 6.84 | 10.12 | 29.05 | 295.21 | 0.5350 | -106.0 | -121.6 | |
| 0.00 | 1.74 | 0.00 | 1.00 | 5.29 | 9.68 | 28.61 | 292.85 | 0.5196 | 808.0 | 673.9 | |
| 0.00 | 0.69 | 0.00 | 0.40 | 6.05 | 9.65 | 28.59 | 294.21 | 0.5238 | 505.0 | 480.2 | |
| 0.00 | 0.95 | 0.00 | 0.55 | 5.46 | 9.52 | 28.45 | 293.28 | 0.5184 | 876.0 | 812.3 | |
| 17.96 | 128.08 | 10.45 | 74.16 | 6.89 | 9.47 | 28.40 | 295.82 | 0.5267 | 787.1 | 576.2 | |
| 25.16 | -42.00 | 14.55 | -42.00 | 6.11 | 9.18 | 28.12 | 294.70 | 0.5178 | 1118.2 | 999999 | |
| 0.00 | 1.74 | 0.00 | 0.99 | 5.51 | 8.27 | 27.20 | 294.37 | 0.5016 | 884.0 | 713.8 | |
| 0.00 | 1.65 | 0.00 | 0.94 | 5.81 | 8.18 | 27.12 | 294.99 | 0.5023 | 737.0 | 630.3 | |
| 0.00 | 2.60 | 0.00 | 1.49 | 6.47 | 8.05 | 26.99 | 296.30 | 0.5050 | 645.0 | 670.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
