SDO HMI 2014-03-12 13:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.04 | 151.74 | 12.63 | 78.96 | -10.54 | 357.56 | 17.04 | 255.24 | 0.3023 | 385.3 | 294.6 | |
|
previous
or next observation for the same group /

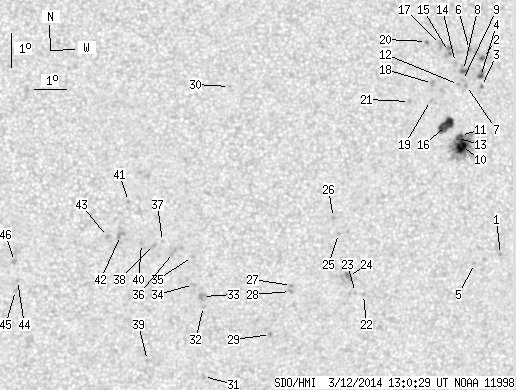

back to the solar disc SDO HMI 2014-03-12 13:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 0.69 | -13.10 | 1.64 | 21.12 | 252.45 | 0.3698 | 796.0 | 610.7 | |
| 0.78 | 4.16 | 0.41 | 2.19 | -7.29 | 0.67 | 20.15 | 268.47 | 0.3434 | 941.1 | 726.8 | |
| 0.00 | 1.47 | 0.00 | 0.78 | -8.12 | 0.68 | 20.16 | 266.03 | 0.3436 | 693.0 | 606.4 | |
| 1.21 | 4.42 | 0.64 | 2.33 | -7.82 | 0.63 | 20.12 | 266.89 | 0.3427 | 947.6 | 770.6 | |
| 0.00 | 0.87 | 0.00 | 0.46 | -13.40 | 0.82 | 20.30 | 251.08 | 0.3583 | 849.0 | 691.9 | |
| 0.00 | 1.39 | 0.00 | 0.73 | -7.03 | 0.25 | 19.73 | 269.24 | 0.3365 | 869.0 | 760.6 | |
| 0.00 | 0.87 | 0.00 | 0.46 | -8.11 | 0.20 | 19.68 | 266.03 | 0.3357 | 783.0 | 612.4 | |
| 0.87 | 4.08 | 0.46 | 2.14 | -7.67 | 0.08 | 19.57 | 267.35 | 0.3337 | 1074.6 | 871.4 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -7.97 | 0.06 | 19.55 | 266.45 | 0.3335 | 923.0 | 835.4 | |
| 8.59 | 50.32 | 4.52 | 26.46 | -9.93 | 0.14 | 19.62 | 260.58 | 0.3368 | 1295.5 | 509.9 | |
| 0.87 | -10.00 | 0.46 | -10.00 | -9.61 | 0.09 | 19.57 | 261.54 | 0.3354 | 908.3 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -8.09 | 359.94 | 19.43 | 266.07 | 0.3315 | 945.0 | 782.3 | |
| 0.87 | -10.00 | 0.46 | -10.00 | -9.70 | 360.00 | 19.48 | 261.23 | 0.3341 | 1151.8 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.73 | -7.44 | 359.82 | 19.30 | 268.04 | 0.3294 | 894.0 | 705.0 | |
| 0.00 | 6.68 | 0.00 | 3.50 | -7.12 | 359.58 | 19.06 | 269.03 | 0.3256 | 927.0 | 820.0 | |
| 10.85 | 14.84 | 5.68 | 7.77 | -9.33 | 359.62 | 19.11 | 262.26 | 0.3274 | 1138.2 | 813.3 | |
| 0.00 | 3.12 | 0.00 | 1.63 | -6.92 | 359.32 | 18.80 | 269.67 | 0.3214 | 859.0 | 761.1 | |
| 0.00 | 2.95 | 0.00 | 1.54 | -8.09 | 359.12 | 18.60 | 266.00 | 0.3179 | 912.0 | 770.8 | |
| 0.00 | 1.39 | 0.00 | 0.72 | -8.60 | 359.08 | 18.56 | 264.39 | 0.3176 | 699.0 | 661.1 | |
| 0.00 | 1.39 | 0.00 | 0.72 | -6.85 | 358.87 | 18.36 | 269.95 | 0.3141 | 946.0 | 904.6 | |
| 0.00 | 1.39 | 0.00 | 0.72 | -8.66 | 358.41 | 17.90 | 264.09 | 0.3068 | 1014.0 | 764.6 | |
| 0.00 | 1.30 | 0.00 | 0.68 | -14.47 | 357.31 | 16.79 | 244.79 | 0.3106 | 797.0 | 599.6 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -14.42 | 357.05 | 16.53 | 244.63 | 0.3064 | 884.0 | 747.0 | |
| 0.00 | 4.34 | 0.00 | 2.25 | -13.94 | 356.79 | 16.27 | 245.78 | 0.2996 | 924.0 | 839.6 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -12.67 | 356.39 | 15.87 | 249.45 | 0.2862 | 937.0 | 730.0 | |
| 0.00 | 1.74 | 0.00 | 0.90 | -12.20 | 356.20 | 15.68 | 250.86 | 0.2809 | 856.0 | 677.0 | |
| 0.00 | 1.39 | 0.00 | 0.71 | -14.27 | 355.00 | 14.48 | 242.34 | 0.2748 | 879.0 | 709.3 | |
| 0.00 | 1.91 | 0.00 | 0.98 | -14.45 | 354.98 | 14.46 | 241.72 | 0.2758 | 987.0 | 805.4 | |
| 0.00 | 1.39 | 0.00 | 0.72 | -15.76 | 354.43 | 13.91 | 236.62 | 0.2783 | -963.0 | -818.0 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -8.38 | 352.78 | 12.27 | 263.62 | 0.2125 | -788.0 | -591.2 | |
| 0.00 | 2.08 | 0.00 | 1.07 | -17.08 | 352.38 | 11.86 | 228.44 | 0.2638 | -788.0 | -637.8 | |
| 0.00 | 1.39 | 0.00 | 0.71 | -14.97 | 352.26 | 11.74 | 234.96 | 0.2412 | -609.0 | -581.6 | |
| 0.00 | 5.29 | 0.00 | 2.70 | -14.68 | 352.21 | 11.69 | 235.92 | 0.2378 | -857.0 | -735.5 | |
| 0.00 | 1.82 | 0.00 | 0.93 | -14.32 | 351.91 | 11.39 | 236.56 | 0.2304 | -890.0 | -683.5 | |
| 0.00 | 1.39 | 0.00 | 0.71 | -13.48 | 351.84 | 11.32 | 239.63 | 0.2222 | -914.0 | -660.3 | |
| 0.00 | 3.99 | 0.00 | 2.02 | -13.38 | 351.24 | 10.72 | 238.77 | 0.2127 | -965.0 | -741.9 | |
| 0.00 | 0.69 | 0.00 | 0.35 | -13.05 | 350.88 | 10.37 | 239.31 | 0.2048 | -867.0 | -664.8 | |
| 0.00 | 0.52 | 0.00 | 0.26 | -13.15 | 350.64 | 10.12 | 238.33 | 0.2020 | -950.0 | -733.2 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -16.64 | 350.58 | 10.06 | 225.27 | 0.2368 | -904.0 | -727.4 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -13.13 | 350.23 | 9.72 | 237.42 | 0.1960 | -949.0 | -760.2 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -11.88 | 349.79 | 9.27 | 242.17 | 0.1791 | -891.0 | -751.4 | |
| 0.00 | 3.21 | 0.00 | 1.62 | -12.90 | 349.58 | 9.06 | 236.68 | 0.1845 | -779.0 | -850.5 | |
| 0.00 | 2.26 | 0.00 | 1.14 | -12.94 | 349.17 | 8.66 | 235.35 | 0.1792 | -1021.0 | -749.2 | |
| 0.00 | 1.56 | 0.00 | 0.78 | -14.30 | 346.43 | 5.92 | 218.82 | 0.1601 | -789.0 | -482.1 | |
| 0.00 | 2.00 | 0.00 | 1.00 | -14.60 | 346.38 | 5.86 | 217.38 | 0.1636 | -881.0 | -608.8 | |
| 0.00 | 2.43 | 0.00 | 1.22 | -13.73 | 346.33 | 5.81 | 220.71 | 0.1515 | -963.0 | -756.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
