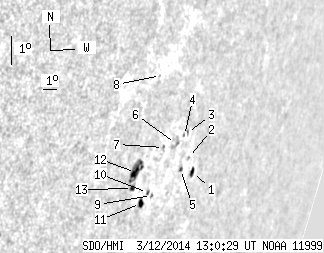

SDO HMI 2014-03-12 13:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.71 | 42.50 | 14.30 | 51.97 | -18.31 | 47.63 | 67.11 | 253.10 | 0.9155 | -48.2 | 56.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-12 13:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.26 | 3.64 | 3.10 | 5.01 | -18.08 | 50.61 | 70.09 | 253.35 | 0.9345 | 178.2 | 72.6 | |
| 0.00 | 1.21 | 0.00 | 1.62 | -17.69 | 49.90 | 69.39 | 253.78 | 0.9303 | 269.0 | 276.3 | |
| 0.00 | 1.65 | 0.00 | 2.15 | -16.99 | 49.24 | 68.72 | 254.54 | 0.9263 | 142.0 | 90.1 | |
| 0.00 | 0.52 | 0.00 | 0.67 | -17.10 | 49.07 | 68.55 | 254.42 | 0.9252 | 391.0 | 370.2 | |
| 0.69 | 1.65 | 0.91 | 2.17 | -18.11 | 49.54 | 69.03 | 253.33 | 0.9281 | 566.6 | 495.3 | |
| 0.00 | 5.81 | 0.00 | 7.36 | -17.41 | 48.54 | 68.03 | 254.09 | 0.9218 | 282.0 | 301.2 | |
| 0.00 | 1.30 | 0.00 | 1.60 | -17.63 | 47.71 | 67.20 | 253.86 | 0.9163 | 517.0 | 464.0 | |
| 0.00 | 0.52 | 0.00 | 0.60 | -15.59 | 46.08 | 65.56 | 256.12 | 0.9051 | 404.0 | 385.7 | |
| 0.00 | 1.30 | 0.00 | 1.61 | -19.11 | 47.90 | 67.39 | 252.25 | 0.9176 | -98.0 | -27.8 | |
| 0.00 | 1.39 | 0.00 | 1.69 | -19.05 | 47.53 | 67.02 | 252.30 | 0.9151 | -148.0 | -171.6 | |
| 2.60 | 4.16 | 3.14 | 5.02 | -19.43 | 47.27 | 66.75 | 251.89 | 0.9134 | -218.6 | -139.4 | |
| 4.77 | 16.57 | 5.53 | 19.23 | -18.58 | 46.21 | 65.69 | 252.81 | 0.9060 | -413.3 | -119.9 | |
| 1.39 | 2.78 | 1.62 | 3.24 | -19.06 | 46.34 | 65.83 | 252.28 | 0.9070 | -573.4 | -297.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
