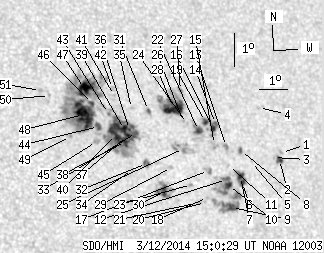

SDO HMI 2014-03-12 15:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 126.41 | 475.84 | 75.94 | 285.41 | 5.62 | 11.27 | 31.86 | 291.23 | 0.5655 | 96.0 | 92.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-12 15:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.47 | 0.00 | 0.94 | 5.41 | 16.23 | 36.81 | 287.96 | 0.6294 | -450.0 | -324.5 | |
| 2.69 | 4.60 | 1.71 | 2.92 | 5.19 | 16.14 | 36.72 | 287.67 | 0.6272 | -772.4 | -582.6 | |
| 0.00 | 0.52 | 0.00 | 0.33 | 5.23 | 15.92 | 36.50 | 287.85 | 0.6246 | -575.0 | -491.2 | |
| 0.00 | 1.30 | 0.00 | 0.82 | 6.72 | 15.48 | 36.06 | 290.35 | 0.6258 | -629.0 | -517.6 | |
| 0.00 | 0.61 | 0.00 | 0.38 | 5.05 | 15.09 | 35.67 | 288.00 | 0.6130 | -255.0 | -249.9 | |
| 3.12 | 11.62 | 1.94 | 7.22 | 4.38 | 14.72 | 35.30 | 287.15 | 0.6052 | -795.9 | -568.9 | |
| 4.08 | -6.00 | 2.53 | -6.00 | 4.56 | 14.65 | 35.24 | 287.46 | 0.6052 | -891.7 | 999999 | |
| 1.04 | 2.43 | 0.65 | 1.51 | 5.35 | 14.70 | 35.29 | 288.68 | 0.6094 | -765.5 | -609.8 | |
| 5.64 | 29.14 | 3.47 | 17.93 | 3.59 | 14.27 | 34.86 | 286.11 | 0.5960 | -892.8 | -722.1 | |
| 3.56 | 23.16 | 2.19 | 14.25 | 4.25 | 14.20 | 34.78 | 287.21 | 0.5978 | -1050.0 | -775.5 | |
| 0.00 | 1.04 | 0.00 | 0.64 | 4.86 | 14.23 | 34.82 | 288.16 | 0.6010 | -647.0 | -507.7 | |
| 1.91 | -10.00 | 1.18 | -10.00 | 4.43 | 14.13 | 34.72 | 287.53 | 0.5977 | -842.5 | 999999 | |
| 0.00 | 2.34 | 0.00 | 1.45 | 5.44 | 14.20 | 34.78 | 289.09 | 0.6031 | -811.0 | -691.8 | |
| 0.87 | 14.83 | 0.54 | 9.16 | 6.12 | 13.85 | 34.43 | 290.35 | 0.6018 | -562.2 | -622.2 | |
| 0.00 | 4.86 | 0.00 | 2.99 | 5.47 | 13.76 | 34.34 | 289.38 | 0.5976 | -805.0 | -737.8 | |
| 2.69 | -14.00 | 1.66 | -14.00 | 5.96 | 13.76 | 34.34 | 290.15 | 0.5999 | -811.0 | 999999 | |
| 0.00 | 4.42 | 0.00 | 2.71 | 4.66 | 13.49 | 34.08 | 288.24 | 0.5902 | -845.0 | -744.6 | |
| 0.00 | 1.04 | 0.00 | 0.63 | 3.83 | 13.42 | 34.00 | 286.94 | 0.5855 | -798.0 | -694.6 | |
| 2.26 | -14.00 | 1.39 | -14.00 | 6.15 | 13.48 | 34.07 | 290.62 | 0.5973 | -844.8 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.37 | 3.68 | 13.34 | 33.92 | 286.73 | 0.5837 | -767.0 | -697.3 | |
| 0.00 | 1.65 | 0.00 | 1.00 | 3.66 | 13.12 | 33.70 | 286.82 | 0.5807 | -921.0 | -585.1 | |
| 3.38 | 8.07 | 2.08 | 4.95 | 5.86 | 13.21 | 33.79 | 290.32 | 0.5922 | -1054.2 | -825.8 | |
| 0.00 | 1.47 | 0.00 | 0.89 | 4.19 | 12.86 | 33.44 | 287.83 | 0.5795 | 393.0 | 142.8 | |
| 0.00 | 0.78 | 0.00 | 0.48 | 6.04 | 12.83 | 33.41 | 290.84 | 0.5881 | -854.0 | -778.2 | |
| 0.00 | 15.70 | 0.00 | 9.54 | 5.27 | 12.63 | 33.21 | 289.72 | 0.5816 | -103.0 | 230.8 | |
| 0.00 | 1.04 | 0.00 | 0.64 | 6.09 | 12.69 | 33.27 | 291.01 | 0.5866 | -761.0 | -680.8 | |
| 0.00 | 2.52 | 0.00 | 1.54 | 7.04 | 12.65 | 33.24 | 292.53 | 0.5911 | -645.0 | -542.2 | |
| 20.82 | 41.20 | 12.68 | 25.09 | 6.50 | 12.36 | 32.94 | 291.86 | 0.5844 | -964.2 | -521.4 | |
| 0.00 | 1.73 | 0.00 | 1.05 | 4.66 | 12.17 | 32.75 | 288.99 | 0.5724 | 75.0 | 97.1 | |
| 5.20 | 17.17 | 3.12 | 10.30 | 3.91 | 11.88 | 32.46 | 287.91 | 0.5650 | 789.1 | 495.7 | |
| 0.87 | 2.08 | 0.52 | 1.25 | 6.35 | 11.46 | 32.04 | 292.21 | 0.5717 | -969.3 | -809.3 | |
| 0.00 | 4.34 | 0.00 | 2.59 | 4.72 | 11.28 | 31.87 | 289.63 | 0.5608 | 796.0 | 608.6 | |
| 0.95 | 97.93 | 0.57 | 58.15 | 5.64 | 10.99 | 31.57 | 291.37 | 0.5616 | -193.4 | 473.8 | |
| 0.00 | 1.04 | 0.00 | 0.62 | 4.50 | 10.78 | 31.36 | 289.58 | 0.5529 | 695.0 | 574.8 | |
| 0.00 | 1.30 | 0.00 | 0.78 | 6.37 | 10.86 | 31.44 | 292.65 | 0.5639 | -292.0 | -213.4 | |
| 0.61 | -33.00 | 0.36 | -33.00 | 5.72 | 10.75 | 31.33 | 291.65 | 0.5588 | 588.0 | 999999 | |
| 1.39 | -33.00 | 0.83 | -33.00 | 5.53 | 10.66 | 31.25 | 291.39 | 0.5567 | 900.2 | 999999 | |
| 2.69 | -33.00 | 1.60 | -33.00 | 5.34 | 10.58 | 31.16 | 291.13 | 0.5546 | 907.5 | 999999 | |
| 4.25 | -33.00 | 2.53 | -33.00 | 5.71 | 10.57 | 31.15 | 291.75 | 0.5564 | 922.4 | 999999 | |
| 7.81 | -33.00 | 4.63 | -33.00 | 5.53 | 10.24 | 30.83 | 291.68 | 0.5510 | 1179.1 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.57 | 6.73 | 10.29 | 30.87 | 293.64 | 0.5584 | 341.0 | 271.7 | |
| 0.00 | 2.69 | 0.00 | 1.60 | 6.94 | 10.23 | 30.82 | 294.03 | 0.5589 | -211.0 | -142.5 | |
| 0.35 | -33.00 | 0.21 | -33.00 | 6.16 | 10.04 | 30.62 | 292.88 | 0.5518 | 555.2 | 999999 | |
| 2.52 | 162.99 | 1.48 | 95.90 | 5.74 | 9.66 | 30.25 | 292.44 | 0.5444 | 920.0 | 455.2 | |
| 0.00 | 3.12 | 0.00 | 1.84 | 5.28 | 9.57 | 30.15 | 291.71 | 0.5405 | 760.0 | 702.3 | |
| 1.91 | -44.00 | 1.13 | -44.00 | 6.43 | 9.50 | 30.08 | 293.72 | 0.5462 | 670.1 | 999999 | |
| 12.66 | -44.00 | 7.47 | -44.00 | 6.88 | 9.25 | 29.84 | 294.65 | 0.5456 | 971.2 | 999999 | |
| 33.14 | -44.00 | 19.47 | -44.00 | 6.08 | 9.17 | 29.75 | 293.37 | 0.5396 | 1089.6 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.66 | 5.37 | 8.68 | 29.26 | 292.52 | 0.5289 | 987.0 | 887.6 | |
| 0.00 | 1.30 | 0.00 | 0.76 | 6.59 | 8.03 | 28.61 | 295.12 | 0.5275 | 798.0 | 614.5 | |
| 0.00 | 1.65 | 0.00 | 0.96 | 6.72 | 7.73 | 28.31 | 295.60 | 0.5244 | 851.0 | 738.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
