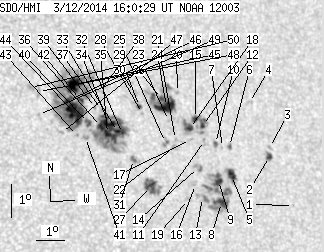

SDO HMI 2014-03-12 16:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 128.13 | 497.29 | 77.40 | 300.00 | 5.70 | 11.16 | 32.29 | 291.09 | 0.5718 | 163.8 | 83.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-12 16:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.61 | 0.00 | 0.39 | 3.74 | 17.01 | 38.14 | 284.83 | 0.6398 | 481.0 | 410.9 | |
| 2.78 | 4.77 | 1.77 | 3.05 | 5.17 | 16.19 | 37.32 | 287.35 | 0.6349 | -803.4 | -624.5 | |
| 0.00 | 1.82 | 0.00 | 1.17 | 5.44 | 16.21 | 37.34 | 287.75 | 0.6363 | -485.0 | -339.0 | |
| 0.00 | 2.95 | 0.00 | 1.88 | 6.77 | 15.57 | 36.70 | 290.06 | 0.6341 | -547.0 | -476.5 | |
| 6.16 | 10.06 | 3.85 | 6.29 | 4.48 | 14.73 | 35.86 | 287.02 | 0.6130 | -855.8 | -610.9 | |
| 0.69 | 2.43 | 0.44 | 1.52 | 5.36 | 14.71 | 35.84 | 288.39 | 0.6167 | -757.5 | -610.0 | |
| 0.00 | 0.78 | 0.00 | 0.49 | 5.31 | 14.45 | 35.58 | 288.45 | 0.6130 | -650.0 | -582.2 | |
| 7.29 | 51.87 | 4.52 | 32.16 | 3.63 | 14.31 | 35.45 | 285.89 | 0.6040 | -919.5 | -689.6 | |
| 6.07 | -8.00 | 3.77 | -8.00 | 4.29 | 14.24 | 35.37 | 286.97 | 0.6058 | -996.6 | 999999 | |
| 0.78 | 2.86 | 0.49 | 1.79 | 5.41 | 14.20 | 35.33 | 288.75 | 0.6102 | -831.1 | -694.4 | |
| 0.00 | 1.21 | 0.00 | 0.75 | 5.48 | 13.80 | 34.93 | 289.06 | 0.6053 | -880.0 | -768.9 | |
| 1.82 | 27.41 | 1.13 | 16.99 | 5.93 | 13.76 | 34.89 | 289.79 | 0.6069 | -836.1 | -675.1 | |
| 0.00 | 6.33 | 0.00 | 3.90 | 3.73 | 13.62 | 34.76 | 286.39 | 0.5952 | -380.0 | -753.6 | |
| 0.00 | 4.68 | 0.00 | 2.89 | 4.63 | 13.53 | 34.66 | 287.89 | 0.5979 | -842.0 | -737.8 | |
| 2.78 | -12.00 | 1.72 | -12.00 | 6.13 | 13.52 | 34.65 | 290.24 | 0.6048 | -822.6 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.59 | 4.11 | 13.39 | 34.52 | 287.12 | 0.5937 | -371.0 | -245.4 | |
| 0.00 | 1.30 | 0.00 | 0.80 | 5.47 | 13.29 | 34.42 | 289.34 | 0.5986 | -321.0 | -312.4 | |
| 3.56 | -12.00 | 2.20 | -12.00 | 5.80 | 13.27 | 34.41 | 289.87 | 0.6000 | -1067.0 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.11 | 3.63 | 13.11 | 34.24 | 286.49 | 0.5879 | -379.0 | -471.3 | |
| 0.00 | 1.30 | 0.00 | 0.80 | 6.88 | 12.92 | 34.06 | 291.76 | 0.6009 | -483.0 | -397.6 | |
| 0.00 | 1.47 | 0.00 | 0.90 | 5.43 | 12.74 | 33.87 | 289.59 | 0.5912 | 335.0 | 199.0 | |
| 0.00 | 2.69 | 0.00 | 1.64 | 5.18 | 12.65 | 33.79 | 289.24 | 0.5888 | 458.0 | 234.0 | |
| 0.00 | 1.21 | 0.00 | 0.74 | 6.00 | 12.53 | 33.66 | 290.62 | 0.5912 | -812.0 | -666.4 | |
| 15.00 | 46.84 | 9.21 | 28.73 | 6.42 | 12.49 | 33.62 | 291.31 | 0.5928 | -1004.9 | -582.9 | |
| 0.00 | 4.34 | 0.00 | 2.65 | 5.31 | 12.37 | 33.51 | 289.62 | 0.5858 | 609.0 | 582.5 | |
| 2.08 | -24.00 | 1.28 | -24.00 | 6.65 | 12.33 | 33.46 | 291.78 | 0.5920 | -807.0 | 999999 | |
| 8.07 | 18.56 | 4.86 | 11.19 | 3.93 | 11.76 | 32.89 | 287.71 | 0.5710 | 841.9 | 533.3 | |
| 0.00 | 0.95 | 0.00 | 0.58 | 6.15 | 11.61 | 32.74 | 291.43 | 0.5798 | -721.0 | -546.6 | |
| 1.39 | 4.77 | 0.84 | 2.89 | 6.35 | 11.51 | 32.65 | 291.82 | 0.5797 | -931.6 | -483.3 | |
| 0.00 | 2.95 | 0.00 | 1.79 | 6.77 | 11.37 | 32.50 | 292.59 | 0.5801 | -170.0 | -164.1 | |
| 0.87 | 4.25 | 0.52 | 2.55 | 4.72 | 11.20 | 32.33 | 289.34 | 0.5671 | 791.3 | 588.1 | |
| 0.78 | 265.40 | 0.47 | 157.54 | 5.48 | 10.85 | 31.98 | 290.83 | 0.5663 | 623.3 | 470.9 | |
| 1.65 | -32.00 | 0.99 | -32.00 | 5.53 | 10.68 | 31.81 | 291.03 | 0.5643 | 861.1 | 999999 | |
| 7.29 | -32.00 | 4.35 | -32.00 | 5.76 | 10.38 | 31.51 | 291.60 | 0.5614 | 997.2 | 999999 | |
| 3.82 | -32.00 | 2.28 | -32.00 | 5.45 | 10.32 | 31.45 | 291.12 | 0.5590 | 1162.6 | 999999 | |
| 3.47 | -32.00 | 2.07 | -32.00 | 5.65 | 10.12 | 31.26 | 291.59 | 0.5574 | 1187.6 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.19 | 6.17 | 10.16 | 31.29 | 292.43 | 0.5608 | -174.0 | -73.0 | |
| 0.00 | 2.95 | 0.00 | 1.77 | 6.72 | 10.12 | 31.26 | 293.35 | 0.5635 | 335.0 | 186.8 | |
| 0.00 | 0.95 | 0.00 | 0.57 | 6.22 | 9.95 | 31.08 | 292.65 | 0.5583 | 515.0 | 361.0 | |
| 2.34 | -32.00 | 1.39 | -32.00 | 5.74 | 9.67 | 30.81 | 292.05 | 0.5519 | 956.8 | 999999 | |
| 0.00 | 2.95 | 0.00 | 1.74 | 5.28 | 9.54 | 30.67 | 291.35 | 0.5476 | 733.0 | 690.2 | |
| 1.82 | -32.00 | 1.08 | -32.00 | 6.43 | 9.44 | 30.57 | 293.36 | 0.5527 | 662.8 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.56 | 5.32 | 9.27 | 30.40 | 291.61 | 0.5441 | 828.0 | 662.3 | |
| 26.11 | -32.00 | 15.43 | -32.00 | 6.02 | 9.20 | 30.34 | 292.84 | 0.5472 | 1137.1 | 999999 | |
| 16.22 | -32.00 | 9.62 | -32.00 | 6.87 | 9.23 | 30.36 | 294.26 | 0.5526 | 977.0 | 999999 | |
| 5.29 | -32.00 | 3.12 | -32.00 | 6.37 | 9.02 | 30.15 | 293.57 | 0.5468 | 1018.0 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.17 | 5.38 | 8.71 | 29.85 | 292.10 | 0.5369 | 886.0 | 758.0 | |
| 0.00 | 4.16 | 0.00 | 2.44 | 6.58 | 8.00 | 29.13 | 294.71 | 0.5344 | 709.0 | 638.9 | |
| 0.00 | 1.39 | 0.00 | 0.81 | 5.88 | 7.95 | 29.08 | 293.53 | 0.5295 | 781.0 | 612.1 | |
| 0.00 | 3.38 | 0.00 | 1.98 | 6.69 | 7.73 | 28.86 | 295.10 | 0.5315 | 829.0 | 684.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
