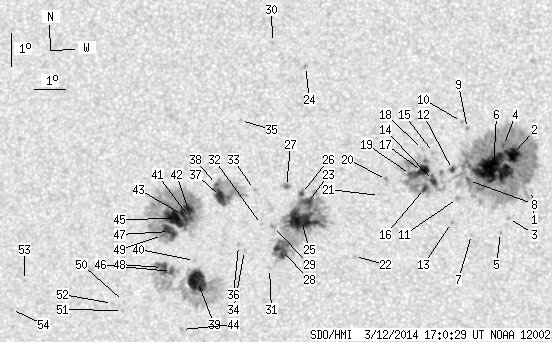

SDO HMI 2014-03-12 17:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 256.69 | 1160.70 | 134.47 | 606.48 | -18.77 | 324.09 | -14.22 | 132.82 | 0.3123 | -11.0 | 37.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-12 17:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.25 | 0.00 | 1.15 | -18.54 | 330.28 | -8.03 | 146.17 | 0.2390 | 172.0 | 66.2 | |
| 14.48 | 532.76 | 7.37 | 272.13 | -17.43 | 329.74 | -8.58 | 141.51 | 0.2297 | 1486.9 | 446.6 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -19.37 | 329.51 | -8.81 | 145.76 | 0.2579 | 787.0 | 625.1 | |
| 1.30 | -2.00 | 0.66 | -2.00 | -17.16 | 329.47 | -8.85 | 139.85 | 0.2290 | 921.9 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -19.79 | 329.23 | -9.09 | 145.90 | 0.2663 | -710.0 | -505.1 | |
| 59.49 | -2.00 | 30.36 | -2.00 | -17.85 | 329.11 | -9.20 | 140.74 | 0.2416 | 1358.3 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -19.84 | 328.29 | -10.02 | 143.41 | 0.2759 | 723.0 | 554.5 | |
| 1.73 | -2.00 | 0.89 | -2.00 | -18.19 | 328.30 | -10.01 | 139.36 | 0.2548 | 573.7 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.93 | -16.62 | 328.36 | -9.96 | 134.95 | 0.2352 | 1034.0 | 786.4 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -16.40 | 328.18 | -10.13 | 133.78 | 0.2349 | 832.0 | 746.2 | |
| 0.00 | 1.99 | 0.00 | 1.02 | -18.73 | 327.92 | -10.40 | 139.73 | 0.2657 | 886.0 | 765.6 | |
| 1.82 | 3.99 | 0.93 | 2.04 | -17.85 | 327.81 | -10.50 | 137.10 | 0.2560 | 1023.7 | 660.1 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -19.46 | 327.68 | -10.64 | 140.91 | 0.2773 | -734.0 | -549.3 | |
| 4.68 | -2.00 | 2.41 | -2.00 | -18.17 | 327.19 | -11.13 | 136.38 | 0.2670 | 1092.0 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.71 | -17.32 | 327.24 | -11.07 | 134.13 | 0.2566 | 1009.0 | 761.9 | |
| 2.86 | -2.00 | 1.47 | -2.00 | -18.40 | 326.88 | -11.43 | 136.27 | 0.2733 | 785.1 | 999999 | |
| 11.19 | -2.00 | 5.75 | -2.00 | -17.88 | 326.85 | -11.46 | 134.79 | 0.2677 | 1117.5 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.71 | -17.22 | 326.90 | -11.42 | 133.00 | 0.2597 | 671.0 | 496.2 | |
| 1.21 | -2.00 | 0.62 | -2.00 | -17.97 | 326.47 | -11.85 | 134.10 | 0.2732 | 891.9 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.94 | -18.10 | 325.69 | -12.63 | 132.72 | 0.2841 | 906.0 | 730.0 | |
| 0.00 | 0.26 | 0.00 | 0.13 | -18.58 | 325.43 | -12.89 | 133.43 | 0.2925 | 552.0 | 538.7 | |
| 0.00 | 1.47 | 0.00 | 0.77 | -20.41 | 324.46 | -13.86 | 135.93 | 0.3242 | -867.0 | -676.3 | |
| 9.28 | 171.54 | 4.85 | 90.08 | -18.72 | 323.08 | -15.24 | 129.31 | 0.3231 | -9.6 | -308.9 | |
| 0.00 | 1.56 | 0.00 | 0.81 | -14.61 | 323.35 | -14.96 | 118.05 | 0.2844 | 921.0 | 795.4 | |
| 36.86 | -23.00 | 19.34 | -23.00 | -19.26 | 322.83 | -15.48 | 130.22 | 0.3315 | -1184.5 | 999999 | |
| 1.30 | -23.00 | 0.68 | -23.00 | -18.44 | 322.91 | -15.41 | 128.31 | 0.3226 | 523.9 | 999999 | |
| 0.95 | 3.04 | 0.50 | 1.59 | -18.21 | 322.44 | -15.87 | 126.96 | 0.3266 | 1002.5 | 788.5 | |
| 14.74 | -23.00 | 7.79 | -23.00 | -20.12 | 322.09 | -16.23 | 131.01 | 0.3493 | 1034.4 | 999999 | |
| 0.00 | 2.43 | 0.00 | 1.28 | -19.41 | 321.90 | -16.42 | 129.05 | 0.3448 | 291.0 | 171.0 | |
| 0.00 | 1.56 | 0.00 | 0.81 | -13.86 | 322.36 | -15.96 | 114.31 | 0.2943 | 786.0 | 533.2 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -20.68 | 321.62 | -16.69 | 131.54 | 0.3606 | 770.0 | 554.8 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -19.33 | 321.51 | -16.81 | 128.27 | 0.3490 | 668.0 | 437.0 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -18.26 | 321.39 | -16.92 | 125.48 | 0.3410 | 676.0 | 572.8 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -20.11 | 320.86 | -17.46 | 129.07 | 0.3644 | -891.0 | -651.1 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -16.16 | 321.14 | -17.18 | 119.60 | 0.3277 | 820.0 | 657.9 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -19.95 | 320.68 | -17.64 | 128.45 | 0.3652 | -913.0 | -721.9 | |
| 10.84 | 52.38 | 5.75 | 27.71 | -18.43 | 320.25 | -18.06 | 124.30 | 0.3576 | -1187.9 | -574.7 | |
| 1.04 | -37.00 | 0.55 | -37.00 | -18.07 | 320.16 | -18.15 | 123.28 | 0.3558 | -988.0 | 999999 | |
| 27.84 | 155.67 | 14.99 | 84.02 | -20.99 | 319.17 | -19.14 | 128.65 | 0.3937 | -1168.9 | -278.6 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -20.35 | 319.16 | -19.16 | 127.24 | 0.3882 | -1043.0 | -845.6 | |
| 3.04 | 205.02 | 1.62 | 109.85 | -19.06 | 319.19 | -19.13 | 124.40 | 0.3770 | -1115.6 | -457.2 | |
| 6.07 | -41.00 | 3.24 | -41.00 | -18.79 | 319.15 | -19.16 | 123.71 | 0.3752 | -1434.9 | 999999 | |
| 5.64 | -41.00 | 3.02 | -41.00 | -18.96 | 318.96 | -19.35 | 123.89 | 0.3791 | -1283.3 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.80 | -22.44 | 318.42 | -19.89 | 130.62 | 0.4161 | 679.0 | 475.0 | |
| 18.21 | -41.00 | 9.76 | -41.00 | -19.04 | 318.65 | -19.66 | 123.69 | 0.3839 | -1177.0 | 999999 | |
| 2.78 | -39.00 | 1.50 | -39.00 | -20.65 | 318.34 | -19.97 | 126.85 | 0.4012 | -1076.7 | 999999 | |
| 10.67 | -41.00 | 5.73 | -41.00 | -19.43 | 318.44 | -19.88 | 124.31 | 0.3899 | -995.3 | 999999 | |
| 7.28 | -39.00 | 3.94 | -39.00 | -20.51 | 318.05 | -20.26 | 126.22 | 0.4037 | -933.9 | 999999 | |
| 1.39 | -41.00 | 0.75 | -41.00 | -19.54 | 318.19 | -20.13 | 124.26 | 0.3941 | -694.5 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -21.50 | 316.57 | -21.74 | 126.52 | 0.4306 | -706.0 | -530.1 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -21.77 | 316.50 | -21.82 | 126.97 | 0.4339 | -737.0 | -565.0 | |
| 0.00 | 1.13 | 0.00 | 0.62 | -21.54 | 316.19 | -22.13 | 126.18 | 0.4359 | -759.0 | -618.8 | |
| 0.00 | 0.78 | 0.00 | 0.44 | -20.69 | 313.26 | -25.05 | 121.65 | 0.4673 | -630.0 | -536.3 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -21.55 | 312.65 | -25.67 | 122.76 | 0.4811 | -768.0 | -505.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
