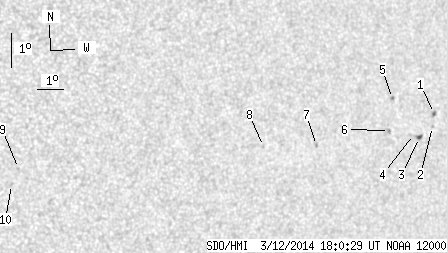

SDO HMI 2014-03-12 18:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.08 | 13.80 | 1.46 | 9.23 | -9.46 | 20.19 | 42.43 | 263.64 | 0.6698 | 104.4 | 125.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-12 18:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.69 | 1.73 | 0.49 | 1.22 | -8.58 | 23.33 | 45.57 | 265.05 | 0.7111 | 726.4 | 562.2 | |
| 0.00 | 0.87 | 0.00 | 0.61 | -8.97 | 23.31 | 45.55 | 264.50 | 0.7107 | 489.0 | 445.0 | |
| 1.39 | 2.78 | 0.97 | 1.93 | -9.34 | 22.81 | 45.05 | 263.98 | 0.7045 | 697.1 | 615.8 | |
| 0.00 | 1.91 | 0.00 | 1.32 | -9.28 | 22.54 | 44.78 | 264.08 | 0.7012 | 191.0 | 286.9 | |
| 0.00 | 1.30 | 0.00 | 0.89 | -8.29 | 21.51 | 43.74 | 265.55 | 0.6886 | -783.0 | -668.3 | |
| 0.00 | 1.21 | 0.00 | 0.83 | -9.24 | 21.52 | 43.76 | 264.15 | 0.6886 | -677.0 | -530.5 | |
| 0.00 | 1.13 | 0.00 | 0.73 | -9.93 | 18.64 | 40.87 | 263.13 | 0.6515 | 604.0 | 548.2 | |
| 0.00 | 1.13 | 0.00 | 0.71 | -10.12 | 16.57 | 38.81 | 262.78 | 0.6241 | 703.0 | 587.5 | |
| 0.00 | 0.61 | 0.00 | 0.35 | -11.39 | 7.71 | 29.94 | 259.64 | 0.4994 | -720.0 | -614.4 | |
| 0.00 | 1.13 | 0.00 | 0.64 | -11.88 | 7.52 | 29.75 | 258.62 | 0.4974 | -473.0 | -405.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
