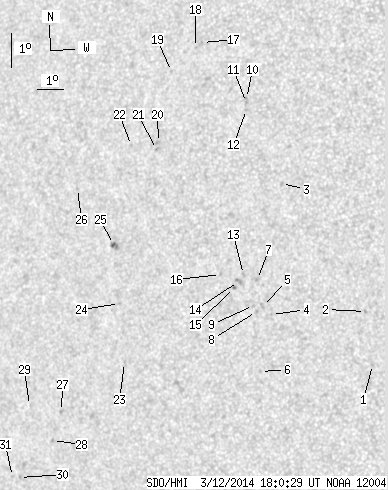

SDO HMI 2014-03-12 18:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.04 | 41.97 | 0.67 | 26.15 | -10.14 | 300.30 | -37.46 | 97.22 | 0.6060 | 276.2 | 182.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-12 18:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.70 | -13.57 | 306.84 | -30.92 | 104.40 | 0.5178 | 606.0 | 475.1 | |
| 0.00 | 1.04 | 0.00 | 0.60 | -11.98 | 306.81 | -30.95 | 101.32 | 0.5152 | 668.0 | 553.4 | |
| 0.00 | 1.65 | 0.00 | 0.98 | -7.98 | 304.25 | -33.51 | 93.57 | 0.5500 | 623.0 | 424.1 | |
| 0.00 | 0.78 | 0.00 | 0.47 | -11.84 | 303.43 | -34.34 | 100.49 | 0.5636 | 686.0 | 591.0 | |
| 0.00 | 2.17 | 0.00 | 1.30 | -11.58 | 303.13 | -34.63 | 99.99 | 0.5675 | 745.0 | 630.7 | |
| 0.00 | 1.30 | 0.00 | 0.79 | -13.51 | 302.75 | -35.01 | 103.30 | 0.5754 | 527.0 | 423.1 | |
| 0.00 | 1.65 | 0.00 | 0.99 | -10.76 | 303.06 | -34.71 | 98.54 | 0.5678 | 547.0 | 476.8 | |
| 0.00 | 1.30 | 0.00 | 0.78 | -11.71 | 302.89 | -34.87 | 100.19 | 0.5710 | 548.0 | 449.9 | |
| 0.00 | 1.21 | 0.00 | 0.73 | -11.53 | 302.80 | -34.96 | 99.85 | 0.5720 | 602.0 | 447.1 | |
| 0.00 | 0.95 | 0.00 | 0.57 | -5.36 | 303.19 | -34.57 | 88.97 | 0.5672 | 690.0 | 594.8 | |
| 0.00 | 0.95 | 0.00 | 0.57 | -5.48 | 303.19 | -34.58 | 89.18 | 0.5672 | 748.0 | 552.8 | |
| 0.00 | 1.30 | 0.00 | 0.78 | -5.69 | 303.17 | -34.59 | 89.55 | 0.5672 | 721.0 | 611.5 | |
| 0.00 | 1.65 | 0.00 | 1.00 | -10.58 | 302.56 | -35.20 | 98.17 | 0.5746 | 577.0 | 445.2 | |
| 0.00 | 2.78 | 0.00 | 1.68 | -10.77 | 302.35 | -35.41 | 98.49 | 0.5778 | 690.0 | 581.9 | |
| 0.00 | 1.30 | 0.00 | 0.79 | -10.94 | 302.18 | -35.58 | 98.77 | 0.5803 | 514.0 | 446.8 | |
| 0.00 | 1.04 | 0.00 | 0.64 | -10.52 | 301.71 | -36.05 | 98.00 | 0.5865 | 550.0 | 490.2 | |
| 0.00 | 0.61 | 0.00 | 0.37 | -3.58 | 301.68 | -36.08 | 86.18 | 0.5914 | 575.0 | 380.4 | |
| 0.00 | 0.87 | 0.00 | 0.53 | -3.71 | 301.41 | -36.35 | 86.45 | 0.5949 | 817.0 | 668.5 | |
| 0.00 | 1.13 | 0.00 | 0.70 | -4.35 | 300.48 | -37.28 | 87.70 | 0.6067 | 401.0 | 344.2 | |
| 0.00 | 2.08 | 0.00 | 1.30 | -6.42 | 299.84 | -37.93 | 91.19 | 0.6132 | 701.0 | 657.8 | |
| 0.00 | 1.21 | 0.00 | 0.76 | -6.63 | 299.74 | -38.02 | 91.53 | 0.6144 | 751.0 | 616.9 | |
| 0.00 | 0.78 | 0.00 | 0.50 | -6.43 | 298.80 | -38.97 | 91.30 | 0.6273 | 710.0 | 581.1 | |
| 0.00 | 0.78 | 0.00 | 0.50 | -12.84 | 297.61 | -40.15 | 101.43 | 0.6437 | -553.0 | -421.3 | |
| 0.00 | 0.95 | 0.00 | 0.61 | -11.08 | 297.73 | -40.04 | 98.68 | 0.6409 | -785.0 | -675.1 | |
| 1.04 | 4.51 | 0.67 | 2.90 | -9.31 | 297.76 | -40.00 | 95.91 | 0.6400 | -890.4 | -742.2 | |
| 0.00 | 1.04 | 0.00 | 0.68 | -7.54 | 296.56 | -41.21 | 93.20 | 0.6564 | -642.0 | -469.3 | |
| 0.00 | 2.17 | 0.00 | 1.46 | -14.09 | 294.75 | -43.01 | 102.98 | 0.6813 | -688.0 | -516.4 | |
| 0.00 | 0.87 | 0.00 | 0.59 | -14.92 | 294.17 | -43.60 | 104.12 | 0.6894 | -700.0 | -581.4 | |
| 0.00 | 0.69 | 0.00 | 0.48 | -13.80 | 293.46 | -44.30 | 102.42 | 0.6969 | -481.0 | -467.9 | |
| 0.00 | 1.13 | 0.00 | 0.79 | -15.90 | 292.47 | -45.30 | 105.29 | 0.7110 | -590.0 | -524.7 | |
| 0.00 | 0.87 | 0.00 | 0.61 | -15.84 | 292.17 | -45.59 | 105.17 | 0.7144 | -491.0 | -380.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
