SDO HMI 2014-03-12 19:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.58 | 125.20 | 15.89 | 66.63 | -10.09 | 358.14 | 20.93 | 259.32 | 0.3621 | 433.0 | 379.7 | |
|
previous
or next observation for the same group /

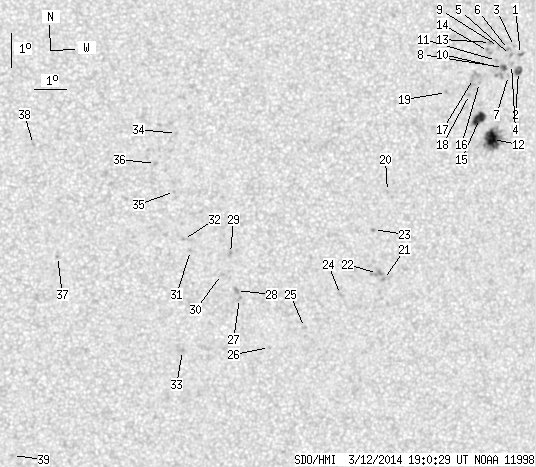

back to the solar disc SDO HMI 2014-03-12 19:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.08 | 0.00 | 1.12 | -7.32 | 0.89 | 23.68 | 268.22 | 0.4003 | 792.0 | 596.0 | |
| 2.78 | 5.64 | 1.50 | 3.04 | -7.82 | 0.86 | 23.64 | 266.95 | 0.3996 | 825.1 | 622.1 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -7.09 | 0.68 | 23.47 | 268.81 | 0.3970 | 688.0 | 534.8 | |
| 0.00 | 1.39 | 0.00 | 0.75 | -7.63 | 0.62 | 23.40 | 267.45 | 0.3958 | 697.0 | 589.0 | |
| 0.00 | 1.30 | 0.00 | 0.70 | -7.36 | 0.57 | 23.36 | 268.12 | 0.3951 | 860.0 | 728.5 | |
| 0.00 | 2.17 | 0.00 | 1.17 | -7.19 | 0.49 | 23.28 | 268.57 | 0.3939 | 883.0 | 730.8 | |
| 0.00 | 1.30 | 0.00 | 0.70 | -7.96 | 0.54 | 23.32 | 266.60 | 0.3945 | 708.0 | 558.3 | |
| 1.56 | 7.37 | 0.84 | 3.96 | -7.73 | 0.36 | 23.15 | 267.19 | 0.3917 | 1035.8 | 811.6 | |
| 0.00 | 1.82 | 0.00 | 0.98 | -7.11 | 0.16 | 22.95 | 268.79 | 0.3887 | 867.0 | 734.6 | |
| 0.00 | 2.86 | 0.00 | 1.54 | -7.74 | 0.20 | 22.98 | 267.17 | 0.3891 | 710.0 | 672.6 | |
| 0.00 | 1.56 | 0.00 | 0.84 | -7.53 | 0.12 | 22.91 | 267.70 | 0.3879 | 1016.0 | 764.3 | |
| 16.13 | 33.39 | 8.67 | 17.95 | -9.89 | 0.14 | 22.93 | 261.62 | 0.3896 | 1174.1 | 506.8 | |
| 0.00 | 1.56 | 0.00 | 0.84 | -7.01 | 359.90 | 22.68 | 269.09 | 0.3845 | 787.0 | 717.3 | |
| 0.00 | 3.21 | 0.00 | 1.72 | -7.28 | 359.85 | 22.63 | 268.38 | 0.3835 | 823.0 | 790.6 | |
| 9.11 | 12.23 | 4.88 | 6.55 | -9.28 | 359.67 | 22.46 | 263.10 | 0.3814 | 1098.6 | 761.4 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -8.21 | 359.60 | 22.39 | 265.92 | 0.3796 | 801.0 | 640.0 | |
| 0.00 | 8.93 | 0.00 | 4.77 | -8.10 | 359.40 | 22.19 | 266.20 | 0.3764 | 885.0 | 772.7 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -8.58 | 359.30 | 22.09 | 264.91 | 0.3749 | 806.0 | 557.6 | |
| 0.00 | 1.47 | 0.00 | 0.78 | -8.56 | 358.55 | 21.34 | 264.91 | 0.3629 | 851.0 | 629.9 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -11.59 | 356.84 | 19.63 | 255.77 | 0.3410 | 827.0 | 717.3 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -14.22 | 356.93 | 19.71 | 248.44 | 0.3531 | 880.0 | 715.3 | |
| 0.00 | 5.46 | 0.00 | 2.89 | -14.05 | 356.72 | 19.50 | 248.73 | 0.3491 | 846.0 | 779.9 | |
| 0.00 | 1.30 | 0.00 | 0.68 | -12.74 | 356.48 | 19.27 | 252.22 | 0.3395 | 962.0 | 843.5 | |
| 0.00 | 2.69 | 0.00 | 1.41 | -14.72 | 355.57 | 18.36 | 245.79 | 0.3355 | 929.0 | 624.5 | |
| 0.00 | 1.47 | 0.00 | 0.77 | -15.76 | 354.49 | 17.28 | 241.68 | 0.3262 | -723.0 | -599.4 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -16.40 | 353.42 | 16.20 | 238.44 | 0.3156 | -711.0 | -560.6 | |
| 0.00 | 1.65 | 0.00 | 0.85 | -14.95 | 352.34 | 15.13 | 241.14 | 0.2892 | -745.0 | -596.4 | |
| 0.00 | 2.95 | 0.00 | 1.52 | -14.72 | 352.23 | 15.01 | 241.72 | 0.2858 | -988.0 | -810.9 | |
| 0.00 | 1.65 | 0.00 | 0.85 | -13.61 | 351.96 | 14.75 | 244.97 | 0.2744 | -939.0 | -747.9 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -14.25 | 351.72 | 14.51 | 242.48 | 0.2750 | -783.0 | -615.6 | |
| 0.00 | 1.47 | 0.00 | 0.75 | -13.56 | 350.70 | 13.48 | 243.30 | 0.2549 | -774.0 | -652.4 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -13.24 | 350.46 | 13.25 | 244.11 | 0.2491 | -841.0 | -675.3 | |
| 0.00 | 1.39 | 0.00 | 0.72 | -16.57 | 350.63 | 13.42 | 233.28 | 0.2788 | -764.0 | -715.9 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -10.08 | 350.09 | 12.88 | 256.38 | 0.2269 | -839.0 | -638.9 | |
| 0.00 | 0.52 | 0.00 | 0.27 | -11.81 | 350.10 | 12.89 | 249.12 | 0.2348 | -708.0 | -597.2 | |
| 0.00 | 1.73 | 0.00 | 0.88 | -10.99 | 349.48 | 12.27 | 251.75 | 0.2206 | -786.0 | -703.8 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -13.84 | 346.55 | 9.34 | 233.40 | 0.1972 | -970.0 | -682.0 | |
| 0.00 | 1.56 | 0.00 | 0.78 | -10.50 | 345.70 | 8.49 | 247.94 | 0.1573 | -837.0 | -589.1 | |
| 0.00 | 1.13 | 0.00 | 0.58 | -19.87 | 345.41 | 8.20 | 211.31 | 0.2591 | -825.0 | -636.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
