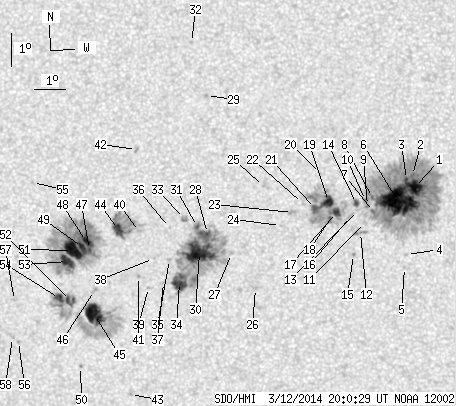

SDO HMI 2014-03-12 20:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 259.73 | 1166.09 | 134.86 | 604.69 | -18.76 | 324.28 | -12.38 | 136.93 | 0.2908 | 82.8 | -2.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-12 20:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.17 | 442.90 | 9.71 | 224.87 | -17.44 | 329.78 | -6.88 | 147.37 | 0.2129 | 1465.6 | 398.9 | |
| 1.21 | -1.00 | 0.61 | -1.00 | -17.08 | 329.73 | -6.93 | 146.20 | 0.2082 | 1142.1 | 999999 | |
| 1.82 | -1.00 | 0.92 | -1.00 | -17.20 | 329.54 | -7.12 | 145.81 | 0.2117 | 1126.8 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.58 | -19.47 | 329.44 | -7.22 | 150.95 | 0.2451 | 647.0 | 436.8 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -19.87 | 329.36 | -7.30 | 151.49 | 0.2516 | -530.0 | -371.1 | |
| 69.64 | -1.00 | 35.38 | -1.00 | -17.86 | 329.26 | -7.40 | 146.58 | 0.2236 | 1322.7 | 999999 | |
| 0.78 | -1.00 | 0.40 | -1.00 | -18.15 | 328.46 | -8.20 | 144.62 | 0.2353 | 820.3 | 999999 | |
| 0.69 | -1.00 | 0.35 | -1.00 | -17.72 | 328.45 | -8.21 | 143.46 | 0.2296 | 929.0 | 999999 | |
| 0.35 | -1.00 | 0.18 | -1.00 | -17.96 | 328.28 | -8.38 | 143.55 | 0.2345 | 958.0 | 999999 | |
| 0.61 | -1.00 | 0.31 | -1.00 | -17.81 | 328.22 | -8.44 | 142.97 | 0.2331 | 929.1 | 999999 | |
| 0.00 | 2.08 | 0.00 | 1.06 | -18.48 | 328.16 | -8.50 | 144.50 | 0.2427 | 60.0 | 148.7 | |
| 0.00 | 4.86 | 0.00 | 2.48 | -18.78 | 328.01 | -8.65 | 144.81 | 0.2481 | 708.0 | 612.1 | |
| 0.00 | 0.43 | 0.00 | 0.22 | -18.11 | 327.95 | -8.71 | 142.92 | 0.2398 | 760.0 | 650.4 | |
| 2.25 | 4.08 | 1.15 | 2.08 | -17.89 | 327.93 | -8.73 | 142.29 | 0.2372 | 1086.7 | 758.2 | |
| 0.00 | 1.13 | 0.00 | 0.58 | -19.44 | 327.75 | -8.91 | 145.60 | 0.2596 | -972.0 | -782.3 | |
| 0.00 | 2.69 | 0.00 | 1.37 | -18.28 | 327.72 | -8.94 | 142.68 | 0.2445 | 826.0 | 630.3 | |
| 4.86 | 92.88 | 2.48 | 47.49 | -18.15 | 327.28 | -9.38 | 141.04 | 0.2473 | 1104.3 | 397.8 | |
| 1.56 | -17.00 | 0.80 | -17.00 | -18.36 | 327.05 | -9.61 | 140.91 | 0.2525 | 815.6 | 999999 | |
| 9.19 | -17.00 | 4.70 | -17.00 | -17.82 | 327.05 | -9.61 | 139.44 | 0.2456 | 1224.4 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -16.96 | 326.84 | -9.82 | 136.38 | 0.2375 | 717.0 | 600.9 | |
| 3.12 | -17.00 | 1.60 | -17.00 | -18.02 | 326.62 | -10.04 | 138.81 | 0.2528 | 856.0 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -17.86 | 326.22 | -10.44 | 137.27 | 0.2554 | 717.0 | 573.4 | |
| 0.00 | 3.64 | 0.00 | 1.87 | -18.12 | 325.89 | -10.78 | 137.13 | 0.2624 | 858.0 | 686.8 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -18.51 | 325.48 | -11.18 | 137.13 | 0.2716 | 667.0 | 462.1 | |
| 0.00 | 0.61 | 0.00 | 0.31 | -17.31 | 325.01 | -11.65 | 132.71 | 0.2635 | 893.0 | 663.0 | |
| 0.00 | 1.56 | 0.00 | 0.81 | -20.41 | 324.53 | -12.13 | 139.53 | 0.3049 | -715.0 | -672.7 | |
| 0.00 | 1.82 | 0.00 | 0.95 | -19.32 | 323.84 | -12.82 | 135.44 | 0.2998 | -711.0 | -552.6 | |
| 1.73 | 195.48 | 0.90 | 101.92 | -18.69 | 323.11 | -13.55 | 132.36 | 0.3016 | 605.9 | -300.3 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -14.53 | 323.39 | -13.28 | 120.43 | 0.2590 | 1014.0 | 805.3 | |
| 37.64 | -28.00 | 19.61 | -28.00 | -19.26 | 322.81 | -13.85 | 133.18 | 0.3114 | -1195.0 | 999999 | |
| 1.30 | -28.00 | 0.68 | -28.00 | -18.47 | 322.81 | -13.85 | 131.18 | 0.3030 | 559.4 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -12.92 | 323.01 | -13.65 | 114.12 | 0.2532 | 955.0 | 765.2 | |
| 0.00 | 3.64 | 0.00 | 1.89 | -18.21 | 322.41 | -14.25 | 129.75 | 0.3055 | 951.0 | 847.5 | |
| 15.61 | -28.00 | 8.19 | -28.00 | -20.15 | 322.07 | -14.59 | 133.92 | 0.3298 | 1034.4 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.95 | -19.44 | 321.81 | -14.85 | 131.76 | 0.3254 | 125.0 | 173.4 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -18.47 | 321.90 | -14.76 | 129.50 | 0.3145 | -424.0 | -366.9 | |
| 0.00 | 1.13 | 0.00 | 0.59 | -20.13 | 321.55 | -15.11 | 132.93 | 0.3358 | 588.0 | 439.8 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -19.39 | 321.29 | -15.37 | 130.73 | 0.3313 | 336.0 | 274.4 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -20.27 | 321.04 | -15.62 | 132.36 | 0.3433 | 451.0 | 299.4 | |
| 0.00 | 1.99 | 0.00 | 1.05 | -18.56 | 320.92 | -15.74 | 128.03 | 0.3280 | -376.0 | -351.2 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -19.92 | 320.75 | -15.91 | 131.07 | 0.3434 | -943.0 | -840.2 | |
| 0.00 | 1.99 | 0.00 | 1.04 | -16.08 | 321.04 | -15.62 | 121.51 | 0.3048 | 814.0 | 582.9 | |
| 0.00 | 1.30 | 0.00 | 0.70 | -23.54 | 320.05 | -16.61 | 137.50 | 0.3895 | -754.0 | -535.5 | |
| 9.11 | 40.76 | 4.79 | 21.40 | -18.47 | 320.24 | -16.42 | 126.74 | 0.3361 | -1188.5 | -649.4 | |
| 26.97 | 98.87 | 14.39 | 52.78 | -21.03 | 319.16 | -17.50 | 131.04 | 0.3737 | -1145.3 | -263.0 | |
| 0.00 | 2.95 | 0.00 | 1.57 | -20.30 | 319.25 | -17.41 | 129.56 | 0.3656 | -932.0 | -762.8 | |
| 2.25 | 200.51 | 1.19 | 106.39 | -19.05 | 319.23 | -17.44 | 126.63 | 0.3545 | -1153.8 | -504.0 | |
| 4.51 | -47.00 | 2.39 | -47.00 | -18.80 | 319.15 | -17.51 | 125.93 | 0.3532 | -1466.2 | 999999 | |
| 5.29 | -47.00 | 2.80 | -47.00 | -18.98 | 319.00 | -17.66 | 126.14 | 0.3568 | -1390.9 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -22.61 | 318.48 | -18.18 | 133.30 | 0.3974 | 694.0 | 444.9 | |
| 18.99 | -47.00 | 10.08 | -47.00 | -19.05 | 318.66 | -18.00 | 125.85 | 0.3619 | -1211.8 | 999999 | |
| 5.38 | 41.45 | 2.88 | 22.21 | -20.57 | 318.41 | -18.25 | 128.96 | 0.3786 | -1064.0 | -396.8 | |
| 10.32 | -47.00 | 5.49 | -47.00 | -19.38 | 318.46 | -18.20 | 126.34 | 0.3674 | -1010.3 | 999999 | |
| 5.38 | -52.00 | 2.88 | -52.00 | -20.50 | 318.05 | -18.61 | 128.30 | 0.3825 | -995.0 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.60 | -16.95 | 317.57 | -19.09 | 119.32 | 0.3603 | -713.0 | -553.1 | |
| 0.00 | 1.13 | 0.00 | 0.61 | -21.76 | 316.49 | -20.17 | 128.89 | 0.4132 | -751.0 | -601.5 | |
| 0.00 | 0.52 | 0.00 | 0.28 | -20.50 | 316.54 | -20.12 | 126.33 | 0.4018 | -646.0 | -531.2 | |
| 0.00 | 0.87 | 0.00 | 0.47 | -21.63 | 316.31 | -20.35 | 128.40 | 0.4143 | -765.0 | -619.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
