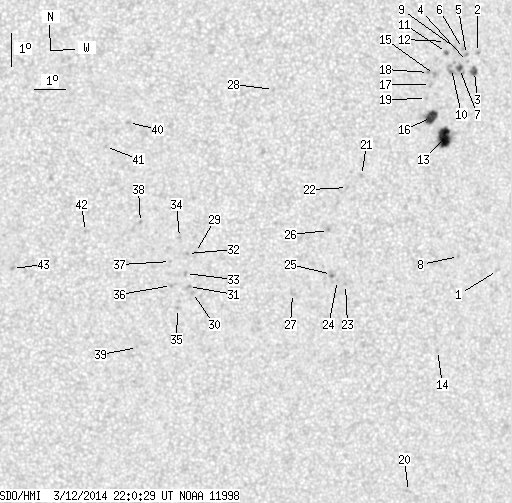

SDO HMI 2014-03-12 22:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.13 | 109.28 | 16.93 | 58.77 | -10.56 | 358.06 | 22.50 | 258.87 | 0.3874 | 391.9 | 294.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-12 22:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.56 | 0.00 | 0.87 | -13.74 | 2.32 | 26.76 | 253.84 | 0.4573 | 680.0 | 568.2 | |
| 0.00 | 1.73 | 0.00 | 0.95 | -7.29 | 1.06 | 25.50 | 268.20 | 0.4291 | 687.0 | 501.8 | |
| 2.78 | 5.55 | 1.52 | 3.04 | -7.86 | 1.00 | 25.44 | 266.87 | 0.4280 | 775.3 | 584.9 | |
| 0.00 | 1.30 | 0.00 | 0.71 | -7.57 | 0.75 | 25.19 | 267.54 | 0.4241 | 758.0 | 578.3 | |
| 0.00 | 1.65 | 0.00 | 0.90 | -7.37 | 0.70 | 25.14 | 268.04 | 0.4234 | 768.0 | 669.6 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -7.20 | 0.56 | 25.00 | 268.45 | 0.4212 | 734.0 | 695.7 | |
| 1.73 | 4.25 | 0.95 | 2.32 | -7.80 | 0.49 | 24.94 | 267.02 | 0.4201 | 965.0 | 729.7 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -13.40 | 0.95 | 25.39 | 254.02 | 0.4357 | 725.0 | 612.8 | |
| 0.00 | 1.47 | 0.00 | 0.80 | -7.18 | 0.29 | 24.73 | 268.51 | 0.4170 | 836.0 | 715.3 | |
| 0.00 | 7.03 | 0.00 | 3.82 | -7.81 | 0.23 | 24.67 | 266.99 | 0.4159 | 783.0 | 784.9 | |
| 0.52 | 2.00 | 0.28 | 1.08 | -7.34 | 0.04 | 24.48 | 268.13 | 0.4129 | 955.5 | 790.9 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -7.02 | 359.99 | 24.43 | 268.93 | 0.4123 | 696.0 | 589.4 | |
| 17.17 | 24.11 | 9.34 | 13.12 | -9.87 | 0.14 | 24.58 | 262.00 | 0.4157 | 1014.5 | 443.2 | |
| 0.00 | 1.47 | 0.00 | 0.81 | -16.25 | 0.58 | 25.03 | 247.49 | 0.4415 | 760.0 | 515.8 | |
| 0.00 | 2.26 | 0.00 | 1.22 | -8.02 | 359.68 | 24.12 | 266.49 | 0.4072 | 936.0 | 832.8 | |
| 8.93 | 12.06 | 4.84 | 6.53 | -9.30 | 359.67 | 24.11 | 263.32 | 0.4076 | 1016.0 | 726.5 | |
| 0.00 | 1.82 | 0.00 | 0.99 | -8.32 | 359.57 | 24.01 | 265.73 | 0.4055 | 798.0 | 746.8 | |
| 0.00 | 1.30 | 0.00 | 0.70 | -7.97 | 359.48 | 23.92 | 266.61 | 0.4040 | 961.0 | 845.0 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -8.74 | 359.46 | 23.91 | 264.68 | 0.4040 | 778.0 | 609.6 | |
| 0.00 | 1.91 | 0.00 | 1.06 | -20.56 | 0.24 | 24.68 | 238.29 | 0.4615 | 509.0 | 459.6 | |
| 0.00 | 1.56 | 0.00 | 0.83 | -11.13 | 357.50 | 21.94 | 258.10 | 0.3764 | 835.0 | 669.4 | |
| 0.00 | 1.30 | 0.00 | 0.69 | -11.51 | 357.07 | 21.52 | 256.92 | 0.3706 | 684.0 | 548.1 | |
| 0.00 | 0.87 | 0.00 | 0.47 | -14.41 | 357.27 | 21.71 | 249.51 | 0.3842 | 726.0 | 604.6 | |
| 0.00 | 0.87 | 0.00 | 0.46 | -14.30 | 356.99 | 21.44 | 249.58 | 0.3795 | 826.0 | 625.6 | |
| 0.00 | 2.60 | 0.00 | 1.39 | -14.13 | 356.78 | 21.22 | 249.86 | 0.3755 | 829.0 | 837.2 | |
| 0.00 | 1.13 | 0.00 | 0.60 | -12.82 | 356.56 | 21.00 | 253.15 | 0.3668 | 876.0 | 719.3 | |
| 0.00 | 2.86 | 0.00 | 1.52 | -14.76 | 355.56 | 20.00 | 247.27 | 0.3602 | 767.0 | 617.0 | |
| 0.00 | 1.13 | 0.00 | 0.59 | -8.69 | 354.50 | 18.95 | 264.21 | 0.3240 | -767.0 | -612.2 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -13.65 | 352.32 | 16.77 | 247.31 | 0.3052 | -615.0 | -493.1 | |
| 0.00 | 1.73 | 0.00 | 0.90 | -14.85 | 352.32 | 16.76 | 243.67 | 0.3124 | -742.0 | -576.8 | |
| 0.00 | 1.91 | 0.00 | 0.99 | -14.67 | 352.18 | 16.62 | 244.02 | 0.3091 | -798.0 | -683.0 | |
| 0.00 | 1.65 | 0.00 | 0.86 | -13.68 | 352.07 | 16.51 | 246.92 | 0.3015 | -876.0 | -701.2 | |
| 0.00 | 2.00 | 0.00 | 1.04 | -14.29 | 352.05 | 16.49 | 245.03 | 0.3048 | -808.0 | -676.9 | |
| 0.00 | 1.56 | 0.00 | 0.81 | -13.21 | 351.78 | 16.22 | 248.10 | 0.2945 | -765.0 | -555.2 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -15.34 | 351.87 | 16.32 | 241.64 | 0.3093 | -841.0 | -686.1 | |
| 0.00 | 1.13 | 0.00 | 0.59 | -14.66 | 351.63 | 16.07 | 243.37 | 0.3010 | -815.0 | -637.2 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -13.94 | 351.55 | 15.99 | 245.50 | 0.2951 | -784.0 | -602.8 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -12.80 | 350.52 | 14.96 | 248.03 | 0.2727 | -914.0 | -697.1 | |
| 0.00 | 0.52 | 0.00 | 0.27 | -16.56 | 350.68 | 15.13 | 236.35 | 0.3018 | -682.0 | -586.7 | |
| 0.00 | 1.82 | 0.00 | 0.93 | -9.83 | 349.99 | 14.43 | 258.59 | 0.2517 | -850.0 | -672.9 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -10.57 | 349.30 | 13.75 | 255.13 | 0.2428 | -765.0 | -595.5 | |
| 0.00 | 1.39 | 0.00 | 0.71 | -13.12 | 348.80 | 13.25 | 244.55 | 0.2483 | -803.0 | -647.8 | |
| 0.00 | 2.00 | 0.00 | 1.01 | -14.29 | 346.57 | 11.02 | 235.90 | 0.2247 | -921.0 | -687.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
