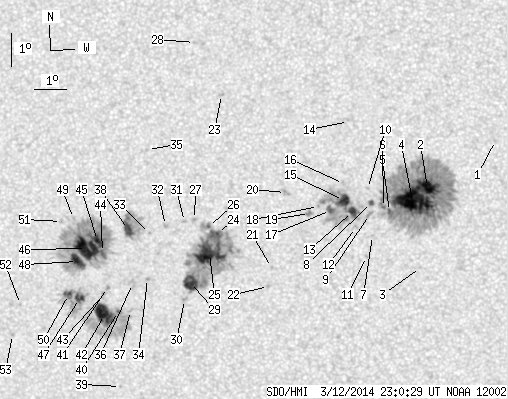

SDO HMI 2014-03-12 23:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 233.82 | 1108.53 | 121.00 | 572.02 | -18.78 | 324.12 | -10.89 | 140.93 | 0.2749 | -37.3 | 29.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-12 23:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.47 | 0.00 | 0.74 | -16.02 | 331.95 | -3.06 | 161.47 | 0.1623 | 659.0 | 408.4 | |
| 15.44 | 403.66 | 7.80 | 204.24 | -17.41 | 329.79 | -5.21 | 153.97 | 0.1985 | 1466.2 | 481.9 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -19.84 | 329.49 | -5.51 | 157.58 | 0.2381 | -432.0 | -266.1 | |
| 49.45 | -2.00 | 25.04 | -2.00 | -17.80 | 329.31 | -5.70 | 152.85 | 0.2081 | 1349.3 | 999999 | |
| 1.13 | -2.00 | 0.57 | -2.00 | -18.13 | 328.57 | -6.43 | 150.74 | 0.2188 | 794.2 | 999999 | |
| 0.61 | -2.00 | 0.31 | -2.00 | -18.00 | 328.39 | -6.62 | 149.75 | 0.2185 | 892.3 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.31 | -18.85 | 328.01 | -7.00 | 150.34 | 0.2341 | 502.0 | 431.3 | |
| 1.56 | 2.78 | 0.79 | 1.41 | -17.84 | 328.02 | -6.99 | 148.00 | 0.2195 | 1023.4 | 785.1 | |
| 0.00 | 3.38 | 0.00 | 1.72 | -18.21 | 327.94 | -7.07 | 148.61 | 0.2254 | 776.0 | 651.2 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -17.42 | 327.91 | -7.10 | 146.49 | 0.2145 | 917.0 | 735.3 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -19.48 | 327.79 | -7.22 | 150.96 | 0.2452 | -791.0 | -564.4 | |
| 0.00 | 2.34 | 0.00 | 1.19 | -18.59 | 327.48 | -7.53 | 147.95 | 0.2350 | 434.0 | 302.1 | |
| 5.73 | 78.60 | 2.91 | 40.01 | -18.11 | 327.41 | -7.60 | 146.51 | 0.2288 | 1070.4 | 398.8 | |
| 0.00 | 0.61 | 0.00 | 0.31 | -15.39 | 327.39 | -7.61 | 138.27 | 0.1928 | 535.0 | 582.0 | |
| 9.46 | -13.00 | 4.81 | -13.00 | -17.77 | 327.14 | -7.87 | 144.72 | 0.2267 | 1165.4 | 999999 | |
| 0.00 | 2.26 | 0.00 | 1.14 | -17.25 | 327.16 | -7.85 | 143.38 | 0.2196 | 615.0 | 513.6 | |
| 3.04 | -13.00 | 1.55 | -13.00 | -18.06 | 326.71 | -8.29 | 144.10 | 0.2349 | 736.1 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -17.94 | 326.34 | -8.67 | 142.58 | 0.2370 | 785.0 | 649.3 | |
| 0.00 | 3.47 | 0.00 | 1.77 | -18.14 | 326.04 | -8.96 | 142.22 | 0.2428 | 991.0 | 760.4 | |
| 0.00 | 4.08 | 0.00 | 2.08 | -17.49 | 325.32 | -9.69 | 138.29 | 0.2423 | 764.0 | 654.9 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -19.76 | 324.73 | -10.27 | 142.54 | 0.2772 | 735.0 | 544.9 | |
| 0.00 | 1.39 | 0.00 | 0.72 | -20.34 | 324.60 | -10.41 | 143.50 | 0.2861 | -839.0 | -659.6 | |
| 0.00 | 2.08 | 0.00 | 1.06 | -14.49 | 323.47 | -11.54 | 123.68 | 0.2338 | 847.0 | 666.7 | |
| 1.13 | 187.65 | 0.58 | 97.23 | -18.68 | 323.07 | -11.93 | 135.79 | 0.2822 | 639.2 | -312.5 | |
| 35.31 | -24.00 | 18.28 | -24.00 | -19.28 | 322.77 | -12.24 | 136.62 | 0.2926 | -1167.1 | 999999 | |
| 0.78 | -24.00 | 0.40 | -24.00 | -18.46 | 322.80 | -12.21 | 134.59 | 0.2829 | 835.4 | 999999 | |
| 0.00 | 2.17 | 0.00 | 1.12 | -18.24 | 322.37 | -12.64 | 133.04 | 0.2856 | 930.0 | 771.2 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -12.91 | 322.70 | -12.30 | 116.17 | 0.2325 | 740.0 | 586.4 | |
| 15.27 | -24.00 | 7.95 | -24.00 | -20.15 | 322.08 | -12.92 | 137.21 | 0.3104 | 984.5 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.00 | -20.66 | 321.84 | -13.16 | 137.88 | 0.3191 | 801.0 | 545.5 | |
| 0.00 | 1.13 | 0.00 | 0.58 | -18.29 | 322.04 | -12.97 | 132.48 | 0.2902 | 804.0 | 665.5 | |
| 0.00 | 2.34 | 0.00 | 1.22 | -18.39 | 321.42 | -13.59 | 131.49 | 0.2989 | 634.0 | 544.6 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -18.62 | 320.88 | -14.12 | 131.04 | 0.3080 | -836.0 | -716.6 | |
| 0.00 | 1.56 | 0.00 | 0.82 | -19.99 | 320.70 | -14.31 | 134.05 | 0.3246 | -869.0 | -803.6 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -16.08 | 321.02 | -13.98 | 124.17 | 0.2819 | 683.0 | 567.7 | |
| 0.00 | 5.73 | 0.00 | 3.01 | -20.12 | 320.19 | -14.82 | 133.43 | 0.3321 | -705.0 | -719.5 | |
| 0.00 | 2.17 | 0.00 | 1.14 | -20.95 | 320.04 | -14.97 | 135.02 | 0.3427 | -268.0 | -216.8 | |
| 8.59 | 36.35 | 4.48 | 18.94 | -18.48 | 320.22 | -14.79 | 129.44 | 0.3150 | -1133.7 | -635.2 | |
| 0.00 | 0.87 | 0.00 | 0.46 | -23.27 | 319.45 | -15.56 | 138.73 | 0.3753 | 643.0 | 526.4 | |
| 0.95 | 103.67 | 0.50 | 54.90 | -20.96 | 319.64 | -15.36 | 134.35 | 0.3475 | -946.8 | -255.1 | |
| 0.00 | 1.65 | 0.00 | 0.87 | -20.22 | 319.36 | -15.65 | 132.18 | 0.3431 | -979.0 | -797.4 | |
| 24.90 | -40.00 | 13.18 | -40.00 | -21.04 | 319.17 | -15.84 | 133.70 | 0.3538 | -1125.3 | 999999 | |
| 0.00 | 2.60 | 0.00 | 1.37 | -20.43 | 319.20 | -15.80 | 132.40 | 0.3471 | -832.0 | -669.7 | |
| 1.91 | 198.58 | 1.00 | 104.46 | -19.15 | 319.30 | -15.70 | 129.55 | 0.3331 | -983.2 | -461.7 | |
| 7.11 | -44.00 | 3.73 | -44.00 | -18.78 | 319.18 | -15.83 | 128.43 | 0.3312 | -1354.6 | 999999 | |
| 30.02 | -44.00 | 15.79 | -44.00 | -19.01 | 318.79 | -16.21 | 128.38 | 0.3382 | -1187.7 | 999999 | |
| 5.90 | 39.21 | 3.13 | 20.81 | -20.52 | 318.40 | -16.61 | 131.29 | 0.3578 | -1066.8 | -486.1 | |
| 11.19 | -44.00 | 5.90 | -44.00 | -19.39 | 318.46 | -16.55 | 128.77 | 0.3462 | -957.3 | 999999 | |
| 0.00 | 1.56 | 0.00 | 0.82 | -18.08 | 318.46 | -16.55 | 125.55 | 0.3342 | -132.0 | -114.7 | |
| 4.34 | -47.00 | 2.30 | -47.00 | -20.39 | 318.05 | -16.96 | 130.44 | 0.3608 | -951.4 | 999999 | |
| 0.00 | 1.74 | 0.00 | 0.91 | -18.16 | 318.06 | -16.95 | 125.15 | 0.3402 | -849.0 | -588.3 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -20.63 | 316.42 | -18.59 | 128.60 | 0.3834 | -630.0 | -455.8 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -21.54 | 316.03 | -18.98 | 129.99 | 0.3966 | -614.0 | -482.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
