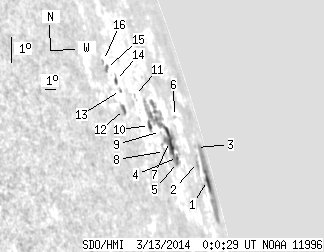

SDO HMI 2014-03-13 00:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.05 | 122.68 | 75.79 | 437.93 | 14.03 | 54.21 | 79.75 | 285.39 | 0.9890 | 40.8 | -104.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-13 00:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.77 | 39.74 | 37.84 | 229.69 | 13.77 | 57.20 | 82.74 | 284.63 | 0.9962 | 12.8 | -23.6 | |
| 0.00 | 4.60 | 0.00 | 19.28 | 14.12 | 55.58 | 81.13 | 285.23 | 0.9936 | -413.0 | -334.3 | |
| 0.00 | 0.69 | 0.00 | 3.37 | 14.70 | 56.39 | 81.94 | 285.67 | 0.9952 | -132.0 | -127.2 | |
| 0.52 | 61.43 | 1.41 | 152.87 | 13.80 | 51.78 | 77.32 | 285.54 | 0.9842 | 27.5 | -269.6 | |
| 0.87 | -4.00 | 2.30 | -4.00 | 13.62 | 51.58 | 77.12 | 285.39 | 0.9835 | 246.7 | 999999 | |
| 0.00 | 0.69 | 0.00 | 2.23 | 15.26 | 53.15 | 78.70 | 286.76 | 0.9887 | 203.0 | 148.1 | |
| 10.41 | -4.00 | 27.16 | -4.00 | 14.22 | 51.13 | 76.67 | 286.07 | 0.9825 | 2.8 | 999999 | |
| 0.00 | 2.78 | 0.00 | 6.52 | 13.77 | 50.01 | 75.55 | 285.82 | 0.9785 | -121.0 | -110.0 | |
| 0.00 | 0.52 | 0.00 | 1.25 | 14.41 | 50.15 | 75.69 | 286.44 | 0.9794 | 89.0 | 8.0 | |
| 2.00 | -4.00 | 4.36 | -4.00 | 14.44 | 48.84 | 74.38 | 286.71 | 0.9748 | 97.0 | 999999 | |
| 0.00 | 0.87 | 0.00 | 1.79 | 15.27 | 47.92 | 73.46 | 287.73 | 0.9720 | 181.0 | 168.7 | |
| 1.48 | 4.08 | 2.72 | 7.53 | 14.63 | 46.31 | 71.85 | 287.41 | 0.9648 | 302.1 | 257.2 | |
| 0.00 | 1.04 | 0.00 | 1.96 | 15.24 | 46.42 | 71.96 | 288.01 | 0.9659 | 154.0 | 145.5 | |
| 0.00 | 2.86 | 0.00 | 5.34 | 15.52 | 46.16 | 71.70 | 288.36 | 0.9650 | 316.0 | 278.7 | |
| 0.00 | 2.69 | 0.00 | 4.85 | 15.83 | 45.53 | 71.07 | 288.80 | 0.9626 | 476.0 | 413.6 | |
| 0.00 | 0.69 | 0.00 | 1.25 | 16.07 | 45.44 | 70.99 | 289.06 | 0.9625 | 338.0 | 342.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
