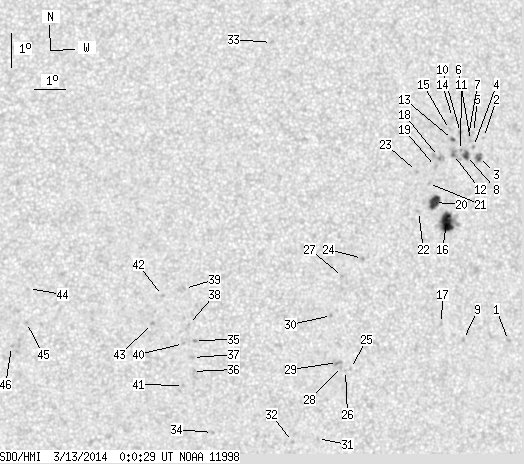

SDO HMI 2014-03-13 00:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.15 | 110.19 | 17.10 | 59.90 | -10.08 | 358.61 | 24.15 | 260.73 | 0.4117 | 400.0 | 332.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-13 00:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.91 | 0.00 | 1.07 | -13.28 | 2.58 | 28.12 | 255.34 | 0.4762 | 643.0 | 505.2 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -7.28 | 1.17 | 26.71 | 268.14 | 0.4480 | 672.0 | 444.6 | |
| 2.43 | 4.69 | 1.34 | 2.59 | -7.89 | 1.04 | 26.58 | 266.79 | 0.4458 | 754.9 | 600.0 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -7.57 | 0.85 | 26.39 | 267.51 | 0.4429 | 595.0 | 526.8 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -7.15 | 0.82 | 26.37 | 268.46 | 0.4427 | 605.0 | 431.5 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -7.40 | 0.74 | 26.28 | 267.91 | 0.4412 | 658.0 | 562.8 | |
| 0.00 | 1.13 | 0.00 | 0.62 | -7.25 | 0.66 | 26.21 | 268.24 | 0.4401 | 703.0 | 610.2 | |
| 2.86 | 4.86 | 1.58 | 2.68 | -7.85 | 0.63 | 26.18 | 266.88 | 0.4395 | 805.2 | 663.7 | |
| 0.00 | 1.13 | 0.00 | 0.63 | -13.33 | 1.03 | 26.58 | 254.65 | 0.4533 | 700.0 | 590.2 | |
| 0.00 | 1.39 | 0.00 | 0.76 | -7.18 | 0.39 | 25.93 | 268.43 | 0.4359 | 883.0 | 676.9 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -7.71 | 0.42 | 25.97 | 267.20 | 0.4362 | 796.0 | 733.6 | |
| 0.52 | 5.64 | 0.29 | 3.10 | -7.84 | 0.20 | 25.74 | 266.90 | 0.4327 | 923.8 | 737.4 | |
| 0.87 | 1.82 | 0.48 | 1.00 | -7.40 | 0.14 | 25.68 | 267.93 | 0.4318 | 843.8 | 720.2 | |
| 0.00 | 1.39 | 0.00 | 0.76 | -6.75 | 0.10 | 25.64 | 269.46 | 0.4316 | 756.0 | 580.2 | |
| 0.00 | 1.39 | 0.00 | 0.76 | -7.11 | 0.02 | 25.56 | 268.62 | 0.4301 | 583.0 | 596.6 | |
| 16.05 | 28.20 | 8.81 | 15.48 | -9.88 | 0.11 | 25.66 | 262.17 | 0.4324 | 966.4 | 393.1 | |
| 0.00 | 1.39 | 0.00 | 0.76 | -12.90 | 0.23 | 25.78 | 255.31 | 0.4401 | 737.0 | 518.2 | |
| 0.00 | 6.51 | 0.00 | 3.56 | -7.93 | 359.70 | 25.25 | 266.70 | 0.4249 | 599.0 | 739.4 | |
| 0.00 | 1.74 | 0.00 | 0.95 | -8.23 | 359.62 | 25.17 | 265.99 | 0.4237 | 880.0 | 719.4 | |
| 8.42 | 11.37 | 4.60 | 6.21 | -9.31 | 359.67 | 25.21 | 263.45 | 0.4249 | 946.3 | 700.6 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -8.75 | 359.43 | 24.97 | 264.75 | 0.4208 | 612.0 | 459.6 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -9.60 | 359.15 | 24.70 | 262.68 | 0.4171 | 779.0 | 597.4 | |
| 0.00 | 1.39 | 0.00 | 0.75 | -8.41 | 359.00 | 24.55 | 265.53 | 0.4140 | 664.0 | 588.8 | |
| 0.00 | 1.39 | 0.00 | 0.75 | -11.09 | 357.42 | 22.96 | 258.58 | 0.3922 | 716.0 | 647.2 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -14.39 | 357.33 | 22.88 | 250.35 | 0.4015 | 736.0 | 607.5 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -14.46 | 357.17 | 22.72 | 250.08 | 0.3994 | 689.0 | 580.4 | |
| 0.00 | 1.13 | 0.00 | 0.60 | -11.66 | 356.81 | 22.35 | 256.90 | 0.3840 | 827.0 | 702.8 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -14.35 | 357.06 | 22.60 | 250.29 | 0.3973 | 597.0 | 633.6 | |
| 0.00 | 3.21 | 0.00 | 1.73 | -14.23 | 356.88 | 22.43 | 250.44 | 0.3941 | 850.0 | 700.6 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -12.84 | 356.55 | 22.09 | 253.74 | 0.3836 | 789.0 | 629.5 | |
| 0.00 | 1.13 | 0.00 | 0.61 | -16.54 | 356.47 | 22.01 | 244.57 | 0.3996 | -632.0 | -548.7 | |
| 0.00 | 1.48 | 0.00 | 0.79 | -16.67 | 355.65 | 21.19 | 243.54 | 0.3885 | -735.0 | -610.5 | |
| 0.00 | 1.39 | 0.00 | 0.73 | -4.79 | 354.14 | 19.68 | 275.96 | 0.3389 | -659.0 | -563.4 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -16.51 | 352.99 | 18.53 | 241.18 | 0.3493 | -617.0 | -488.4 | |
| 0.00 | 1.39 | 0.00 | 0.73 | -13.76 | 352.16 | 17.71 | 247.92 | 0.3202 | -798.0 | -692.8 | |
| 0.00 | 0.43 | 0.00 | 0.23 | -14.70 | 352.17 | 17.72 | 245.21 | 0.3257 | -366.0 | -490.8 | |
| 0.00 | 1.65 | 0.00 | 0.86 | -14.28 | 352.14 | 17.68 | 246.39 | 0.3227 | -635.0 | -573.3 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -13.29 | 351.93 | 17.48 | 249.12 | 0.3142 | -590.0 | -495.2 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -12.22 | 351.73 | 17.28 | 252.27 | 0.3061 | -695.0 | -542.3 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -13.87 | 351.82 | 17.36 | 247.27 | 0.3155 | -808.0 | -671.0 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -15.13 | 351.92 | 17.46 | 243.70 | 0.3246 | -771.0 | -593.0 | |
| 0.00 | 1.13 | 0.00 | 0.58 | -12.45 | 351.05 | 16.59 | 250.93 | 0.2963 | -800.0 | -697.2 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -13.30 | 350.78 | 16.33 | 247.93 | 0.2965 | -879.0 | -725.4 | |
| 0.00 | 0.26 | 0.00 | 0.13 | -12.37 | 346.82 | 12.36 | 246.10 | 0.2298 | -634.0 | -511.0 | |
| 0.00 | 1.48 | 0.00 | 0.75 | -13.39 | 346.81 | 12.35 | 242.06 | 0.2366 | -706.0 | -503.8 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -14.12 | 346.37 | 11.92 | 238.48 | 0.2360 | -697.0 | -594.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
