SDO HMI 2014-03-13 00:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 240.96 | 1095.59 | 124.38 | 564.37 | -18.76 | 324.15 | -10.31 | 142.53 | 0.2688 | -42.8 | 18.3 | |
|
previous
or next observation for the same group /

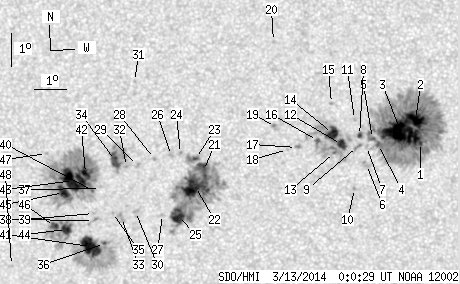

back to the solar disc SDO HMI 2014-03-13 00:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.48 | 393.49 | 0.75 | 198.92 | -18.09 | 329.95 | -4.51 | 158.42 | 0.2042 | 981.5 | 488.2 | |
| 17.70 | -1.00 | 8.94 | -1.00 | -17.39 | 329.81 | -4.65 | 156.40 | 0.1941 | 1405.8 | 999999 | |
| 50.67 | -1.00 | 25.63 | -1.00 | -17.78 | 329.36 | -5.10 | 155.27 | 0.2032 | 1328.0 | 999999 | |
| 1.21 | -1.00 | 0.62 | -1.00 | -18.13 | 328.62 | -5.83 | 153.05 | 0.2141 | 742.3 | 999999 | |
| 0.95 | -1.00 | 0.48 | -1.00 | -17.95 | 328.44 | -6.02 | 151.92 | 0.2128 | 939.2 | 999999 | |
| 0.00 | 3.47 | 0.00 | 1.76 | -18.74 | 328.22 | -6.23 | 152.83 | 0.2263 | 4.0 | 122.6 | |
| 0.00 | 1.74 | 0.00 | 0.88 | -18.19 | 328.24 | -6.21 | 151.71 | 0.2179 | 471.0 | 302.2 | |
| 1.48 | -1.00 | 0.75 | -1.00 | -17.85 | 328.04 | -6.42 | 150.12 | 0.2147 | 1016.8 | 999999 | |
| 0.00 | 3.38 | 0.00 | 1.72 | -18.18 | 327.96 | -6.50 | 150.63 | 0.2202 | 757.0 | 608.2 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -19.46 | 327.81 | -6.64 | 152.86 | 0.2403 | -733.0 | -537.1 | |
| 0.00 | 1.48 | 0.00 | 0.75 | -17.37 | 327.90 | -6.56 | 148.36 | 0.2088 | 799.0 | 556.8 | |
| 5.99 | 88.42 | 3.04 | 44.94 | -18.12 | 327.46 | -7.00 | 148.63 | 0.2235 | 1055.0 | 439.8 | |
| 0.35 | -12.00 | 0.18 | -12.00 | -18.36 | 327.23 | -7.23 | 148.39 | 0.2290 | 630.0 | 999999 | |
| 10.15 | -12.00 | 5.16 | -12.00 | -17.78 | 327.19 | -7.27 | 146.82 | 0.2212 | 1143.9 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -16.87 | 327.19 | -7.26 | 144.34 | 0.2085 | 894.0 | 661.7 | |
| 1.21 | -12.00 | 0.62 | -12.00 | -17.98 | 326.71 | -7.75 | 145.67 | 0.2285 | 898.6 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -18.18 | 326.03 | -8.43 | 143.99 | 0.2378 | 848.0 | 709.6 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -18.24 | 325.74 | -8.71 | 143.23 | 0.2415 | 630.0 | 488.7 | |
| 0.00 | 3.90 | 0.00 | 1.99 | -17.53 | 325.40 | -9.06 | 140.26 | 0.2359 | 737.0 | 687.3 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -14.97 | 325.46 | -9.00 | 132.07 | 0.2045 | 875.0 | 623.5 | |
| 10.85 | 198.17 | 5.59 | 102.49 | -18.82 | 323.03 | -11.43 | 137.32 | 0.2779 | -307.5 | -301.7 | |
| 35.49 | -21.00 | 18.34 | -21.00 | -19.30 | 322.74 | -11.72 | 137.84 | 0.2869 | -1140.6 | 999999 | |
| 1.21 | -21.00 | 0.63 | -21.00 | -18.44 | 322.80 | -11.66 | 135.80 | 0.2762 | 797.8 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -18.28 | 322.33 | -12.13 | 134.28 | 0.2799 | 932.0 | 777.0 | |
| 14.06 | -21.00 | 7.31 | -21.00 | -20.16 | 322.12 | -12.34 | 138.51 | 0.3041 | 978.3 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.94 | -18.33 | 322.03 | -12.42 | 133.77 | 0.2840 | 719.0 | 616.2 | |
| 0.00 | 1.39 | 0.00 | 0.72 | -20.12 | 321.60 | -12.86 | 137.28 | 0.3093 | 497.0 | 392.8 | |
| 0.00 | 1.39 | 0.00 | 0.72 | -18.41 | 321.48 | -12.97 | 132.78 | 0.2916 | 775.0 | 642.7 | |
| 0.00 | 2.43 | 0.00 | 1.26 | -18.61 | 320.92 | -13.54 | 132.14 | 0.3006 | -656.0 | -623.6 | |
| 0.00 | 2.17 | 0.00 | 1.13 | -20.00 | 320.73 | -13.72 | 135.22 | 0.3179 | -936.0 | -775.5 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -16.06 | 321.02 | -13.44 | 125.12 | 0.2743 | 763.0 | 608.0 | |
| 0.00 | 1.48 | 0.00 | 0.77 | -18.63 | 320.56 | -13.90 | 131.49 | 0.3052 | -750.0 | -563.0 | |
| 0.00 | 5.55 | 0.00 | 2.91 | -20.17 | 320.26 | -14.20 | 134.70 | 0.3253 | -851.0 | -765.4 | |
| 8.16 | 31.06 | 4.24 | 16.15 | -18.43 | 320.22 | -14.24 | 130.34 | 0.3075 | -1165.7 | -663.3 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -20.01 | 319.98 | -14.48 | 133.79 | 0.3269 | -783.0 | -671.9 | |
| 0.78 | 95.88 | 0.41 | 50.65 | -20.95 | 319.62 | -14.83 | 135.26 | 0.3412 | -921.3 | -276.8 | |
| 0.00 | 0.61 | 0.00 | 0.32 | -19.27 | 319.66 | -14.80 | 131.42 | 0.3230 | -610.0 | -610.7 | |
| 0.00 | 4.16 | 0.00 | 2.19 | -20.24 | 319.33 | -15.12 | 133.13 | 0.3369 | -791.0 | -631.9 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -20.02 | 319.35 | -15.10 | 132.68 | 0.3344 | -762.0 | -598.7 | |
| 0.52 | 197.74 | 0.27 | 103.74 | -19.32 | 319.39 | -15.07 | 131.07 | 0.3268 | -824.5 | -490.1 | |
| 23.43 | -36.00 | 12.37 | -36.00 | -21.03 | 319.15 | -15.30 | 134.59 | 0.3475 | -1116.3 | 999999 | |
| 3.90 | -40.00 | 2.04 | -40.00 | -18.80 | 319.21 | -15.24 | 129.46 | 0.3238 | -1430.2 | 999999 | |
| 30.37 | -40.00 | 15.93 | -40.00 | -19.00 | 318.80 | -15.66 | 129.26 | 0.3310 | -1166.2 | 999999 | |
| 7.55 | 43.82 | 3.99 | 23.19 | -20.48 | 318.42 | -16.04 | 132.12 | 0.3505 | -1075.7 | -417.9 | |
| 9.37 | -40.00 | 4.93 | -40.00 | -19.35 | 318.44 | -16.02 | 129.52 | 0.3390 | -976.4 | 999999 | |
| 4.08 | -44.00 | 2.16 | -44.00 | -20.38 | 318.03 | -16.43 | 131.25 | 0.3541 | -922.8 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -18.15 | 318.00 | -16.46 | 125.85 | 0.3336 | -719.0 | -451.0 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -21.52 | 316.46 | -18.00 | 131.32 | 0.3844 | -371.0 | -381.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
