SDO HMI 2014-03-13 01:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 119.68 | 487.27 | 77.10 | 312.99 | 5.44 | 11.51 | 37.61 | 287.72 | 0.6397 | 103.9 | 104.6 | |
|
previous
or next observation for the same group /

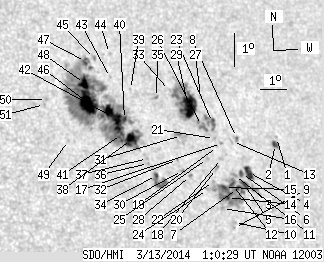

back to the solar disc SDO HMI 2014-03-13 01:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.60 | 5.56 | 16.48 | 42.58 | 285.61 | 0.7015 | -252.0 | -259.3 | |
| 2.34 | 4.34 | 1.62 | 3.00 | 5.34 | 16.42 | 42.52 | 285.33 | 0.7000 | -542.2 | -385.7 | |
| 0.00 | 3.73 | 0.00 | 2.52 | 3.89 | 15.47 | 41.56 | 283.68 | 0.6835 | -448.0 | -343.6 | |
| 6.42 | 8.76 | 4.34 | 5.92 | 4.39 | 15.26 | 41.35 | 284.46 | 0.6826 | -545.5 | -319.2 | |
| 3.30 | 56.67 | 2.22 | 37.79 | 4.01 | 15.07 | 41.17 | 283.99 | 0.6791 | -597.9 | -604.9 | |
| 1.39 | 2.69 | 0.93 | 1.81 | 4.33 | 14.98 | 41.07 | 284.50 | 0.6790 | -701.6 | -575.1 | |
| 1.65 | -5.00 | 1.10 | -5.00 | 3.86 | 14.79 | 40.88 | 283.90 | 0.6750 | -771.6 | 999999 | |
| 0.35 | 2.08 | 0.23 | 1.41 | 5.42 | 14.86 | 40.95 | 286.08 | 0.6814 | -525.8 | -457.5 | |
| 0.00 | 0.87 | 0.00 | 0.58 | 2.67 | 14.61 | 40.70 | 282.24 | 0.6689 | 340.0 | 280.4 | |
| 0.00 | 1.65 | 0.00 | 1.10 | 2.82 | 14.61 | 40.71 | 282.46 | 0.6694 | 62.0 | 142.7 | |
| 0.00 | 2.34 | 0.00 | 1.57 | 4.25 | 14.69 | 40.79 | 284.49 | 0.6752 | -490.0 | -505.2 | |
| 1.82 | -5.00 | 1.22 | -5.00 | 3.97 | 14.60 | 40.69 | 284.12 | 0.6730 | -833.7 | 999999 | |
| 0.00 | 1.65 | 0.00 | 1.11 | 5.28 | 14.69 | 40.78 | 285.96 | 0.6789 | -483.0 | -377.5 | |
| 1.56 | -5.00 | 1.04 | -5.00 | 3.55 | 14.37 | 40.47 | 283.62 | 0.6688 | -816.7 | 999999 | |
| 2.17 | -5.00 | 1.44 | -5.00 | 3.85 | 14.27 | 40.37 | 284.08 | 0.6686 | -837.0 | 999999 | |
| 0.00 | 2.17 | 0.00 | 1.43 | 3.20 | 14.16 | 40.25 | 283.19 | 0.6650 | -207.0 | -237.8 | |
| 0.00 | 1.13 | 0.00 | 0.75 | 5.18 | 14.25 | 40.34 | 286.01 | 0.6730 | -612.0 | -512.6 | |
| 0.00 | 2.00 | 0.00 | 1.33 | 4.72 | 14.21 | 40.31 | 285.37 | 0.6709 | -249.0 | -215.5 | |
| 0.00 | 0.95 | 0.00 | 0.64 | 5.08 | 14.08 | 40.18 | 285.93 | 0.6706 | -533.0 | -416.5 | |
| 0.00 | 2.00 | 0.00 | 1.32 | 4.40 | 13.99 | 40.09 | 285.00 | 0.6670 | -728.0 | -649.2 | |
| 0.00 | 1.21 | 0.00 | 0.81 | 5.31 | 13.98 | 40.08 | 286.31 | 0.6703 | -697.0 | -590.1 | |
| 0.00 | 0.52 | 0.00 | 0.34 | 4.00 | 13.85 | 39.94 | 284.47 | 0.6638 | -729.0 | -624.2 | |
| 1.82 | 10.15 | 1.22 | 6.76 | 5.80 | 13.95 | 40.04 | 287.02 | 0.6717 | -500.2 | -524.0 | |
| 0.00 | 0.95 | 0.00 | 0.63 | 3.73 | 13.60 | 39.70 | 284.18 | 0.6597 | -194.0 | -171.9 | |
| 0.00 | 1.30 | 0.00 | 0.86 | 4.68 | 13.66 | 39.76 | 285.54 | 0.6639 | -768.0 | -634.1 | |
| 0.00 | 7.03 | 0.00 | 4.65 | 5.67 | 13.51 | 39.60 | 287.04 | 0.6657 | -871.0 | -764.6 | |
| 0.00 | 1.30 | 0.00 | 0.87 | 6.56 | 13.55 | 39.64 | 288.29 | 0.6698 | -309.0 | -205.9 | |
| 0.00 | 1.48 | 0.00 | 0.96 | 4.11 | 12.97 | 39.06 | 285.00 | 0.6530 | 515.0 | 331.2 | |
| 25.17 | 56.76 | 16.59 | 37.37 | 6.22 | 13.05 | 39.14 | 288.03 | 0.6623 | -804.7 | -463.0 | |
| 0.00 | 1.39 | 0.00 | 0.90 | 4.24 | 12.67 | 38.76 | 285.31 | 0.6496 | -696.0 | -591.8 | |
| 0.00 | 4.86 | 0.00 | 3.17 | 5.30 | 12.70 | 38.79 | 286.87 | 0.6542 | 429.0 | 216.1 | |
| 0.00 | 0.87 | 0.00 | 0.56 | 4.56 | 12.49 | 38.59 | 285.86 | 0.6487 | -444.0 | -390.8 | |
| 0.00 | 0.87 | 0.00 | 0.57 | 6.65 | 12.36 | 38.45 | 288.99 | 0.6555 | -237.0 | -226.2 | |
| 1.30 | 13.45 | 0.83 | 8.62 | 4.00 | 11.66 | 37.75 | 285.41 | 0.6358 | 763.2 | 611.1 | |
| 0.00 | 1.56 | 0.00 | 1.01 | 6.39 | 11.83 | 37.93 | 288.89 | 0.6479 | -793.0 | -714.0 | |
| 0.00 | 0.78 | 0.00 | 0.50 | 4.35 | 11.38 | 37.47 | 286.06 | 0.6335 | 410.0 | 382.4 | |
| 0.00 | 0.78 | 0.00 | 0.50 | 4.50 | 11.35 | 37.44 | 286.30 | 0.6338 | 353.0 | 228.4 | |
| 11.98 | 281.26 | 7.61 | 176.75 | 5.03 | 10.78 | 36.88 | 287.38 | 0.6287 | 655.0 | 459.1 | |
| 0.00 | 0.69 | 0.00 | 0.44 | 6.56 | 10.87 | 36.96 | 289.64 | 0.6365 | 404.0 | 261.6 | |
| 2.00 | -38.00 | 1.27 | -38.00 | 5.62 | 10.56 | 36.66 | 288.39 | 0.6284 | 543.4 | 999999 | |
| 0.61 | -38.00 | 0.38 | -38.00 | 5.16 | 10.42 | 36.51 | 287.75 | 0.6245 | 810.6 | 999999 | |
| 20.65 | -38.00 | 13.06 | -38.00 | 5.65 | 10.15 | 36.25 | 288.65 | 0.6233 | 849.1 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.55 | 6.88 | 10.14 | 36.24 | 290.50 | 0.6288 | 327.0 | 223.4 | |
| 0.00 | 1.04 | 0.00 | 0.66 | 7.62 | 10.18 | 36.27 | 291.57 | 0.6329 | 173.0 | 270.7 | |
| 0.00 | 1.13 | 0.00 | 0.71 | 7.42 | 9.60 | 35.69 | 291.62 | 0.6246 | 450.0 | 390.9 | |
| 26.47 | -38.00 | 16.56 | -38.00 | 6.01 | 9.26 | 35.35 | 289.69 | 0.6134 | 999.3 | 999999 | |
| 1.91 | -38.00 | 1.20 | -38.00 | 7.30 | 9.26 | 35.35 | 291.64 | 0.6197 | 684.3 | 999999 | |
| 6.77 | -38.00 | 4.24 | -38.00 | 6.62 | 9.16 | 35.25 | 290.67 | 0.6150 | 883.7 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.48 | 4.83 | 8.44 | 34.54 | 288.28 | 0.5972 | 583.0 | 497.3 | |
| 0.00 | 1.56 | 0.00 | 0.96 | 6.03 | 7.73 | 33.82 | 290.59 | 0.5935 | 691.0 | 591.2 | |
| 0.00 | 0.78 | 0.00 | 0.48 | 5.87 | 7.64 | 33.74 | 290.39 | 0.5916 | 666.0 | 563.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
