SDO HMI 2014-03-13 02:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.68 | 0.00 | 2.56 | -20.10 | 353.01 | 19.65 | 230.29 | 0.3971 | -430.2 | -415.0 | |
|
previous
or next observation for the same group /

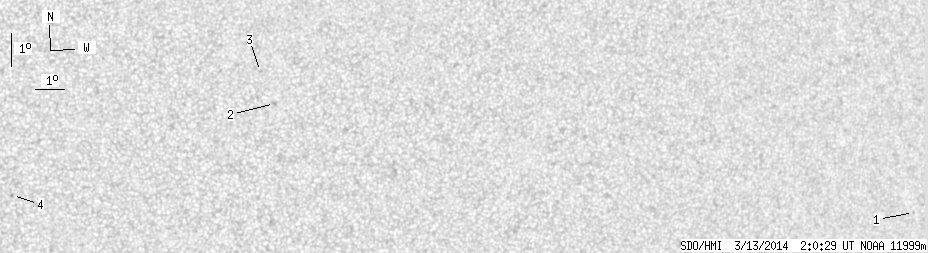

back to the solar disc SDO HMI 2014-03-13 02:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.61 | 0.00 | 0.41 | -21.10 | 15.54 | 42.18 | 246.67 | 0.6846 | 424.0 | 448.0 | |
| 0.00 | 1.82 | 0.00 | 0.97 | -19.16 | 351.48 | 18.12 | 234.06 | 0.3644 | -795.0 | -610.8 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -18.21 | 350.91 | 17.55 | 235.59 | 0.3488 | -629.0 | -462.2 | |
| 0.00 | 1.30 | 0.00 | 0.68 | -22.22 | 343.15 | 9.79 | 211.14 | 0.3058 | -721.0 | -624.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
