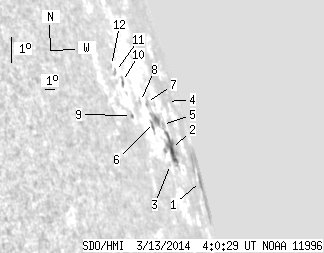

SDO HMI 2014-03-13 04:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.28 | 86.65 | 54.09 | 492.65 | 14.16 | 54.97 | 82.71 | 285.05 | 0.9948 | -68.7 | -134.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-13 04:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.17 | 33.43 | 18.62 | 329.29 | 13.86 | 57.15 | 84.89 | 284.41 | 0.9987 | -259.2 | -156.0 | |
| 11.11 | 22.14 | 35.47 | 70.35 | 14.12 | 51.11 | 78.85 | 285.60 | 0.9885 | -4.6 | -149.3 | |
| 0.00 | 0.52 | 0.00 | 1.49 | 13.51 | 50.20 | 77.93 | 285.14 | 0.9858 | 139.0 | 136.5 | |
| 0.00 | 7.64 | 0.00 | 32.85 | 15.84 | 53.03 | 80.77 | 286.99 | 0.9935 | -60.0 | -57.4 | |
| 0.00 | 2.52 | 0.00 | 7.71 | 14.81 | 50.58 | 78.31 | 286.37 | 0.9875 | -376.0 | -352.7 | |
| 0.00 | 10.16 | 0.00 | 27.53 | 14.70 | 49.27 | 77.01 | 286.50 | 0.9838 | -324.0 | -133.2 | |
| 0.00 | 2.78 | 0.00 | 7.32 | 15.28 | 48.84 | 76.58 | 287.15 | 0.9828 | -344.0 | -319.0 | |
| 0.00 | 0.78 | 0.00 | 1.91 | 15.20 | 47.96 | 75.70 | 287.23 | 0.9800 | 241.0 | 248.9 | |
| 0.00 | 1.30 | 0.00 | 2.77 | 14.55 | 46.22 | 73.96 | 286.90 | 0.9733 | 198.0 | 215.6 | |
| 0.00 | 3.04 | 0.00 | 6.56 | 15.62 | 46.23 | 73.97 | 287.98 | 0.9742 | 522.0 | 343.4 | |
| 0.00 | 1.82 | 0.00 | 3.80 | 15.87 | 45.69 | 73.43 | 288.34 | 0.9724 | 409.0 | 385.6 | |
| 0.00 | 0.52 | 0.00 | 1.07 | 16.02 | 45.40 | 73.14 | 288.56 | 0.9714 | 181.0 | 230.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
