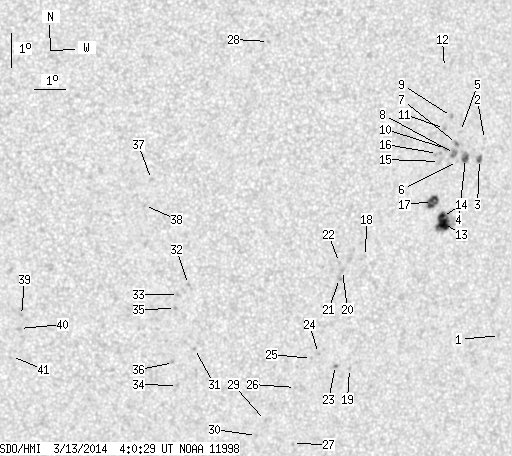

SDO HMI 2014-03-13 04:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.60 | 100.10 | 15.43 | 55.33 | -9.92 | 358.39 | 26.13 | 261.54 | 0.4416 | 377.3 | 302.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-13 04:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.45 | -13.13 | 2.44 | 30.18 | 256.27 | 0.5060 | 562.0 | 496.7 | |
| 0.00 | 1.13 | 0.00 | 0.64 | -7.33 | 1.33 | 29.07 | 267.90 | 0.4842 | 551.0 | 348.3 | |
| 1.65 | 3.04 | 0.93 | 1.72 | -7.93 | 1.20 | 28.94 | 266.65 | 0.4821 | 737.7 | 606.8 | |
| 2.78 | 7.38 | 1.56 | 4.15 | -7.93 | 0.72 | 28.46 | 266.66 | 0.4747 | 809.3 | 656.1 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -7.14 | 0.49 | 28.23 | 268.35 | 0.4715 | 671.0 | 571.8 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -8.03 | 0.45 | 28.19 | 266.44 | 0.4706 | 612.0 | 470.5 | |
| 0.43 | 2.34 | 0.24 | 1.31 | -7.50 | 0.38 | 28.12 | 267.58 | 0.4696 | 890.2 | 668.8 | |
| 0.00 | 4.25 | 0.00 | 2.38 | -7.80 | 0.34 | 28.07 | 266.94 | 0.4688 | 847.0 | 815.5 | |
| 0.00 | 2.00 | 0.00 | 1.12 | -6.71 | 0.16 | 27.90 | 269.30 | 0.4667 | 816.0 | 645.0 | |
| 0.00 | 1.91 | 0.00 | 1.07 | -7.67 | 0.02 | 27.76 | 267.23 | 0.4640 | 848.0 | 742.9 | |
| 0.00 | 1.39 | 0.00 | 0.78 | -7.08 | 359.95 | 27.68 | 268.52 | 0.4631 | 872.0 | 723.5 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -5.26 | 359.85 | 27.58 | 272.46 | 0.4634 | 655.0 | 530.3 | |
| 11.37 | 28.39 | 6.36 | 15.89 | -9.91 | 0.13 | 27.87 | 262.41 | 0.4665 | 1019.0 | 357.4 | |
| 2.95 | -13.00 | 1.65 | -13.00 | -9.70 | 0.08 | 27.82 | 262.85 | 0.4655 | 1028.2 | 999999 | |
| 0.00 | 3.30 | 0.00 | 1.84 | -8.07 | 359.84 | 27.58 | 266.37 | 0.4613 | 801.0 | 599.9 | |
| 0.00 | 2.60 | 0.00 | 1.45 | -7.84 | 359.76 | 27.50 | 266.88 | 0.4600 | 739.0 | 730.5 | |
| 8.07 | 10.77 | 4.50 | 6.00 | -9.27 | 359.70 | 27.44 | 263.74 | 0.4594 | 935.2 | 687.4 | |
| 0.00 | 0.52 | 0.00 | 0.29 | -11.03 | 357.59 | 25.32 | 259.41 | 0.4289 | 558.0 | 473.2 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -14.40 | 357.40 | 25.14 | 251.62 | 0.4354 | 737.0 | 571.8 | |
| 0.00 | 1.13 | 0.00 | 0.62 | -11.49 | 356.86 | 24.60 | 258.13 | 0.4186 | 822.0 | 649.4 | |
| 0.00 | 2.17 | 0.00 | 1.18 | -11.73 | 356.78 | 24.52 | 257.53 | 0.4179 | 725.0 | 600.4 | |
| 0.00 | 1.22 | 0.00 | 0.66 | -11.25 | 356.74 | 24.47 | 258.65 | 0.4162 | 752.0 | 586.5 | |
| 0.35 | 1.30 | 0.19 | 0.71 | -14.34 | 356.92 | 24.66 | 251.51 | 0.4280 | 856.8 | 769.3 | |
| 0.00 | 1.13 | 0.00 | 0.61 | -14.01 | 356.31 | 24.04 | 251.94 | 0.4176 | 752.0 | 623.8 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -14.17 | 356.09 | 23.83 | 251.45 | 0.4149 | 812.0 | 659.5 | |
| 0.00 | 0.87 | 0.00 | 0.47 | -15.06 | 355.65 | 23.39 | 249.08 | 0.4122 | 771.0 | 607.1 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -16.75 | 355.76 | 23.49 | 245.29 | 0.4220 | -664.0 | -632.3 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -4.79 | 354.03 | 21.76 | 275.17 | 0.3726 | -770.0 | -550.8 | |
| 0.00 | 1.13 | 0.00 | 0.61 | -16.10 | 354.76 | 22.50 | 246.00 | 0.4042 | -730.0 | -622.4 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -16.56 | 354.52 | 22.26 | 244.72 | 0.4032 | -706.0 | -544.2 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -14.04 | 352.20 | 19.94 | 249.12 | 0.3556 | -752.0 | -675.4 | |
| 0.00 | 1.39 | 0.00 | 0.73 | -12.13 | 351.85 | 19.59 | 254.17 | 0.3421 | -691.0 | -499.4 | |
| 0.00 | 2.08 | 0.00 | 1.10 | -12.44 | 351.55 | 19.29 | 253.08 | 0.3386 | -859.0 | -630.5 | |
| 0.00 | 1.48 | 0.00 | 0.78 | -15.17 | 351.75 | 19.49 | 245.69 | 0.3548 | -838.0 | -590.9 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -12.87 | 351.48 | 19.22 | 251.82 | 0.3393 | -873.0 | -741.1 | |
| 0.00 | 0.61 | 0.00 | 0.32 | -14.49 | 351.55 | 19.29 | 247.35 | 0.3481 | -700.0 | -571.7 | |
| 0.00 | 1.56 | 0.00 | 0.81 | -9.05 | 350.47 | 18.21 | 262.93 | 0.3123 | -701.0 | -481.5 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -9.83 | 350.29 | 18.02 | 260.36 | 0.3106 | -688.0 | -604.2 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -13.24 | 346.59 | 14.32 | 245.67 | 0.2655 | -754.0 | -665.0 | |
| 0.00 | 2.08 | 0.00 | 1.07 | -13.63 | 346.55 | 14.28 | 244.25 | 0.2674 | -753.0 | -661.7 | |
| 0.00 | 0.35 | 0.00 | 0.18 | -14.48 | 346.35 | 14.08 | 241.07 | 0.2704 | -479.0 | -573.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
