SDO HMI 2014-03-13 04:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.82 | 21.10 | 2.92 | 15.99 | -9.49 | 21.86 | 49.60 | 263.61 | 0.7571 | 44.6 | 139.0 | |
|
previous
or next observation for the same group /

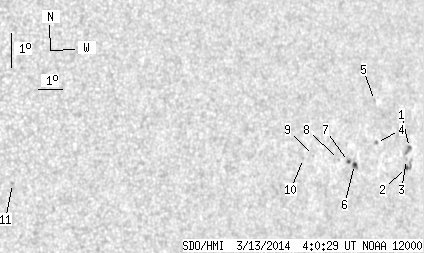

back to the solar disc SDO HMI 2014-03-13 04:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.61 | 3.99 | 0.48 | 3.14 | -9.06 | 23.72 | 51.46 | 264.16 | 0.7787 | 640.1 | 571.8 | |
| 0.96 | 5.04 | 0.75 | 3.96 | -9.66 | 23.70 | 51.44 | 263.38 | 0.7783 | 489.8 | 508.4 | |
| 0.00 | 0.78 | 0.00 | 0.61 | -9.43 | 23.65 | 51.39 | 263.69 | 0.7778 | 392.0 | 516.2 | |
| 0.00 | 1.48 | 0.00 | 1.12 | -9.06 | 22.14 | 49.88 | 264.23 | 0.7613 | -436.0 | -375.6 | |
| 0.00 | 1.22 | 0.00 | 0.92 | -7.83 | 21.83 | 49.57 | 265.87 | 0.7584 | -200.0 | -326.8 | |
| 1.56 | 3.82 | 1.17 | 2.86 | -9.81 | 21.26 | 49.00 | 263.27 | 0.7511 | -599.7 | -509.5 | |
| 0.69 | 1.56 | 0.52 | 1.16 | -9.74 | 20.97 | 48.71 | 263.36 | 0.7478 | -517.2 | -549.8 | |
| 0.00 | 1.04 | 0.00 | 0.77 | -9.72 | 20.51 | 48.24 | 263.39 | 0.7425 | 156.0 | 228.4 | |
| 0.00 | 0.69 | 0.00 | 0.50 | -9.71 | 19.38 | 47.11 | 263.44 | 0.7293 | 375.0 | 412.6 | |
| 0.00 | 0.52 | 0.00 | 0.37 | -9.84 | 18.95 | 46.69 | 263.27 | 0.7243 | 354.0 | 398.5 | |
| 0.00 | 0.96 | 0.00 | 0.58 | -11.51 | 7.48 | 35.22 | 260.22 | 0.5757 | -498.0 | -424.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
