SDO HMI 2014-03-13 05:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.11 | 24.05 | 5.44 | 18.39 | -9.67 | 21.78 | 50.07 | 263.37 | 0.7627 | -22.2 | 189.4 | |
|
previous
or next observation for the same group /

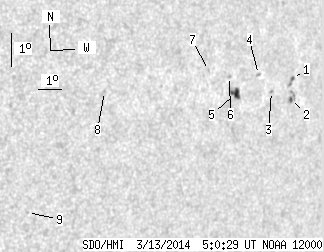

back to the solar disc SDO HMI 2014-03-13 05:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.69 | 3.65 | 0.55 | 2.90 | -9.06 | 23.72 | 52.00 | 264.13 | 0.7846 | 605.5 | 578.7 | |
| 1.04 | 5.30 | 0.83 | 4.22 | -9.69 | 23.75 | 52.04 | 263.33 | 0.7847 | 633.0 | 558.8 | |
| 0.00 | 1.04 | 0.00 | 0.81 | -9.54 | 22.79 | 51.08 | 263.55 | 0.7744 | 572.0 | 492.7 | |
| 0.00 | 1.39 | 0.00 | 1.07 | -9.10 | 22.08 | 50.36 | 264.15 | 0.7667 | -538.0 | -448.9 | |
| 5.38 | 9.12 | 4.06 | 6.87 | -9.76 | 21.12 | 49.41 | 263.31 | 0.7558 | -630.2 | -471.4 | |
| 0.00 | 1.04 | 0.00 | 0.78 | -9.28 | 20.75 | 49.04 | 263.96 | 0.7517 | -292.0 | -320.8 | |
| 0.00 | 0.78 | 0.00 | 0.57 | -9.19 | 19.77 | 48.06 | 264.11 | 0.7405 | 527.0 | 505.0 | |
| 0.00 | 1.04 | 0.00 | 0.71 | -10.21 | 15.42 | 43.70 | 262.74 | 0.6878 | 619.0 | 476.7 | |
| 0.00 | 0.69 | 0.00 | 0.46 | -14.06 | 12.97 | 41.26 | 256.85 | 0.6593 | 558.0 | 492.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
