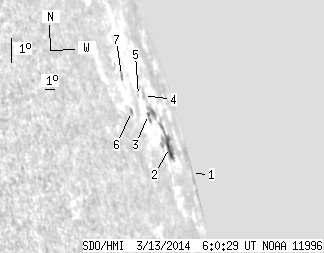

SDO HMI 2014-03-13 06:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.25 | 56.61 | 29.36 | 328.51 | 14.06 | 53.86 | 82.69 | 284.96 | 0.9947 | -90.9 | -251.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-13 06:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.11 | 0.00 | 195.38 | 13.85 | 56.45 | 85.28 | 284.35 | 0.9990 | -266.0 | -284.6 | |
| 7.47 | 22.75 | 27.13 | 80.61 | 14.00 | 51.24 | 80.08 | 285.27 | 0.9914 | -114.8 | -232.4 | |
| 0.78 | 10.33 | 2.23 | 30.92 | 14.72 | 48.79 | 77.62 | 286.41 | 0.9856 | -90.1 | -214.8 | |
| 0.00 | 3.04 | 0.00 | 8.82 | 15.32 | 48.80 | 77.64 | 287.00 | 0.9859 | -364.0 | -383.1 | |
| 0.00 | 0.69 | 0.00 | 1.87 | 15.22 | 47.96 | 76.79 | 287.05 | 0.9834 | 196.0 | 125.8 | |
| 0.00 | 1.48 | 0.00 | 3.41 | 14.50 | 46.28 | 75.11 | 286.64 | 0.9775 | 263.0 | 104.5 | |
| 0.00 | 3.21 | 0.00 | 7.50 | 15.63 | 46.22 | 75.05 | 287.79 | 0.9781 | 361.0 | 236.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
