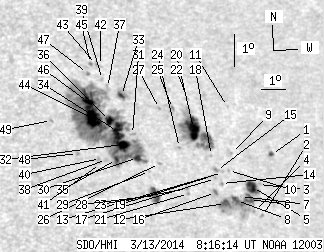

SDO HMI 2014-03-13 08:16:14 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 118.40 | 475.96 | 81.07 | 323.73 | 5.50 | 11.42 | 41.49 | 286.02 | 0.6879 | 165.4 | 128.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-13 08:16:14 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.30 | 2.52 | 0.97 | 1.87 | 5.50 | 16.65 | 46.71 | 283.99 | 0.7491 | -582.5 | -481.0 | |
| 0.00 | 1.22 | 0.00 | 0.89 | 3.59 | 16.09 | 46.16 | 281.67 | 0.7374 | -350.0 | -300.3 | |
| 0.00 | 1.74 | 0.00 | 1.27 | 4.52 | 15.99 | 46.06 | 282.94 | 0.7388 | 118.0 | 38.2 | |
| 0.00 | 0.78 | 0.00 | 0.57 | 3.68 | 15.75 | 45.82 | 281.90 | 0.7337 | -279.0 | -260.4 | |
| 9.64 | 60.01 | 7.02 | 43.23 | 4.41 | 15.72 | 45.79 | 282.87 | 0.7354 | -666.0 | -543.5 | |
| 4.17 | -5.00 | 3.02 | -5.00 | 4.03 | 15.56 | 45.63 | 282.42 | 0.7325 | -700.5 | 999999 | |
| 0.00 | 1.39 | 0.00 | 1.00 | 4.09 | 15.18 | 45.25 | 282.62 | 0.7282 | -410.0 | -512.9 | |
| 2.87 | -5.00 | 2.06 | -5.00 | 3.95 | 15.00 | 45.07 | 282.50 | 0.7257 | -805.9 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.44 | 5.37 | 14.91 | 44.98 | 284.43 | 0.7290 | -233.0 | -375.9 | |
| 0.00 | 0.96 | 0.00 | 0.68 | 4.83 | 14.73 | 44.80 | 283.78 | 0.7253 | -363.0 | -408.7 | |
| 0.00 | 0.87 | 0.00 | 0.63 | 6.80 | 14.89 | 44.96 | 286.32 | 0.7335 | -253.0 | -324.8 | |
| 4.78 | -5.00 | 3.40 | -5.00 | 3.81 | 14.53 | 44.59 | 282.48 | 0.7198 | -834.9 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.74 | 4.75 | 14.47 | 44.54 | 283.76 | 0.7220 | -595.0 | -592.9 | |
| 0.00 | 1.39 | 0.00 | 0.99 | 4.41 | 14.40 | 44.47 | 283.32 | 0.7201 | -519.0 | -514.3 | |
| 0.00 | 2.08 | 0.00 | 1.48 | 4.79 | 14.22 | 44.29 | 283.90 | 0.7192 | -585.0 | -575.8 | |
| 0.61 | 2.17 | 0.43 | 1.54 | 4.11 | 14.13 | 44.19 | 283.02 | 0.7160 | -781.6 | -743.6 | |
| 0.00 | 0.96 | 0.00 | 0.68 | 4.54 | 14.16 | 44.23 | 283.58 | 0.7177 | -614.0 | -586.4 | |
| 0.00 | 0.87 | 0.00 | 0.62 | 5.23 | 14.05 | 44.12 | 284.55 | 0.7186 | -551.0 | -494.9 | |
| 0.00 | 0.35 | 0.00 | 0.25 | 4.58 | 13.95 | 44.02 | 283.72 | 0.7154 | -595.0 | -574.8 | |
| 21.02 | 66.70 | 14.80 | 46.99 | 5.99 | 13.38 | 43.44 | 285.84 | 0.7132 | -897.0 | -535.9 | |
| 0.00 | 1.48 | 0.00 | 1.02 | 3.98 | 13.00 | 43.07 | 283.23 | 0.7021 | -435.0 | -437.9 | |
| 0.00 | 1.39 | 0.00 | 0.98 | 6.90 | 13.23 | 43.29 | 287.12 | 0.7147 | -416.0 | -324.7 | |
| 0.00 | 0.96 | 0.00 | 0.66 | 4.13 | 12.97 | 43.04 | 283.45 | 0.7022 | -736.0 | -625.5 | |
| 0.00 | 0.96 | 0.00 | 0.66 | 5.36 | 12.74 | 42.81 | 285.23 | 0.7035 | 434.0 | 363.7 | |
| 0.00 | 1.74 | 0.00 | 1.21 | 6.54 | 12.57 | 42.64 | 286.90 | 0.7057 | -617.0 | -626.7 | |
| 0.00 | 1.30 | 0.00 | 0.89 | 4.80 | 11.88 | 41.95 | 284.79 | 0.6913 | 168.0 | 203.6 | |
| 0.00 | 1.22 | 0.00 | 0.84 | 6.49 | 12.03 | 42.10 | 287.06 | 0.6992 | -605.0 | -575.6 | |
| 7.30 | 11.03 | 4.95 | 7.48 | 3.81 | 11.65 | 41.72 | 283.48 | 0.6851 | 754.7 | 427.3 | |
| 0.00 | 0.87 | 0.00 | 0.59 | 4.52 | 11.46 | 41.52 | 284.56 | 0.6851 | 193.0 | 223.9 | |
| 4.17 | 289.12 | 2.81 | 192.01 | 4.91 | 11.01 | 41.07 | 285.29 | 0.6810 | 438.8 | 439.0 | |
| 0.00 | 2.00 | 0.00 | 1.35 | 5.60 | 10.86 | 40.93 | 286.32 | 0.6817 | 423.0 | 298.2 | |
| 8.86 | -30.00 | 5.93 | -30.00 | 5.26 | 10.44 | 40.51 | 286.02 | 0.6753 | 960.1 | 999999 | |
| 2.52 | 5.38 | 1.70 | 3.64 | 6.76 | 10.54 | 40.61 | 288.10 | 0.6823 | 360.0 | 44.2 | |
| 13.55 | -30.00 | 9.07 | -30.00 | 5.64 | 10.27 | 40.34 | 286.64 | 0.6747 | 939.9 | 999999 | |
| 2.08 | -30.00 | 1.39 | -30.00 | 4.78 | 10.16 | 40.23 | 285.45 | 0.6701 | 755.5 | 999999 | |
| 5.65 | -30.00 | 3.77 | -30.00 | 5.95 | 9.99 | 40.05 | 287.21 | 0.6724 | 870.5 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.93 | 6.96 | 10.01 | 40.07 | 288.63 | 0.6767 | 210.0 | 147.0 | |
| 0.00 | 1.82 | 0.00 | 1.21 | 4.75 | 9.77 | 39.84 | 285.57 | 0.6651 | 613.0 | 454.5 | |
| 0.00 | 1.39 | 0.00 | 0.93 | 7.20 | 9.83 | 39.90 | 289.04 | 0.6756 | 369.0 | 271.4 | |
| 0.00 | 0.43 | 0.00 | 0.29 | 4.76 | 9.54 | 39.61 | 285.69 | 0.6622 | 603.0 | 566.8 | |
| 0.00 | 0.43 | 0.00 | 0.29 | 4.60 | 9.53 | 39.59 | 285.47 | 0.6615 | 539.0 | 494.6 | |
| 0.00 | 1.22 | 0.00 | 0.82 | 7.62 | 9.80 | 39.87 | 289.65 | 0.6770 | 433.0 | 415.4 | |
| 0.00 | 0.96 | 0.00 | 0.64 | 7.64 | 9.65 | 39.72 | 289.75 | 0.6752 | 278.0 | 325.5 | |
| 21.28 | -30.00 | 14.07 | -30.00 | 5.96 | 9.32 | 39.39 | 287.52 | 0.6642 | 1187.4 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.87 | 7.65 | 9.41 | 39.48 | 289.88 | 0.6725 | 578.0 | 528.5 | |
| 8.60 | -30.00 | 5.68 | -30.00 | 6.44 | 9.21 | 39.28 | 288.26 | 0.6648 | 1054.9 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.87 | 7.33 | 9.26 | 39.33 | 289.51 | 0.6692 | 422.0 | 431.7 | |
| 0.00 | 1.39 | 0.00 | 0.90 | 4.84 | 8.65 | 38.72 | 286.20 | 0.6514 | 671.0 | 683.5 | |
| 0.00 | 1.22 | 0.00 | 0.78 | 5.77 | 7.73 | 37.80 | 288.01 | 0.6435 | 553.0 | 542.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
