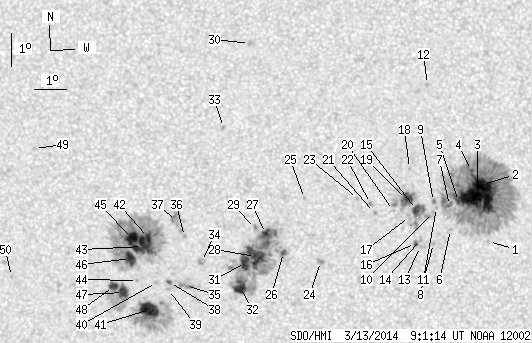

SDO HMI 2014-03-13 09:01:14 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 215.70 | 1036.20 | 110.03 | 527.74 | -18.67 | 324.32 | -5.20 | 160.42 | 0.2286 | -24.3 | 24.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-13 09:01:14 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.56 | 0.00 | 0.79 | -19.00 | 330.00 | 0.48 | 182.19 | 0.2058 | 519.0 | 339.3 | |
| 21.45 | 405.30 | 10.79 | 204.13 | -17.27 | 329.81 | 0.29 | 181.56 | 0.1759 | 1523.0 | 485.1 | |
| 42.81 | -2.00 | 21.57 | -2.00 | -17.73 | 329.65 | 0.13 | 180.67 | 0.1837 | 1385.8 | 999999 | |
| 0.96 | -2.00 | 0.48 | -2.00 | -16.85 | 329.47 | -0.06 | 179.68 | 0.1685 | 964.9 | 999999 | |
| 1.82 | -2.00 | 0.92 | -2.00 | -17.79 | 329.06 | -0.47 | 177.59 | 0.1849 | 968.6 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -18.64 | 328.80 | -0.72 | 176.57 | 0.1997 | 818.0 | 582.2 | |
| 1.30 | -2.00 | 0.66 | -2.00 | -17.91 | 328.77 | -0.75 | 176.18 | 0.1872 | 925.7 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -17.97 | 328.37 | -1.15 | 174.15 | 0.1888 | 940.0 | 720.5 | |
| 0.52 | 2.08 | 0.26 | 1.05 | -17.78 | 328.27 | -1.25 | 173.57 | 0.1859 | 1117.2 | 768.1 | |
| 0.00 | 1.48 | 0.00 | 0.74 | -18.12 | 328.27 | -1.25 | 173.76 | 0.1916 | 873.0 | 655.5 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -19.06 | 328.26 | -1.26 | 174.24 | 0.2077 | -884.0 | -621.5 | |
| 0.00 | 1.56 | 0.00 | 0.78 | -14.26 | 328.12 | -1.41 | 169.06 | 0.1259 | 951.0 | 794.2 | |
| 0.00 | 2.17 | 0.00 | 1.10 | -19.15 | 327.85 | -1.67 | 172.44 | 0.2100 | -581.0 | -561.4 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -18.94 | 327.86 | -1.67 | 172.30 | 0.2064 | -648.0 | -615.4 | |
| 5.47 | 21.88 | 2.76 | 11.05 | -18.02 | 327.74 | -1.78 | 171.06 | 0.1912 | 1132.4 | 749.6 | |
| 1.04 | 2.34 | 0.53 | 1.19 | -19.06 | 327.70 | -1.83 | 171.67 | 0.2088 | -1112.6 | -863.6 | |
| 0.00 | 2.78 | 0.00 | 1.40 | -18.24 | 327.52 | -2.00 | 170.17 | 0.1954 | 221.0 | 298.0 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -16.78 | 327.54 | -1.99 | 168.74 | 0.1707 | 710.0 | 526.4 | |
| 9.81 | 26.75 | 4.95 | 13.49 | -17.72 | 327.43 | -2.09 | 169.23 | 0.1869 | 1203.5 | 731.0 | |
| 0.00 | 1.56 | 0.00 | 0.79 | -18.05 | 327.02 | -2.50 | 167.57 | 0.1939 | 674.0 | 401.4 | |
| 0.00 | 1.22 | 0.00 | 0.61 | -18.11 | 326.42 | -3.10 | 164.82 | 0.1973 | 1019.0 | 926.4 | |
| 0.00 | 2.00 | 0.00 | 1.01 | -17.83 | 326.30 | -3.22 | 163.86 | 0.1933 | 1181.0 | 928.8 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -17.68 | 325.90 | -3.62 | 161.71 | 0.1928 | 938.0 | 795.1 | |
| 0.00 | 2.87 | 0.00 | 1.46 | -19.58 | 324.68 | -4.84 | 159.70 | 0.2302 | 1083.0 | 878.1 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -17.66 | 324.24 | -5.29 | 154.27 | 0.2032 | -995.0 | -729.8 | |
| 1.82 | 167.69 | 0.93 | 85.64 | -19.29 | 323.52 | -6.01 | 154.84 | 0.2334 | -1022.3 | -412.6 | |
| 3.99 | -26.00 | 2.03 | -26.00 | -18.71 | 322.97 | -6.55 | 151.65 | 0.2287 | 679.4 | 999999 | |
| 21.02 | -26.00 | 10.73 | -26.00 | -19.40 | 322.62 | -6.90 | 151.91 | 0.2418 | -1202.6 | 999999 | |
| 0.00 | 2.69 | 0.00 | 1.37 | -18.55 | 322.66 | -6.86 | 150.19 | 0.2290 | 689.0 | 473.5 | |
| 0.00 | 1.82 | 0.00 | 0.91 | -12.97 | 322.67 | -6.85 | 131.13 | 0.1551 | 995.0 | 797.8 | |
| 10.07 | -26.00 | 5.15 | -26.00 | -19.58 | 322.30 | -7.23 | 151.18 | 0.2470 | -1089.7 | 999999 | |
| 11.72 | -26.00 | 6.01 | -26.00 | -20.34 | 322.10 | -7.42 | 152.06 | 0.2597 | 966.2 | 999999 | |
| 0.00 | 1.56 | 0.00 | 0.79 | -15.48 | 321.78 | -7.74 | 138.20 | 0.1957 | 1035.0 | 859.9 | |
| 0.00 | 4.43 | 0.00 | 2.27 | -19.52 | 320.89 | -8.63 | 146.66 | 0.2584 | -801.0 | -797.8 | |
| 0.00 | 6.43 | 0.00 | 3.31 | -20.25 | 320.34 | -9.18 | 146.63 | 0.2735 | -997.0 | -927.4 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -18.75 | 320.39 | -9.13 | 143.35 | 0.2528 | -904.0 | -799.0 | |
| 0.00 | 12.33 | 0.00 | 6.31 | -18.29 | 320.16 | -9.36 | 141.50 | 0.2491 | -977.0 | -887.9 | |
| 0.87 | 2.26 | 0.45 | 1.16 | -20.14 | 319.83 | -9.69 | 145.01 | 0.2769 | -1084.4 | -930.1 | |
| 0.00 | 1.65 | 0.00 | 0.85 | -20.36 | 319.78 | -9.74 | 145.35 | 0.2802 | -760.0 | -572.5 | |
| 0.00 | 2.17 | 0.00 | 1.12 | -20.13 | 319.41 | -10.11 | 143.87 | 0.2808 | -728.0 | -653.6 | |
| 19.45 | 78.85 | 10.08 | 40.88 | -20.96 | 319.13 | -10.39 | 144.91 | 0.2944 | -1227.2 | -318.6 | |
| 4.86 | 220.32 | 2.50 | 113.33 | -18.76 | 319.24 | -10.28 | 140.15 | 0.2648 | -1491.2 | -430.6 | |
| 20.93 | -42.00 | 10.76 | -42.00 | -19.03 | 319.03 | -10.49 | 140.27 | 0.2704 | -1273.4 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.58 | -20.06 | 318.80 | -10.72 | 142.14 | 0.2859 | -813.0 | -613.8 | |
| 13.29 | -42.00 | 6.83 | -42.00 | -18.78 | 318.73 | -10.79 | 138.86 | 0.2706 | -1256.1 | 999999 | |
| 9.73 | -42.00 | 5.02 | -42.00 | -19.38 | 318.63 | -10.90 | 140.10 | 0.2793 | -1017.4 | 999999 | |
| 7.99 | 45.68 | 4.14 | 23.70 | -20.42 | 318.33 | -11.20 | 141.77 | 0.2954 | -1147.8 | -260.9 | |
| 4.78 | -47.00 | 2.48 | -47.00 | -20.22 | 318.02 | -11.51 | 140.60 | 0.2962 | -980.2 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.94 | -15.97 | 315.79 | -13.73 | 124.37 | 0.2777 | -849.0 | -582.2 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -19.82 | 314.73 | -14.79 | 132.82 | 0.3290 | -764.0 | -630.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
