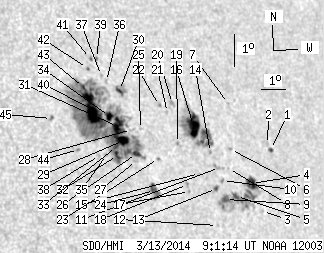

SDO HMI 2014-03-13 09:01:14 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 104.14 | 473.32 | 71.40 | 324.20 | 5.53 | 11.43 | 41.91 | 285.88 | 0.6931 | 212.8 | 98.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-13 09:01:14 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.04 | 2.26 | 0.78 | 1.70 | 5.54 | 16.66 | 47.13 | 283.90 | 0.7538 | -621.8 | -480.4 | |
| 0.00 | 2.00 | 0.00 | 1.50 | 5.68 | 16.54 | 47.02 | 284.12 | 0.7530 | -446.0 | -366.0 | |
| 0.00 | 0.87 | 0.00 | 0.64 | 3.61 | 16.13 | 46.61 | 281.55 | 0.7426 | -480.0 | -414.9 | |
| 7.99 | 63.40 | 5.86 | 46.04 | 4.42 | 15.72 | 46.20 | 282.75 | 0.7401 | -707.0 | -528.5 | |
| 2.00 | -4.00 | 1.44 | -4.00 | 3.96 | 15.03 | 45.51 | 282.37 | 0.7310 | -832.4 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.82 | 5.38 | 14.90 | 45.38 | 284.29 | 0.7336 | -462.0 | -450.3 | |
| 0.00 | 0.87 | 0.00 | 0.64 | 6.79 | 14.97 | 45.45 | 286.12 | 0.7389 | -516.0 | -424.0 | |
| 0.00 | 0.61 | 0.00 | 0.44 | 4.79 | 14.76 | 45.24 | 283.56 | 0.7302 | -642.0 | -603.7 | |
| 2.78 | -4.00 | 1.99 | -4.00 | 3.83 | 14.56 | 45.03 | 282.34 | 0.7250 | -841.7 | 999999 | |
| 0.00 | 1.56 | 0.00 | 1.12 | 4.40 | 14.47 | 44.95 | 283.14 | 0.7257 | -811.0 | -629.4 | |
| 0.00 | 3.91 | 0.00 | 2.80 | 4.78 | 14.38 | 44.85 | 283.69 | 0.7257 | -743.0 | -644.0 | |
| 0.00 | 1.04 | 0.00 | 0.74 | 3.00 | 14.17 | 44.65 | 281.36 | 0.7181 | -643.0 | -493.8 | |
| 1.13 | 2.26 | 0.80 | 1.61 | 4.13 | 14.20 | 44.68 | 282.87 | 0.7217 | -840.5 | -755.9 | |
| 0.00 | 1.30 | 0.00 | 0.93 | 5.21 | 14.03 | 44.51 | 284.38 | 0.7231 | -617.0 | -501.7 | |
| 0.00 | 0.52 | 0.00 | 0.37 | 4.52 | 13.51 | 43.99 | 283.64 | 0.7148 | -723.0 | -642.2 | |
| 18.85 | 64.09 | 13.37 | 45.50 | 5.97 | 13.40 | 43.87 | 285.64 | 0.7182 | -880.4 | -564.3 | |
| 0.00 | 0.78 | 0.00 | 0.55 | 3.94 | 13.06 | 43.53 | 283.00 | 0.7076 | -708.0 | -615.4 | |
| 0.00 | 1.82 | 0.00 | 1.27 | 4.14 | 12.99 | 43.47 | 283.31 | 0.7074 | -750.0 | -684.5 | |
| 0.00 | 1.22 | 0.00 | 0.85 | 5.36 | 12.67 | 43.15 | 285.09 | 0.7076 | 426.0 | 341.9 | |
| 0.00 | 2.95 | 0.00 | 2.07 | 6.58 | 12.59 | 43.07 | 286.77 | 0.7109 | -803.0 | -643.4 | |
| 0.00 | 0.61 | 0.00 | 0.42 | 6.28 | 12.35 | 42.83 | 286.47 | 0.7070 | -689.0 | -659.7 | |
| 0.00 | 1.39 | 0.00 | 0.97 | 6.47 | 12.05 | 42.52 | 286.85 | 0.7041 | -726.0 | -641.4 | |
| 0.00 | 1.39 | 0.00 | 0.96 | 4.83 | 11.85 | 42.33 | 284.69 | 0.6960 | 416.0 | 217.7 | |
| 4.69 | 10.16 | 3.20 | 6.93 | 3.84 | 11.62 | 42.10 | 283.39 | 0.6899 | 807.7 | 559.3 | |
| 0.00 | 0.78 | 0.00 | 0.53 | 5.66 | 11.20 | 41.67 | 286.10 | 0.6910 | 347.0 | 298.2 | |
| 3.13 | 282.15 | 2.12 | 188.50 | 4.91 | 10.97 | 41.45 | 285.14 | 0.6856 | 531.4 | 450.0 | |
| 0.00 | 1.74 | 0.00 | 1.18 | 4.70 | 10.95 | 41.43 | 284.85 | 0.6846 | -238.0 | -160.8 | |
| 0.00 | 2.00 | 0.00 | 1.36 | 5.63 | 10.83 | 41.31 | 286.21 | 0.6865 | 348.0 | 252.6 | |
| 7.82 | -26.00 | 5.27 | -26.00 | 5.27 | 10.48 | 40.96 | 285.84 | 0.6809 | 909.9 | 999999 | |
| 1.82 | 8.86 | 1.24 | 6.02 | 6.79 | 10.47 | 40.94 | 287.99 | 0.6865 | 479.7 | -46.7 | |
| 10.77 | -26.00 | 7.25 | -26.00 | 5.68 | 10.28 | 40.76 | 286.51 | 0.6799 | 934.1 | 999999 | |
| 2.95 | -26.00 | 1.98 | -26.00 | 4.79 | 10.21 | 40.68 | 285.28 | 0.6757 | 774.6 | 999999 | |
| 1.65 | -26.00 | 1.11 | -26.00 | 5.06 | 10.19 | 40.66 | 285.67 | 0.6765 | 862.0 | 999999 | |
| 5.04 | -26.00 | 3.38 | -26.00 | 5.96 | 9.99 | 40.46 | 287.03 | 0.6774 | 893.0 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.87 | 4.78 | 9.77 | 40.25 | 285.45 | 0.6703 | 658.0 | 490.1 | |
| 0.00 | 1.30 | 0.00 | 0.88 | 7.03 | 9.97 | 40.45 | 288.54 | 0.6815 | 436.0 | 321.1 | |
| 0.00 | 1.13 | 0.00 | 0.76 | 7.20 | 9.80 | 40.27 | 288.86 | 0.6801 | 523.0 | 411.2 | |
| 0.00 | 1.22 | 0.00 | 0.81 | 4.73 | 9.49 | 39.97 | 285.49 | 0.6667 | 693.0 | 582.7 | |
| 0.00 | 0.96 | 0.00 | 0.64 | 7.71 | 9.66 | 40.13 | 289.64 | 0.6805 | 464.0 | 371.5 | |
| 30.48 | -26.00 | 20.28 | -26.00 | 6.12 | 9.33 | 39.81 | 287.55 | 0.6700 | 1088.0 | 999999 | |
| 0.35 | 1.48 | 0.23 | 0.99 | 7.69 | 9.42 | 39.90 | 289.73 | 0.6776 | 598.5 | 501.3 | |
| 0.35 | 1.22 | 0.23 | 0.81 | 7.37 | 9.26 | 39.74 | 289.36 | 0.6744 | 602.2 | 500.2 | |
| 1.30 | -26.00 | 0.87 | -26.00 | 6.77 | 9.04 | 39.52 | 288.61 | 0.6691 | 614.0 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.74 | 4.85 | 8.68 | 39.16 | 286.01 | 0.6570 | 787.0 | 725.0 | |
| 0.00 | 1.91 | 0.00 | 1.24 | 5.71 | 7.71 | 38.19 | 287.73 | 0.6482 | 755.0 | 677.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
