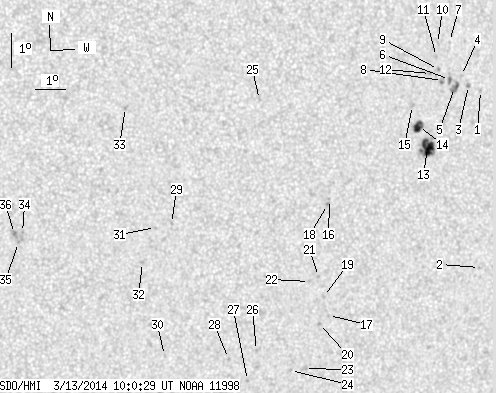

SDO HMI 2014-03-13 10:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.23 | 82.28 | 11.66 | 46.70 | -10.61 | 358.07 | 29.09 | 260.47 | 0.4875 | 368.7 | 264.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-13 10:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 0.77 | -8.03 | 1.84 | 32.85 | 266.33 | 0.5404 | 723.0 | 549.1 | |
| 0.00 | 1.04 | 0.00 | 0.62 | -13.29 | 2.44 | 33.46 | 256.73 | 0.5534 | 689.0 | 505.0 | |
| 0.00 | 1.91 | 0.00 | 1.12 | -7.91 | 1.40 | 32.41 | 266.57 | 0.5340 | 846.0 | 684.5 | |
| 0.00 | 1.22 | 0.00 | 0.71 | -7.62 | 1.12 | 32.14 | 267.11 | 0.5301 | 589.0 | 454.8 | |
| 0.00 | 6.60 | 0.00 | 3.84 | -8.00 | 0.90 | 31.92 | 266.41 | 0.5268 | 834.0 | 708.9 | |
| 0.52 | 2.26 | 0.30 | 1.31 | -7.77 | 0.71 | 31.73 | 266.85 | 0.5239 | 903.3 | 776.5 | |
| 0.00 | 0.35 | 0.00 | 0.20 | -6.64 | 0.62 | 31.64 | 269.02 | 0.5232 | 541.0 | 444.2 | |
| 0.00 | 3.21 | 0.00 | 1.86 | -7.82 | 0.46 | 31.48 | 266.77 | 0.5203 | 889.0 | 789.2 | |
| 0.00 | 1.48 | 0.00 | 0.85 | -7.50 | 0.30 | 31.32 | 267.39 | 0.5179 | 943.0 | 861.2 | |
| 0.00 | 1.04 | 0.00 | 0.60 | -6.73 | 0.20 | 31.22 | 268.89 | 0.5170 | 491.0 | 545.2 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -7.12 | 0.20 | 31.22 | 268.14 | 0.5166 | 828.0 | 672.9 | |
| 0.00 | 1.13 | 0.00 | 0.65 | -7.63 | 0.03 | 31.04 | 267.14 | 0.5138 | 806.0 | 743.2 | |
| 13.37 | 21.80 | 7.72 | 12.58 | -9.84 | 0.12 | 31.14 | 262.84 | 0.5156 | 1027.0 | 596.6 | |
| 6.34 | 8.77 | 3.64 | 5.04 | -9.24 | 359.74 | 30.76 | 264.00 | 0.5097 | 960.0 | 697.9 | |
| 0.00 | 1.48 | 0.00 | 0.85 | -8.63 | 359.48 | 30.50 | 265.20 | 0.5056 | 767.0 | 612.5 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -11.59 | 356.89 | 27.91 | 258.77 | 0.4693 | 750.0 | 573.6 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -15.06 | 357.29 | 28.31 | 251.71 | 0.4842 | 707.0 | 563.7 | |
| 0.00 | 1.30 | 0.00 | 0.73 | -11.74 | 356.83 | 27.85 | 258.43 | 0.4688 | 878.0 | 704.0 | |
| 0.00 | 1.48 | 0.00 | 0.83 | -14.50 | 357.03 | 28.05 | 252.74 | 0.4787 | 837.0 | 583.9 | |
| 0.00 | 1.39 | 0.00 | 0.78 | -15.32 | 357.01 | 28.03 | 251.06 | 0.4811 | 881.0 | 711.6 | |
| 0.00 | 1.22 | 0.00 | 0.68 | -13.91 | 356.78 | 27.80 | 253.85 | 0.4732 | 694.0 | 521.1 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -14.08 | 356.49 | 27.51 | 253.39 | 0.4695 | 841.0 | 696.6 | |
| 0.00 | 3.13 | 0.00 | 1.77 | -16.70 | 356.69 | 27.71 | 248.11 | 0.4819 | -649.0 | -597.9 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -16.78 | 356.21 | 27.23 | 247.67 | 0.4755 | -771.0 | -640.1 | |
| 0.00 | 0.87 | 0.00 | 0.47 | -8.74 | 354.26 | 25.28 | 264.73 | 0.4257 | -545.0 | -408.9 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -16.24 | 354.95 | 25.97 | 248.04 | 0.4552 | -580.0 | -461.5 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -17.16 | 354.77 | 25.79 | 246.00 | 0.4569 | -771.0 | -597.5 | |
| 0.00 | 1.22 | 0.00 | 0.67 | -16.53 | 354.03 | 25.04 | 246.83 | 0.4432 | -433.0 | -503.0 | |
| 0.00 | 1.30 | 0.00 | 0.70 | -12.58 | 351.65 | 22.67 | 254.64 | 0.3918 | -809.0 | -612.5 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -16.55 | 351.85 | 22.87 | 245.21 | 0.4121 | -635.0 | -484.1 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -12.72 | 351.14 | 22.16 | 254.01 | 0.3843 | -820.0 | -650.8 | |
| 0.00 | 1.30 | 0.00 | 0.70 | -13.79 | 350.81 | 21.83 | 251.10 | 0.3833 | -834.0 | -685.1 | |
| 0.00 | 1.65 | 0.00 | 0.87 | -9.19 | 349.89 | 20.91 | 263.04 | 0.3565 | -824.0 | -729.4 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -13.05 | 346.84 | 17.85 | 250.13 | 0.3190 | -755.0 | -620.3 | |
| 0.00 | 0.96 | 0.00 | 0.50 | -13.35 | 346.73 | 17.75 | 249.12 | 0.3188 | -838.0 | -704.1 | |
| 0.00 | 3.47 | 0.00 | 1.81 | -13.09 | 346.58 | 17.60 | 249.78 | 0.3152 | -1033.0 | -828.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
