SDO HMI 2014-03-13 10:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.42 | 23.80 | 6.87 | 18.98 | -9.74 | 21.11 | 52.12 | 263.20 | 0.7844 | -5.1 | 80.4 | |
|
previous
or next observation for the same group /

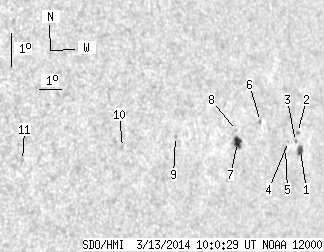

back to the solar disc SDO HMI 2014-03-13 10:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.21 | 5.21 | 2.74 | 4.44 | -9.65 | 24.09 | 55.11 | 263.25 | 0.8165 | 582.2 | 330.2 | |
| 0.00 | 1.22 | 0.00 | 1.03 | -9.14 | 23.81 | 54.83 | 263.89 | 0.8139 | 386.0 | 482.8 | |
| 0.00 | 0.96 | 0.00 | 0.81 | -9.41 | 23.77 | 54.79 | 263.56 | 0.8134 | 347.0 | 475.7 | |
| 0.00 | 0.78 | 0.00 | 0.66 | -9.45 | 23.41 | 54.43 | 263.53 | 0.8097 | 523.0 | 413.6 | |
| 0.00 | 1.22 | 0.00 | 1.02 | -9.67 | 23.30 | 54.32 | 263.26 | 0.8086 | 269.0 | 341.5 | |
| 0.00 | 1.04 | 0.00 | 0.84 | -9.00 | 21.88 | 52.89 | 264.16 | 0.7941 | -375.0 | -349.3 | |
| 5.21 | 7.90 | 4.13 | 6.27 | -9.73 | 20.89 | 51.90 | 263.27 | 0.7833 | -679.3 | -455.0 | |
| 0.00 | 0.61 | 0.00 | 0.48 | -9.38 | 20.76 | 51.78 | 263.72 | 0.7821 | -442.0 | -504.1 | |
| 0.00 | 1.13 | 0.00 | 0.84 | -9.82 | 17.95 | 48.96 | 263.22 | 0.7508 | 222.0 | 345.5 | |
| 0.00 | 2.17 | 0.00 | 1.55 | -10.36 | 15.65 | 46.67 | 262.52 | 0.7240 | 451.0 | 244.9 | |
| 0.00 | 1.56 | 0.00 | 1.04 | -11.11 | 11.51 | 42.53 | 261.37 | 0.6732 | -251.0 | -241.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
