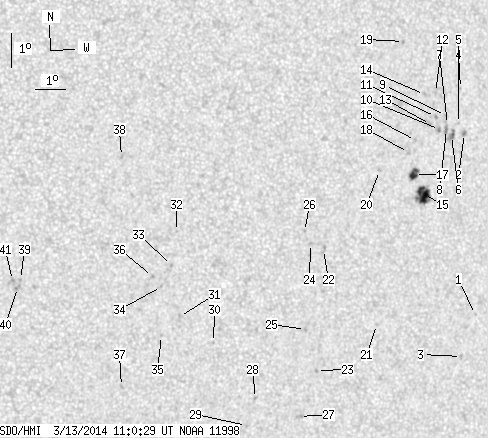

SDO HMI 2014-03-13 11:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.05 | 89.54 | 11.63 | 51.15 | -10.42 | 358.17 | 29.74 | 260.98 | 0.4969 | 364.7 | 294.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-13 11:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.52 | -13.27 | 2.47 | 34.04 | 256.90 | 0.5615 | 581.0 | 480.9 | |
| 0.00 | 2.17 | 0.00 | 1.28 | -7.91 | 1.41 | 32.98 | 266.54 | 0.5423 | 902.0 | 685.6 | |
| 0.00 | 1.65 | 0.00 | 0.98 | -14.55 | 2.17 | 33.73 | 254.54 | 0.5598 | 702.0 | 551.8 | |
| 0.00 | 0.78 | 0.00 | 0.46 | -6.58 | 1.16 | 32.73 | 269.02 | 0.5393 | 583.0 | 467.7 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -7.63 | 1.17 | 32.74 | 267.08 | 0.5389 | 589.0 | 420.5 | |
| 0.00 | 6.43 | 0.00 | 3.76 | -8.00 | 0.96 | 32.52 | 266.39 | 0.5356 | 747.0 | 661.5 | |
| 0.00 | 0.78 | 0.00 | 0.46 | -7.68 | 0.79 | 32.35 | 266.99 | 0.5332 | 591.0 | 561.9 | |
| 0.00 | 3.30 | 0.00 | 1.93 | -7.83 | 0.76 | 32.33 | 266.71 | 0.5328 | 916.0 | 718.0 | |
| 0.00 | 1.13 | 0.00 | 0.66 | -7.42 | 0.69 | 32.26 | 267.49 | 0.5319 | 770.0 | 606.2 | |
| 0.00 | 1.65 | 0.00 | 0.96 | -7.85 | 0.52 | 32.08 | 266.68 | 0.5291 | 1016.0 | 899.3 | |
| 0.00 | 1.30 | 0.00 | 0.76 | -7.47 | 0.34 | 31.91 | 267.41 | 0.5267 | 866.0 | 819.3 | |
| 0.00 | 1.04 | 0.00 | 0.61 | -6.76 | 0.29 | 31.85 | 268.77 | 0.5263 | 770.0 | 494.8 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -7.72 | 0.19 | 31.75 | 266.94 | 0.5243 | 842.0 | 759.5 | |
| 0.00 | 1.65 | 0.00 | 0.96 | -6.84 | 359.91 | 31.47 | 268.64 | 0.5206 | 691.0 | 630.8 | |
| 13.89 | 21.45 | 8.07 | 12.45 | -9.82 | 0.13 | 31.70 | 262.92 | 0.5238 | 1011.2 | 578.3 | |
| 0.00 | 1.65 | 0.00 | 0.95 | -8.23 | 359.70 | 31.26 | 265.97 | 0.5170 | 794.0 | 562.5 | |
| 6.16 | 8.42 | 3.56 | 4.87 | -9.24 | 359.76 | 31.32 | 264.00 | 0.5180 | 964.8 | 670.8 | |
| 0.00 | 2.17 | 0.00 | 1.25 | -8.60 | 359.48 | 31.05 | 265.24 | 0.5138 | 701.0 | 531.2 | |
| 0.00 | 1.22 | 0.00 | 0.70 | -5.31 | 359.07 | 30.64 | 271.73 | 0.5097 | 710.0 | 559.0 | |
| 0.00 | 1.30 | 0.00 | 0.74 | -9.20 | 358.52 | 30.09 | 264.03 | 0.4996 | 745.0 | 601.4 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -13.79 | 358.96 | 30.52 | 255.03 | 0.5126 | 718.0 | 592.4 | |
| 0.00 | 3.21 | 0.00 | 1.81 | -11.67 | 356.83 | 28.39 | 258.73 | 0.4768 | 524.0 | 665.5 | |
| 0.00 | 1.30 | 0.00 | 0.74 | -15.29 | 357.05 | 28.61 | 251.37 | 0.4895 | 859.0 | 718.1 | |
| 0.00 | 1.65 | 0.00 | 0.92 | -11.51 | 356.36 | 27.92 | 258.94 | 0.4695 | 811.0 | 689.0 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -14.09 | 356.49 | 28.06 | 253.58 | 0.4776 | 852.0 | 720.6 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -11.17 | 356.12 | 27.68 | 259.62 | 0.4653 | 717.0 | 577.2 | |
| 0.00 | 3.39 | 0.00 | 1.92 | -16.71 | 356.67 | 28.23 | 248.37 | 0.4894 | -788.0 | -624.8 | |
| 0.00 | 1.30 | 0.00 | 0.73 | -16.25 | 355.06 | 26.62 | 248.40 | 0.4646 | -776.0 | -588.5 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -17.08 | 354.87 | 26.43 | 246.58 | 0.4656 | -411.0 | -485.1 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -14.65 | 353.40 | 24.96 | 250.93 | 0.4339 | -590.0 | -475.2 | |
| 0.00 | 1.13 | 0.00 | 0.61 | -13.92 | 352.17 | 23.73 | 251.92 | 0.4127 | -607.0 | -487.2 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -11.39 | 351.82 | 23.39 | 257.91 | 0.3997 | -593.0 | -494.1 | |
| 0.00 | 1.13 | 0.00 | 0.61 | -12.41 | 351.75 | 23.31 | 255.35 | 0.4012 | -744.0 | -560.1 | |
| 0.00 | 0.52 | 0.00 | 0.28 | -13.05 | 351.48 | 23.04 | 253.64 | 0.3991 | -760.0 | -621.7 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -14.52 | 351.63 | 23.19 | 250.18 | 0.4070 | -741.0 | -576.6 | |
| 0.00 | 1.13 | 0.00 | 0.61 | -12.77 | 351.15 | 22.72 | 254.18 | 0.3932 | -819.0 | -691.9 | |
| 0.00 | 1.48 | 0.00 | 0.80 | -16.11 | 350.47 | 22.04 | 245.54 | 0.3977 | -770.0 | -578.4 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -9.24 | 349.86 | 21.43 | 262.99 | 0.3649 | -800.0 | -725.2 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -13.04 | 346.86 | 18.43 | 250.64 | 0.3279 | -846.0 | -641.1 | |
| 0.00 | 2.34 | 0.00 | 1.23 | -13.28 | 346.78 | 18.35 | 249.86 | 0.3278 | -842.0 | -771.6 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -13.08 | 346.61 | 18.17 | 250.31 | 0.3241 | -1040.0 | -849.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
