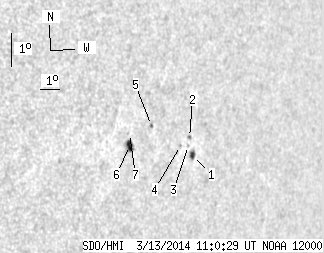

SDO HMI 2014-03-13 11:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.86 | 15.12 | 5.65 | 12.57 | -9.55 | 22.42 | 53.99 | 263.41 | 0.8049 | -103.2 | 37.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-13 11:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.34 | 3.65 | 2.03 | 3.16 | -9.69 | 24.13 | 55.70 | 263.17 | 0.8223 | 562.8 | 430.0 | |
| 0.00 | 1.48 | 0.00 | 1.27 | -9.18 | 23.85 | 55.41 | 263.81 | 0.8197 | 442.0 | 400.9 | |
| 0.00 | 0.87 | 0.00 | 0.75 | -9.42 | 23.85 | 55.42 | 263.51 | 0.8196 | 346.0 | 386.6 | |
| 0.00 | 0.96 | 0.00 | 0.81 | -9.46 | 23.43 | 55.00 | 263.48 | 0.8155 | 448.0 | 399.8 | |
| 0.00 | 1.39 | 0.00 | 1.14 | -9.02 | 21.83 | 53.39 | 264.10 | 0.7993 | -254.0 | -263.7 | |
| 4.52 | 6.51 | 3.62 | 5.23 | -9.72 | 20.87 | 52.44 | 263.26 | 0.7890 | -706.5 | -582.5 | |
| 0.00 | 0.26 | 0.00 | 0.21 | -9.36 | 20.79 | 52.36 | 263.72 | 0.7883 | -666.0 | -534.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
