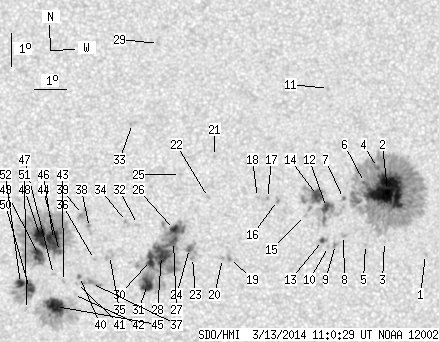

SDO HMI 2014-03-13 11:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 215.24 | 1030.50 | 109.53 | 523.94 | -18.64 | 324.48 | -3.96 | 165.36 | 0.2220 | 30.1 | 18.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-13 11:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.39 | 0.00 | 0.70 | -19.47 | 330.93 | 2.50 | 190.92 | 0.2178 | -936.0 | -732.2 | |
| 71.20 | 399.93 | 35.86 | 201.48 | -17.53 | 329.72 | 1.28 | 186.78 | 0.1817 | 1371.0 | 449.6 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -19.08 | 329.63 | 1.20 | 185.48 | 0.2080 | 736.0 | 587.0 | |
| 1.39 | -2.00 | 0.70 | -2.00 | -16.84 | 329.40 | 0.97 | 185.51 | 0.1692 | 852.8 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -19.17 | 329.03 | 0.60 | 182.72 | 0.2088 | 784.0 | 623.9 | |
| 0.78 | -2.00 | 0.39 | -2.00 | -17.29 | 329.00 | 0.56 | 183.07 | 0.1765 | 751.4 | 999999 | |
| 0.52 | 1.74 | 0.26 | 0.88 | -17.77 | 328.34 | -0.09 | 179.52 | 0.1846 | 954.2 | 744.1 | |
| 0.00 | 2.52 | 0.00 | 1.27 | -18.90 | 328.34 | -0.09 | 179.56 | 0.2039 | 661.0 | 476.0 | |
| 0.00 | 2.69 | 0.00 | 1.36 | -19.17 | 328.09 | -0.35 | 178.42 | 0.2087 | -891.0 | -687.2 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -19.23 | 327.87 | -0.57 | 177.43 | 0.2098 | -858.0 | -654.4 | |
| 0.00 | 1.48 | 0.00 | 0.74 | -14.45 | 327.89 | -0.55 | 175.81 | 0.1274 | 873.0 | 744.2 | |
| 5.90 | 64.60 | 2.98 | 32.58 | -18.05 | 327.81 | -0.63 | 176.85 | 0.1895 | 1115.6 | 654.5 | |
| 1.65 | 3.47 | 0.84 | 1.76 | -19.05 | 327.68 | -0.76 | 176.53 | 0.2069 | -961.8 | -759.5 | |
| 9.55 | -12.00 | 4.81 | -12.00 | -17.68 | 327.53 | -0.90 | 175.28 | 0.1836 | 1202.1 | 999999 | |
| 0.00 | 1.48 | 0.00 | 0.75 | -18.29 | 327.15 | -1.29 | 173.69 | 0.1946 | 671.0 | 468.9 | |
| 0.00 | 2.08 | 0.00 | 1.05 | -17.83 | 326.28 | -2.16 | 169.02 | 0.1890 | 965.0 | 943.1 | |
| 0.00 | 1.65 | 0.00 | 0.83 | -17.76 | 325.96 | -2.47 | 167.40 | 0.1891 | 1169.0 | 878.1 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -17.73 | 325.65 | -2.78 | 165.83 | 0.1898 | 942.0 | 768.2 | |
| 0.00 | 2.78 | 0.00 | 1.41 | -19.58 | 324.73 | -3.70 | 164.19 | 0.2243 | 1122.0 | 892.2 | |
| 0.00 | 2.00 | 0.00 | 1.02 | -19.58 | 324.51 | -3.92 | 163.29 | 0.2253 | 797.0 | 609.7 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -16.48 | 324.33 | -4.10 | 157.03 | 0.1765 | 858.0 | 649.2 | |
| 0.00 | 1.48 | 0.00 | 0.75 | -17.72 | 324.12 | -4.32 | 158.61 | 0.1976 | -1023.0 | -723.9 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -19.54 | 323.56 | -4.87 | 159.51 | 0.2298 | -582.0 | -662.0 | |
| 2.08 | 5.12 | 1.06 | 2.60 | -19.26 | 323.47 | -4.96 | 158.72 | 0.2260 | -1105.3 | -811.0 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -17.01 | 323.26 | -5.18 | 153.25 | 0.1925 | 853.0 | 711.2 | |
| 5.21 | 161.07 | 2.64 | 82.11 | -18.68 | 323.02 | -5.42 | 155.88 | 0.2198 | 563.2 | -341.8 | |
| 4.08 | -26.00 | 2.07 | -26.00 | -19.04 | 322.97 | -5.46 | 156.41 | 0.2258 | -1120.6 | 999999 | |
| 17.28 | -26.00 | 8.80 | -26.00 | -19.46 | 322.58 | -5.86 | 155.72 | 0.2350 | -1228.7 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.00 | -13.06 | 322.68 | -5.75 | 136.54 | 0.1426 | 912.0 | 678.9 | |
| 7.90 | -26.00 | 4.03 | -26.00 | -19.61 | 322.22 | -6.21 | 154.72 | 0.2398 | -1030.3 | 999999 | |
| 11.72 | -26.00 | 6.00 | -26.00 | -20.34 | 322.10 | -6.34 | 155.62 | 0.2518 | 935.6 | 999999 | |
| 0.00 | 1.74 | 0.00 | 0.88 | -18.51 | 321.86 | -6.58 | 151.14 | 0.2261 | 531.0 | 515.2 | |
| 0.00 | 2.34 | 0.00 | 1.18 | -15.45 | 321.81 | -6.62 | 142.44 | 0.1832 | 813.0 | 707.8 | |
| 0.00 | 1.91 | 0.00 | 0.97 | -18.41 | 321.51 | -6.92 | 149.68 | 0.2276 | 773.0 | 704.0 | |
| 0.00 | 6.08 | 0.00 | 3.11 | -19.44 | 320.93 | -7.51 | 149.97 | 0.2474 | -439.0 | -754.9 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -19.55 | 320.44 | -7.99 | 148.67 | 0.2532 | -987.0 | -812.8 | |
| 0.00 | 8.34 | 0.00 | 4.28 | -20.28 | 320.31 | -8.13 | 149.79 | 0.2648 | -777.0 | -826.7 | |
| 0.00 | 5.56 | 0.00 | 2.84 | -18.58 | 320.33 | -8.10 | 146.07 | 0.2405 | -778.0 | -738.1 | |
| 0.00 | 6.95 | 0.00 | 3.54 | -18.18 | 320.13 | -8.31 | 144.43 | 0.2370 | -1081.0 | -969.1 | |
| 0.61 | 1.56 | 0.31 | 0.80 | -20.06 | 319.93 | -8.50 | 148.22 | 0.2648 | -1150.3 | -1002.5 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -20.27 | 319.83 | -8.61 | 148.35 | 0.2688 | -835.0 | -678.6 | |
| 0.00 | 0.35 | 0.00 | 0.18 | -20.61 | 319.71 | -8.72 | 148.70 | 0.2745 | -406.0 | -416.8 | |
| 0.00 | 1.56 | 0.00 | 0.80 | -20.20 | 319.41 | -9.02 | 147.01 | 0.2715 | -833.0 | -710.6 | |
| 1.04 | 199.10 | 0.53 | 102.06 | -19.29 | 319.34 | -9.10 | 144.74 | 0.2597 | -931.8 | -489.7 | |
| 21.62 | 87.26 | 11.17 | 45.11 | -20.97 | 319.11 | -9.33 | 147.73 | 0.2848 | -1157.9 | -299.3 | |
| 14.85 | -44.00 | 7.61 | -44.00 | -18.92 | 319.17 | -9.27 | 143.37 | 0.2565 | -1398.8 | 999999 | |
| 0.00 | 1.65 | 0.00 | 0.85 | -19.98 | 319.10 | -9.33 | 145.67 | 0.2714 | -797.0 | -557.0 | |
| 15.37 | -44.00 | 7.88 | -44.00 | -18.82 | 318.76 | -9.68 | 141.95 | 0.2593 | -1236.0 | 999999 | |
| 9.81 | -44.00 | 5.04 | -44.00 | -19.36 | 318.66 | -9.77 | 143.02 | 0.2674 | -1034.1 | 999999 | |
| 7.64 | 37.94 | 3.95 | 19.62 | -20.40 | 318.30 | -10.13 | 144.41 | 0.2845 | -1112.1 | -347.4 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -21.04 | 318.16 | -10.27 | 145.40 | 0.2944 | 439.0 | 464.9 | |
| 5.04 | -50.00 | 2.60 | -50.00 | -20.24 | 318.02 | -10.41 | 143.33 | 0.2852 | -914.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
