SDO HMI 2014-03-13 12:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 112.43 | 426.04 | 79.23 | 299.45 | 5.57 | 11.37 | 43.48 | 285.30 | 0.7119 | 238.2 | 128.1 | |
|
previous
or next observation for the same group /

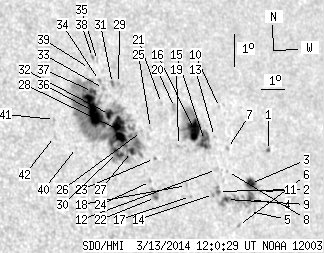

back to the solar disc SDO HMI 2014-03-13 12:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.78 | 1.91 | 0.61 | 1.48 | 5.56 | 16.76 | 48.88 | 283.35 | 0.7729 | -610.1 | -447.4 | |
| 0.00 | 2.08 | 0.00 | 1.59 | 4.27 | 16.31 | 48.43 | 281.85 | 0.7646 | 174.0 | 107.4 | |
| 5.82 | 41.41 | 4.41 | 31.15 | 4.46 | 15.84 | 47.95 | 282.25 | 0.7599 | -687.9 | -576.7 | |
| 2.17 | -3.00 | 1.64 | -3.00 | 3.97 | 15.75 | 47.86 | 281.64 | 0.7576 | -722.7 | 999999 | |
| 0.00 | 1.65 | 0.00 | 1.24 | 3.60 | 15.72 | 47.84 | 281.18 | 0.7564 | -393.0 | -347.5 | |
| 0.00 | 1.74 | 0.00 | 1.29 | 3.13 | 15.20 | 47.31 | 280.72 | 0.7493 | -406.0 | -464.4 | |
| 0.00 | 1.65 | 0.00 | 1.24 | 5.44 | 14.91 | 47.02 | 283.81 | 0.7523 | -467.0 | -383.8 | |
| 0.00 | 0.96 | 0.00 | 0.71 | 4.74 | 14.84 | 46.95 | 282.92 | 0.7495 | -632.0 | -470.5 | |
| 1.56 | -3.00 | 1.16 | -3.00 | 3.88 | 14.72 | 46.84 | 281.83 | 0.7459 | -793.6 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.39 | 6.67 | 14.70 | 46.81 | 285.46 | 0.7537 | -559.0 | -491.8 | |
| 0.69 | 3.56 | 0.51 | 2.62 | 4.09 | 14.39 | 46.50 | 282.21 | 0.7427 | -839.9 | -753.2 | |
| 0.00 | 2.26 | 0.00 | 1.67 | 4.75 | 14.36 | 46.47 | 283.09 | 0.7442 | -705.0 | -636.1 | |
| 0.00 | 0.87 | 0.00 | 0.64 | 5.76 | 14.37 | 46.49 | 284.40 | 0.7473 | -292.0 | -228.2 | |
| 0.00 | 1.48 | 0.00 | 1.08 | 3.98 | 14.16 | 46.28 | 282.14 | 0.7398 | -819.0 | -728.9 | |
| 9.46 | 63.46 | 6.96 | 46.40 | 5.60 | 13.92 | 46.03 | 284.34 | 0.7417 | -621.7 | -450.5 | |
| 17.80 | -15.00 | 13.01 | -15.00 | 5.89 | 13.52 | 45.63 | 284.88 | 0.7381 | -861.6 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.69 | 3.82 | 13.16 | 45.28 | 282.26 | 0.7278 | -749.0 | -654.8 | |
| 0.00 | 1.22 | 0.00 | 0.87 | 4.15 | 13.02 | 45.13 | 282.73 | 0.7270 | -577.0 | -549.8 | |
| 0.00 | 1.04 | 0.00 | 0.75 | 5.34 | 12.78 | 44.89 | 284.41 | 0.7279 | 405.0 | 343.8 | |
| 0.00 | 3.65 | 0.00 | 2.64 | 6.50 | 12.73 | 44.85 | 285.96 | 0.7311 | -647.0 | -592.0 | |
| 0.00 | 0.87 | 0.00 | 0.62 | 6.57 | 12.19 | 44.30 | 286.26 | 0.7252 | -612.0 | -585.9 | |
| 0.78 | 6.34 | 0.55 | 4.44 | 3.66 | 11.68 | 43.79 | 282.53 | 0.7098 | 705.2 | 613.2 | |
| 0.00 | 1.04 | 0.00 | 0.73 | 4.85 | 11.73 | 43.84 | 284.13 | 0.7141 | 231.0 | 271.4 | |
| 0.00 | 0.69 | 0.00 | 0.49 | 4.13 | 11.51 | 43.62 | 283.23 | 0.7092 | 469.0 | 466.9 | |
| 0.00 | 0.52 | 0.00 | 0.37 | 5.76 | 11.64 | 43.76 | 285.39 | 0.7161 | 114.0 | 109.0 | |
| 0.00 | 1.04 | 0.00 | 0.73 | 5.63 | 11.26 | 43.37 | 285.37 | 0.7111 | 247.0 | 195.3 | |
| 2.60 | 272.44 | 1.81 | 186.91 | 4.98 | 10.79 | 42.90 | 284.66 | 0.7033 | 519.3 | 411.8 | |
| 25.09 | -27.00 | 17.35 | -27.00 | 5.58 | 10.35 | 42.46 | 285.66 | 0.7002 | 890.7 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.79 | 7.03 | 10.46 | 42.57 | 287.59 | 0.7067 | -252.0 | -203.4 | |
| 5.47 | -27.00 | 3.76 | -27.00 | 4.90 | 10.21 | 42.32 | 284.77 | 0.6961 | 834.8 | 999999 | |
| 0.00 | 2.26 | 0.00 | 1.57 | 7.01 | 10.21 | 42.33 | 287.67 | 0.7037 | 451.0 | 333.3 | |
| 4.78 | -27.00 | 3.29 | -27.00 | 6.04 | 9.99 | 42.10 | 286.44 | 0.6975 | 852.4 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.90 | 6.82 | 9.83 | 41.94 | 287.58 | 0.6985 | 248.0 | 155.8 | |
| 0.00 | 1.56 | 0.00 | 1.08 | 7.06 | 9.69 | 41.80 | 287.96 | 0.6978 | 468.0 | 365.9 | |
| 0.00 | 1.22 | 0.00 | 0.84 | 7.67 | 9.68 | 41.80 | 288.80 | 0.7001 | 504.0 | 409.6 | |
| 32.56 | -27.00 | 22.21 | -27.00 | 6.08 | 9.35 | 41.46 | 286.76 | 0.6899 | 1078.0 | 999999 | |
| 2.87 | -27.00 | 1.96 | -27.00 | 6.69 | 9.37 | 41.48 | 287.60 | 0.6925 | 568.7 | 999999 | |
| 0.00 | 1.56 | 0.00 | 1.08 | 7.75 | 9.49 | 41.60 | 288.99 | 0.6981 | 518.0 | 493.6 | |
| 0.00 | 0.87 | 0.00 | 0.60 | 7.39 | 9.33 | 41.44 | 288.58 | 0.6948 | 621.0 | 531.1 | |
| 0.00 | 0.69 | 0.00 | 0.47 | 4.92 | 8.57 | 40.68 | 285.45 | 0.6762 | 632.0 | 564.6 | |
| 0.00 | 1.13 | 0.00 | 0.75 | 5.70 | 7.77 | 39.88 | 286.92 | 0.6692 | 764.0 | 669.8 | |
| 0.00 | 0.96 | 0.00 | 0.63 | 5.18 | 7.72 | 39.84 | 286.19 | 0.6667 | 499.0 | 448.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
