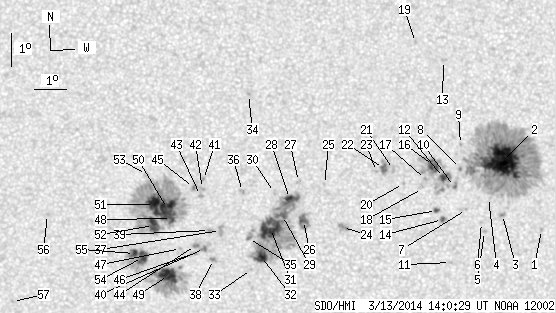

SDO HMI 2014-03-13 14:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 221.08 | 1018.58 | 112.36 | 516.94 | -18.62 | 324.56 | -2.22 | 172.46 | 0.2163 | -60.7 | 46.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-13 14:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.39 | 0.00 | 0.71 | -19.59 | 330.99 | 4.21 | 197.81 | 0.2270 | -866.0 | -597.7 | |
| 67.44 | 392.50 | 34.00 | 197.89 | -17.50 | 329.72 | 2.94 | 195.25 | 0.1866 | 1353.3 | 461.3 | |
| 0.00 | 2.52 | 0.00 | 1.28 | -19.14 | 329.75 | 2.96 | 193.25 | 0.2139 | 743.0 | 613.0 | |
| 0.00 | 0.26 | 0.00 | 0.13 | -18.62 | 329.30 | 2.51 | 191.83 | 0.2037 | 148.0 | 251.0 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -19.66 | 329.19 | 2.40 | 190.35 | 0.2207 | 953.0 | 698.3 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -19.38 | 329.09 | 2.30 | 190.16 | 0.2158 | 827.0 | 564.1 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -18.99 | 328.61 | 1.82 | 188.37 | 0.2078 | 760.0 | 622.9 | |
| 0.00 | 1.22 | 0.00 | 0.61 | -17.75 | 328.41 | 1.63 | 188.38 | 0.1862 | 1014.0 | 871.8 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -17.02 | 328.41 | 1.62 | 188.99 | 0.1738 | 974.0 | 786.2 | |
| 0.35 | 3.12 | 0.18 | 1.58 | -18.29 | 328.23 | 1.44 | 187.07 | 0.1951 | 859.5 | 727.4 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -20.61 | 328.12 | 1.33 | 185.35 | 0.2343 | 786.0 | 616.4 | |
| 3.82 | 52.08 | 1.93 | 26.26 | -18.02 | 327.88 | 1.10 | 185.52 | 0.1898 | 1150.9 | 676.8 | |
| 0.00 | 2.08 | 0.00 | 1.04 | -14.49 | 327.87 | 1.08 | 188.17 | 0.1291 | 899.0 | 672.6 | |
| 1.22 | 2.34 | 0.62 | 1.19 | -19.30 | 327.86 | 1.07 | 184.80 | 0.2115 | -1001.6 | -892.8 | |
| 1.30 | 2.69 | 0.66 | 1.36 | -19.02 | 327.67 | 0.88 | 184.05 | 0.2066 | -828.1 | -608.9 | |
| 8.33 | -12.00 | 4.20 | -12.00 | -17.66 | 327.57 | 0.78 | 184.09 | 0.1831 | 1217.0 | 999999 | |
| 0.00 | 1.65 | 0.00 | 0.83 | -18.08 | 327.32 | 0.53 | 182.67 | 0.1901 | 753.0 | 606.8 | |
| 0.00 | 0.69 | 0.00 | 0.35 | -18.35 | 327.23 | 0.44 | 182.14 | 0.1947 | 676.0 | 615.6 | |
| 0.00 | 1.13 | 0.00 | 0.56 | -13.95 | 327.01 | 0.22 | 181.80 | 0.1184 | 932.0 | 747.6 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -18.20 | 326.63 | -0.16 | 179.21 | 0.1920 | 876.0 | 676.7 | |
| 0.00 | 2.52 | 0.00 | 1.27 | -17.78 | 326.32 | -0.47 | 177.57 | 0.1848 | 989.0 | 696.3 | |
| 2.52 | 8.94 | 1.27 | 4.50 | -17.74 | 326.01 | -0.78 | 175.94 | 0.1846 | 1141.0 | 796.3 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -17.83 | 325.79 | -1.00 | 174.85 | 0.1864 | 864.0 | 713.2 | |
| 0.00 | 5.73 | 0.00 | 2.91 | -19.53 | 324.70 | -2.09 | 170.88 | 0.2177 | 1047.0 | 861.0 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -18.22 | 324.15 | -2.64 | 167.15 | 0.1974 | -811.0 | -606.8 | |
| 4.17 | 13.54 | 2.11 | 6.87 | -19.31 | 323.47 | -3.32 | 165.44 | 0.2182 | -1013.2 | -709.0 | |
| 0.00 | 2.34 | 0.00 | 1.18 | -18.12 | 323.34 | -3.45 | 163.25 | 0.1993 | 617.0 | 547.3 | |
| 3.73 | 165.70 | 1.89 | 84.27 | -18.64 | 323.04 | -3.74 | 162.71 | 0.2092 | 760.7 | -336.4 | |
| 4.95 | -28.00 | 2.51 | -28.00 | -19.15 | 322.81 | -3.98 | 162.48 | 0.2188 | -1161.0 | 999999 | |
| 0.00 | 1.91 | 0.00 | 0.97 | -18.45 | 322.58 | -4.21 | 160.40 | 0.2087 | 476.0 | 318.7 | |
| 26.21 | -28.00 | 13.33 | -28.00 | -19.54 | 322.42 | -4.37 | 161.49 | 0.2271 | -1178.3 | 999999 | |
| 9.72 | -28.00 | 4.96 | -28.00 | -20.40 | 322.11 | -4.68 | 161.53 | 0.2425 | 944.3 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -20.79 | 321.78 | -5.01 | 160.89 | 0.2506 | 687.0 | 468.9 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -15.48 | 321.84 | -4.95 | 150.13 | 0.1677 | 955.0 | 788.3 | |
| 0.61 | 5.12 | 0.31 | 2.61 | -19.84 | 321.71 | -5.08 | 159.24 | 0.2359 | 779.3 | -28.9 | |
| 0.00 | 2.26 | 0.00 | 1.14 | -18.41 | 321.57 | -5.22 | 156.14 | 0.2144 | 880.0 | 723.6 | |
| 0.00 | 5.38 | 0.00 | 2.74 | -19.59 | 320.83 | -5.96 | 155.59 | 0.2377 | -1058.0 | -867.2 | |
| 0.00 | 2.78 | 0.00 | 1.42 | -20.47 | 320.57 | -6.22 | 156.25 | 0.2530 | -1019.0 | -779.6 | |
| 0.00 | 1.48 | 0.00 | 0.75 | -19.58 | 320.48 | -6.31 | 154.34 | 0.2401 | -1127.0 | -969.6 | |
| 0.00 | 2.86 | 0.00 | 1.46 | -20.13 | 320.30 | -6.49 | 154.73 | 0.2497 | -1069.0 | -907.4 | |
| 0.00 | 1.39 | 0.00 | 0.70 | -18.03 | 320.35 | -6.44 | 150.57 | 0.2179 | -965.0 | -788.9 | |
| 0.00 | 2.34 | 0.00 | 1.19 | -18.30 | 320.31 | -6.48 | 151.04 | 0.2222 | -822.0 | -766.9 | |
| 0.00 | 2.26 | 0.00 | 1.15 | -18.51 | 320.24 | -6.55 | 151.26 | 0.2259 | -925.0 | -735.6 | |
| 0.00 | 2.78 | 0.00 | 1.42 | -20.03 | 320.02 | -6.77 | 153.60 | 0.2503 | -1115.0 | -1009.5 | |
| 0.00 | 1.82 | 0.00 | 0.93 | -18.27 | 320.03 | -6.76 | 149.93 | 0.2241 | -1058.0 | -1014.0 | |
| 0.00 | 3.30 | 0.00 | 1.69 | -20.28 | 319.94 | -6.85 | 153.81 | 0.2545 | -820.0 | -650.7 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -20.12 | 319.53 | -7.26 | 152.18 | 0.2553 | -903.0 | -745.8 | |
| 4.17 | 197.46 | 2.13 | 100.78 | -19.20 | 319.29 | -7.50 | 149.49 | 0.2439 | -987.6 | -439.4 | |
| 18.05 | 72.74 | 9.29 | 37.44 | -20.94 | 319.11 | -7.68 | 152.40 | 0.2707 | -1173.4 | -365.7 | |
| 22.22 | -48.00 | 11.34 | -48.00 | -18.89 | 319.18 | -7.61 | 148.43 | 0.2405 | -1320.7 | 999999 | |
| 19.27 | -48.00 | 9.83 | -48.00 | -18.76 | 318.77 | -8.02 | 146.81 | 0.2423 | -1224.3 | 999999 | |
| 10.59 | -48.00 | 5.42 | -48.00 | -19.40 | 318.71 | -8.08 | 148.07 | 0.2519 | -1012.3 | 999999 | |
| 0.00 | 3.47 | 0.00 | 1.77 | -17.85 | 318.56 | -8.23 | 143.82 | 0.2318 | -566.0 | -370.5 | |
| 8.42 | 32.98 | 4.33 | 16.97 | -20.37 | 318.30 | -8.49 | 148.91 | 0.2691 | -1107.9 | -470.7 | |
| 3.99 | -54.00 | 2.05 | -54.00 | -20.24 | 318.05 | -8.74 | 147.92 | 0.2695 | -990.3 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.63 | -18.99 | 315.34 | -11.45 | 137.80 | 0.2807 | -876.0 | -705.3 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -21.62 | 313.99 | -12.80 | 140.76 | 0.3271 | -735.0 | -603.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
